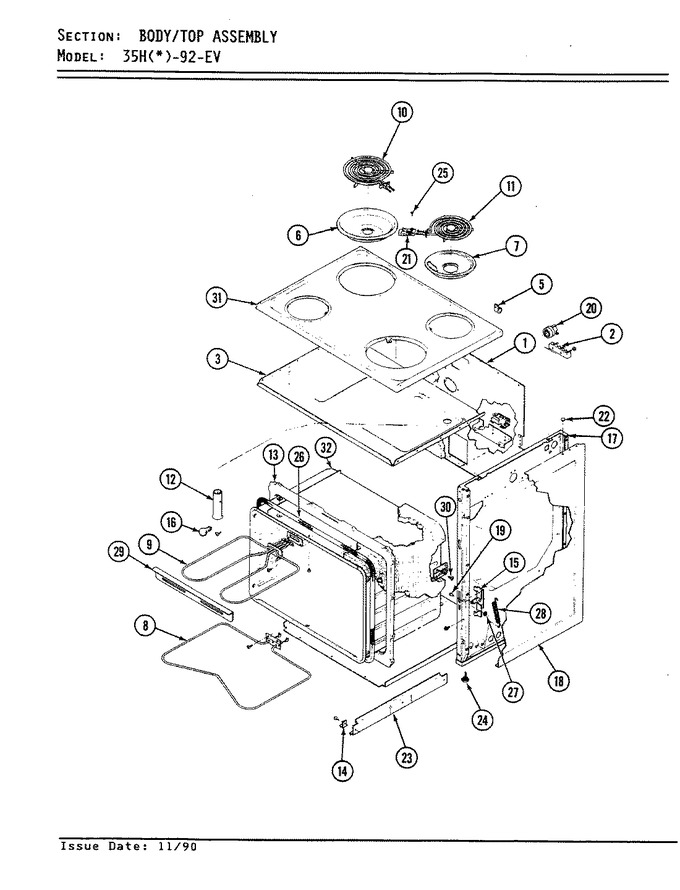

01 - Body
02 - Control Panel
03 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F149-80 | Back, Main | 01 |
|
- | ||||
| 2 | WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) | 01 |
|
Immediately | $ 6.47 | |||
| 2 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 01 |
|
Immediately | $ 31.65 | |||
| 3 | 4011F128-23 | Bottom, Burner Box | 01 |
|
- | ||||
| 3 | 4012F022-80 | Front, Burner Box Bottom | 01 |
|
- | ||||
| 4 | 3802F010-80 | Brace, Back-right | 01 |
|
- | ||||
| 4 | 8003P011-60 | Spacer, Main Top | 01 |
|
- | ||||
| 4 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 22 |
|
Immediately | $ 4.69 | |||
| 4 | 3801F198-51 | Bracket, Tie-down | 01 |
|
- | ||||
| 4 | 4006W056-45 | Box Assy, Vent | 01 |
|
- | ||||
| 4 | 3802F008-80 | Brace, Back-left | 01 |
|
- | ||||
| 4 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 22 |
|
$ 26.33 | ||||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 4 | 3802F076-51 | Brace, Inner Side | 01 |
|
- | ||||
| 4 | 3802F029-80 | Brace, Main Top | 01 |
|
- | ||||
| 5 | 7111P002-60 | Clamp, Wire 3/4 | 01 |
|
- | ||||
| 6 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P014-60) | 01 |
|
Immediately | $ 15.56 | |||
| 7 | WPW10196406 | Bowl, Drip (6``)(w/hole-chr) (Replaces: 7725P015-60) | 01 |
|
Immediately | $ 12.05 | |||
| 8 | WPY04000041 | Element, Bake (Replaces: 7406P067-60) | 21 |
|
$ 133.20 | ||||
| 8 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 01 |
|
$ 133.20 | ||||
| 9 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 01 |
|
$ 160.58 | ||||
| 9 | WPY04000048 | Element, Broil (Replaces: 7406P076-60) | 26 |
|
$ 160.58 | ||||
| 10 | WPY04000035 | Element (8``) (Replaces: 7406P040-60) | 01 |
|
$ 160.60 | ||||
| 11 | WPY04000036 | Element (6``) (Replaces: 7406P038-60) | 01 |
|
$ 88.70 | ||||
| 12 | 8026P003-60 | Tube, Oven Vent | 01 |
|
- | ||||
| 13 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 14 | 8016P005-60 | Glide, Front | 01 |
|
- | ||||
| 14 | 8010P069-60 | Spacer, Hinge (main Top) | 01 |
|
$ 8.57 | ||||
| 14 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 15 | 3420A033-34 | Stop, Oven Door | 01 |
|
- | ||||
| 15 | 4001F016-19 | Housing, Lamp | 24 |
|
- | ||||
| 16 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 01 |
|
Immediately | $ 1.98 | |||
| 17 | 4009W053-80 | Lining, Inner Side | 01 |
|
- | ||||
| 17 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 01 |
|
Immediately | $ 52.04 | |||
| 17 | Y3401F02019 | Pan, Broil | 30 |
|
- | ||||
| 17 | 3413F002-23 | Insert, Broil Pan | 01 |
|
- | ||||
| 17 | Y3413F01619 | Insert, Broil Pan | 30 |
|
- | ||||
| 18 | 2618F073-71 | Panel, Side (wht)----na | 01 |
|
- | ||||
| 19 | 7113P002-60 | Pin, Hinge | 01 |
|
$ 9.05 | ||||
| 19 | 7801P030-60 | Rack, Oven | 01 |
|
$ 57.14 | ||||
| 20 | 7408P002-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 21 | 330031 | Block, Surface Unit (Replaces: 7401P014-60) | 01 |
|
Immediately | $ 14.48 | |||
| 21 | 7112P026-60 | Clip, Unit Block | 01 |
|
- | ||||
| 22 | 7107P017-60 | Rivet | 01 |
|
- | ||||
| 23 | 3406F027-51 | Runner, Outer | 01 |
|
- | ||||
| 24 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 24 | 7101P287-60 | Screw, Metal Grounding | 01 |
|
$ 12.03 | ||||
| 24 | Y7101P25460 | Leg, Leveling | 01 |
|
- | ||||
| 24 | WP4159193 | Screw (Replaces: 7118P004-60) | 01 |
|
$ 4.29 | ||||
| 24 | WP74004005 | Screw (Replaces: 7118P010-60) | 01 |
|
$ 6.95 | ||||
| 25 | WP4159193 | Screw, Ground (grn) (Replaces: 7101P027-60) | 01 |
|
$ 4.29 | ||||
| 26 | 3604F017-45 | Shield | 01 |
|
- | ||||
| 26 | 7212P002-60 | Seal, Oven | 01 |
|
- | ||||
| 27 | 7112P019-60 | Clip, Hinge Pin | 01 |
|
- | ||||
| 28 | WP7803P058-60 | Spring, Oven Door (Replaces: 7803P058-60) | 01 |
|
$ 16.55 | ||||
| 29 | 3807F176-15 | Support, Broil Element | 01 |
|
- | ||||
| 30 | 3807F205-45 | Support, Oven Rear | 01 |
|
- | ||||
| 31 | 2002W028-81 | Top, Main (white) | 01 |
|
- | ||||
| 32 | W10124350 | Not Required Part Or See Note | 01 |
|
- |
