SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

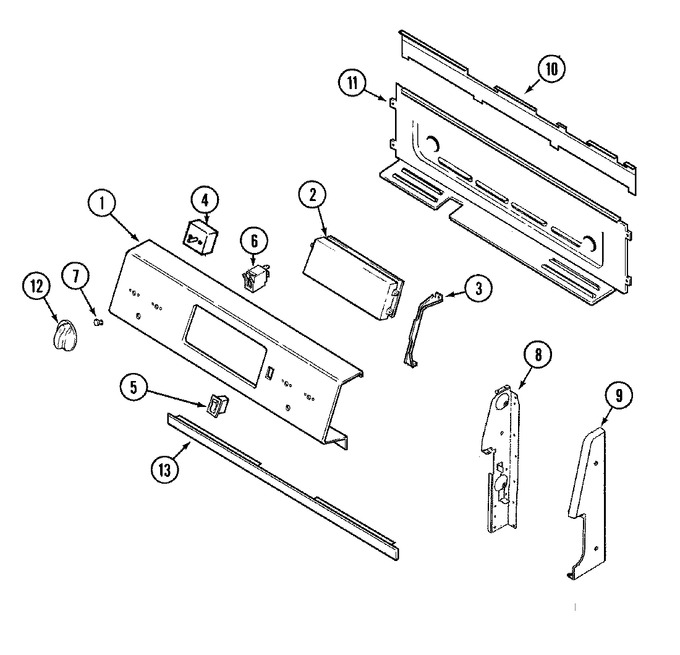

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005177 | Panel, Control (bsq) | 10 |
|
- | ||||
| 2 | 74005169 | Clock W/overlay (bsq) | 10 |
|
- | ||||
| 2 | WP59002061 | Screw (6abx3/8-sn) (Replaces: 74004288) | 10 |
|
$ 6.98 | ||||
| 3 | 74003627 | Bracket, Clock | 10 |
|
- | ||||
| 3 | 98008169 | Screw (8abx3/8) Bsq (Replaces: 74004985) | 10 |
|
- | ||||
| 4 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 4 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 4 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 5 | 74008765 | Switch, Rocker (bsq) (Replaces: 74004983) | 10 |
|
$ 79.50 | ||||
| 6 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 7 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 8 | 74005392 | Bracket, Control Panel (rt) | 10 |
|
- | ||||
| 8 | 74005393 | Bracket, Control Panel (lt) | 10 |
|
- | ||||
| 9 | 74004982 | Screw (6abx1/2 3/16) | 10 |
|
- | ||||
| 9 | 74004980 | End Cap, Cntrl Panel (lt-bsq) | 10 |
|
- | ||||
| 9 | 74004979 | End Cap, Cntrl Panel (rt-bsq) | 10 |
|
- | ||||
| 9 | WP74009541 | Screw (1/2``-bsq) (Replaces: 74004976) | 10 |
|
$ 6.26 | ||||
| 10 | 74004551 | Extension, Control Panel | 10 |
|
- | ||||
| 10 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 74006376 | Extension, Control Panel | 11 |
|
- | ||||
| 11 | 74004550 | Housing, Control Panel | 10 |
|
- | ||||
| 11 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 74005143 | Knob, Switch (bsq) | 10 |
|
- | ||||
| 13 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 13 | 74003374 | Shield, Sight | 10 |
|
- | ||||
| 14 | 74003468 | Harness, Sensor/lock | 10 |
|
- | ||||
| 14 | 5195D082-60 | Harness, Door Latch | 10 |
|
- | ||||
| 14 | 12001323 | Wire/terminal Kit | 10 |
|
- | ||||
| 15 | 74005214 | Manual, Use & Care | 10 |
|
- | ||||
| 15 | 74005576 | Insert, Cleaning Instructions | 10 |
|
- | ||||
| 15 | 74005475 | Guide, Cooking (trilingual) | 10 |
|
- | ||||
| 16 | 16010161 | Manual, Srvc Elec/gas Range | 10 |
|
- |
