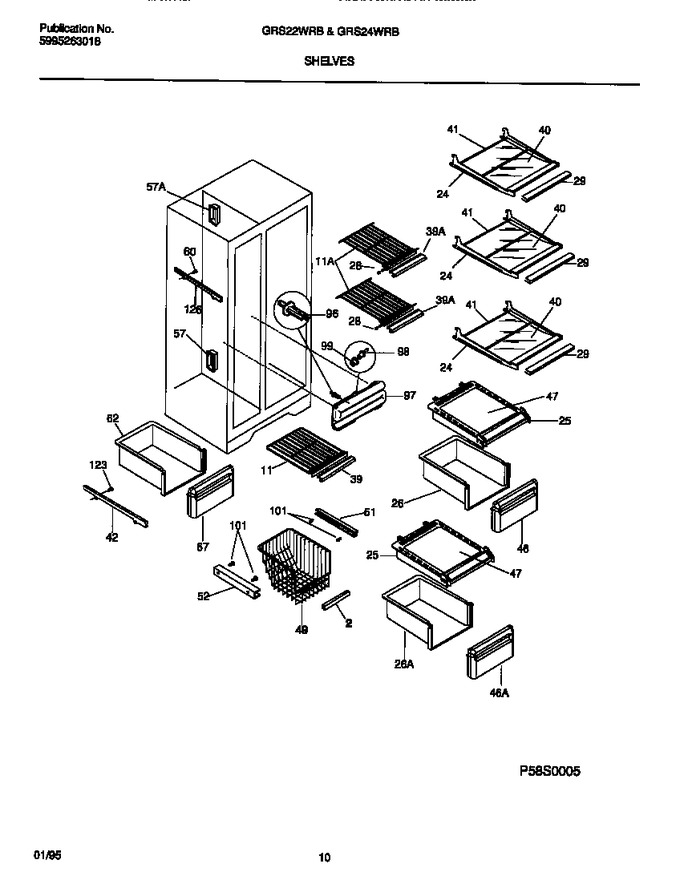

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303298147		Trim-basket				$ 60.38
11	5303296576		Shelf-freezer, Fixed Wire ,(2)		Appelez-nous	-
11	218298003		Shelf, Freezer, Sliding, Wire		Appelez-nous	-
24	215919139		Frame-refr Shelf, Cantilever				$ 94.03
26	5303289501		Pan-storage,lower				$ 164.85
26	5303289500		Pan-storage,upper				$ 174.74
28	08013638		Cap-protector		Appelez-nous	-
29	215919515		Trim, Refr Shelf, Front, (3)		Appelez-nous	-
39	5303298152		Trim, Frzr Shelf		Appelez-nous	-
39	5303298153		Trim, Frzr Shelf		Appelez-nous	-
40	5303300033		Glass-refr Shelf, Clear		Appelez-nous	-
41	215919815		Trim, Refr Shelf, Rear, (3)		Appelez-nous	-
46	215042005		Front, Storage Pan, Upper		Appelez-nous	-
46	215042004		Front, Storage Pan, Lower		Appelez-nous	-
49	5303296573		Basket-sliding		Appelez-nous	-
51	5303296575		Hanger-basket, Rh				$ 49.78
52	215162502		Hanger, Basket, Lh, With Spring				$ 101.35
57	5303289064		Ferrule-air		Appelez-nous	-
57	5303271653		Ferrule-inner				$ 20.27
60	5304455852		Screw, Hex Washer Head, 8-15(a) X 1   (Replaces: 5303207328)				$ 12.76
62	5303289517		Tray - Deli				$ 133.19
67	5303298203		Front-deli Tray		Appelez-nous	-
96	215192600		Support - Water Tank				$ 10.71
97	5303918258		Water Tank Assy, Includes Tank, Grommets, Connectors   (Replaces: 215230300)				$ 121.63
98	5308015614		Connector - Tube				$ 34.57
99	5300186057		Grommet-tank				$ 28.98
101	5304455650		Screw-basket Hanger, Hex Washer Head, 8ab X 3/4   (Replaces: 215005000)				$ 14.18
123	215005101		Screw-roller/hanger,8-10 X 7/16   (Replaces: 215005100)				$ 14.89
*48448	215339900		Clip, Cantilevr Shlf				$ 5.83
*48449	218159700		Spacer-frzr Shelf		Appelez-nous	-
126A	215205400		Rail-auger Bucket,lh				$ 64.00
126B	218232700		Rail-auger Bucket, Rh (not Illustrated)				$ 44.05
25A	218147701		Cover-storage Pan,upper & Lower				$ 123.56
25B	5303289586		Trim-storage Pan Cvr (not Illustrated)		Appelez-nous	-
42A	215002301		Hanger-pan / Tray, Lh				$ 65.82
42B	215002401		Hanger, Pan/tray, Rh (not Illustrated)				$ 85.84
47A	5303289387		Insert-pan Cover,glass,clear		Appelez-nous	-
47B	215530500		Insert-pan Cover,plastic,white		Appelez-nous	-
