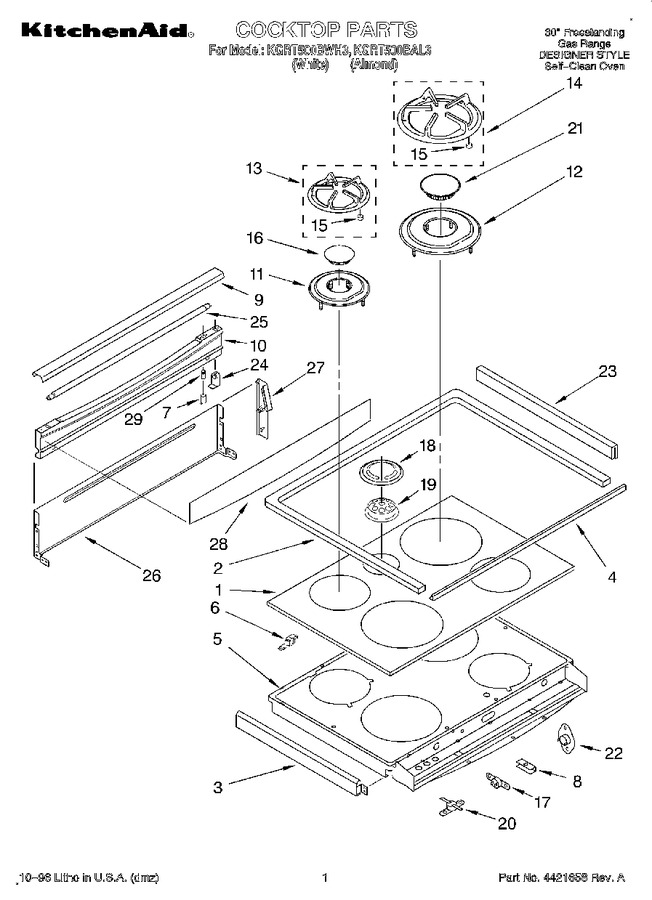

01 - Cooktop


02 - Cooktop Burner


03 - Control Panel


04 - Door And Drawer


05 - Oven Chassis


06 - Broiler And Oven Burner


07 - Rear Chassis, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9751034		Cooktop, Ceran (white)		Appelez-nous	-
1	9751340		Cooktop, Ceran (almond)		Appelez-nous	-
2	WP9780939		Gasket, Cooktop   (Replaces: 9780939)			Immediately	$ 60.83
3	9751275PT		Trim, Cooktop (almond (right))		Appelez-nous	-
3	9751276PW		(trim, Cooktop (left Hand)) (white)		Appelez-nous	-
3	9751276PT		Trim, Cooktop (left Hand) (almond)		Appelez-nous	-
3	9751275PW		Trim, Cooktop (white (right))		Appelez-nous	-
4	9752028		Gasket, Cooktop (almond)		Appelez-nous	-
4	9752029		Gasket, Cooktop (grey)		Appelez-nous	-
5	9751274		Support, Element		Appelez-nous	-
6	9780265		Screw (2)		Appelez-nous	-
6	9751629		Bracket, Pivot		Appelez-nous	-
7	9750866		Starter, Holder		Appelez-nous	-
8	9751871		Screw (4)		Appelez-nous	-
8	9750821		Support Clips (4)		Appelez-nous	-
9	9751633		Cover, Light (almond)		Appelez-nous	-
9	9751327		Cover, Light (white)		Appelez-nous	-
10	9751266GW		Backsplash (white)		Appelez-nous	-
10	9780265		Backsplash (screw (5))		Appelez-nous	-
10	9751266GT		Backsplash (almond)		Appelez-nous	-
11	4166262		Bezel, Small Lr-rf (nut, Zinc No.8-32)		Appelez-nous	-
11	3185816		Bezel, Small Lr-rf (almond Mdl.)		Appelez-nous	-
11	3185817		Bezel, Small Lr-rf (white Mdl.)		Appelez-nous	-
12	4166262		Bezel, Large Rr-lf (nut, Zinc No.8-32)		Appelez-nous	-
12	3185820		Bezel, Large Rr-lf (white Mdl.)		Appelez-nous	-
12	3185819		Bezel, Large Rr-lf (almond Mdl.)		Appelez-nous	-
13	3186673		Grates, Small (almond Mdl.)		Appelez-nous	-
13	3186674		Grates, Small (white Mdl.)		Appelez-nous	-
14	3186676		Grates, Large (almond Mdl.)		Appelez-nous	-
14	3186677		Grates, Large (white Mdl.)		Appelez-nous	-
15	814323		Pad, Grate (5)   (Replaces: 3186678)			Immediately	$ 10.28
16	3185795		Cap, Small (2) (almond Mdl.)		Appelez-nous	-
16	3185797		Cap, Small (2) (white Mdl.)		Appelez-nous	-
17	341196		Thermo-disc				$ 33.17
17	9780265		Screw (2)		Appelez-nous	-
18	9751271GT		Cap, Vent (almond Mdl.)		Appelez-nous	-
18	9751271GW		Cap, Vent (white)		Appelez-nous	-
19	9751366		Cap, Vent		Appelez-nous	-
20	WP9759944		Fuse, Bi-metal   (Replaces: 9751984)			Immediately	$ 121.57
21	3185792		Cap, Large (2) (almond Mdl.)		Appelez-nous	-
21	3185794		Cap, Large (2) (white Mdl.)		Appelez-nous	-
22	9752006		Thermostat, Fixed				$ 130.03
23	9752034		Seal, Rubber (2)		Appelez-nous	-
24	9750273		Receptacle, Lamp		Appelez-nous	-
25	WP95292		Light, Fluorescent   (Replaces: 422581)			Immediately	$ 121.45
26	9751664		Cover, Backsplash		Appelez-nous	-
26	3149333		Screw (5) No.10ab X 3/8				$ 5.33
27	9751267FT		(endcap, Backsplash (left Hand)) (almond)		Appelez-nous	-
27	9751268FW		Endcap, Backsplash (white (right))		Appelez-nous	-
27	9751268FT		Endcap, Backsplash (almond (right))		Appelez-nous	-
27	9751267FW		(endcap, Backsplash (left Hand)) (white)		Appelez-nous	-
28	9781154		Glass, Backsplash		Appelez-nous	-
29	9781118		Starter, Light		Appelez-nous	-
