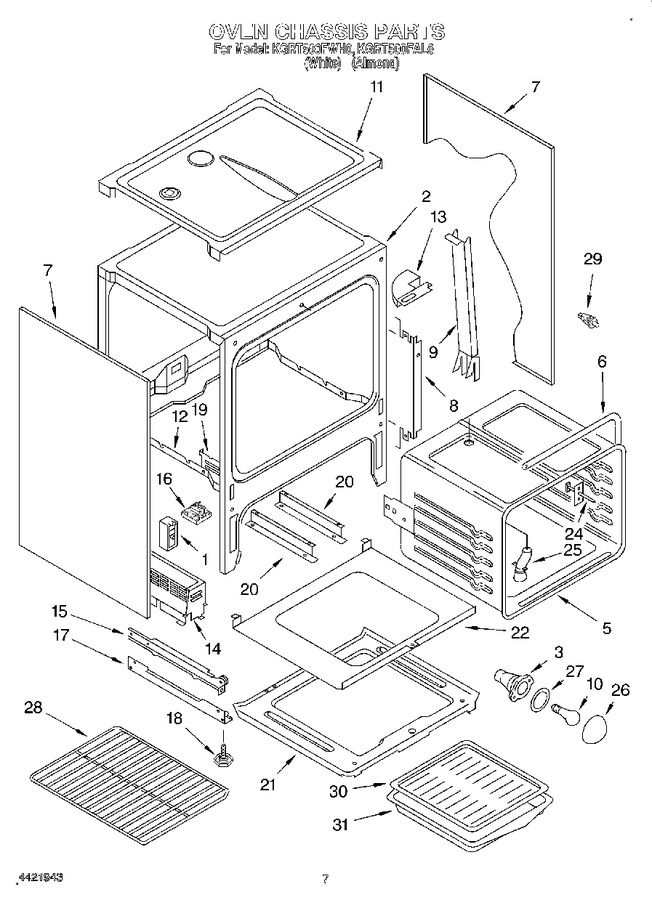

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9780269		Screw		Appelez-nous	-
1	WP4454392		Module, Spark   (Replaces: 4454392)				$ 290.32
2	4212002		Chassis, Front		Appelez-nous	-
3	W11594027		Socket, Light   (Replaces: 9781050)			Immediately	$ 78.31
5	9752652GM		Oven Liner		Appelez-nous	-
6	9750247		Gasket Oven		Appelez-nous	-
7	4211896		Oven , Side L Or R (white)		Appelez-nous	-
7	9780265		Oven , Side L Or R (screw (4) 10 X 3/8)		Appelez-nous	-
7	4211897		Oven , Side L Or R (almond)		Appelez-nous	-
8	9780664		Shield, Insulation		Appelez-nous	-
8	9780265		Screw (2)		Appelez-nous	-
9	9751789		Duct, Side Fan		Appelez-nous	-
9	9780265		Screw, (4)		Appelez-nous	-
10	40A15		Bulb, Oven   (Replaces: 4211947)			Immediately	$ 1.98
11	9752637		Burner Box		Appelez-nous	-
11	9780265		Screw, (8) 10 X 3/8		Appelez-nous	-
11	9780269		Screw, No.8-32 X 3/8		Appelez-nous	-
11	9780275		Screw, (2) 8 X 3/8		Appelez-nous	-
12	9780265		Screw (9) 10 X 3/8		Appelez-nous	-
12	9752735		Retainer, Insulation		Appelez-nous	-
13	9751653		Duct, Top		Appelez-nous	-
13	9780265		Screw (2)		Appelez-nous	-
14	9751060		Support, Fan		Appelez-nous	-
15	9750224		Rail, Drawer (right)		Appelez-nous	-
15	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
15	9750223		Drawer Rail, Left 10 X 3/8		Appelez-nous	-
16	9751020		Motor, Fan				$ 215.07
16	9751808		Screw, (3) No.8 X 1``		Appelez-nous	-
17	9750147		Bottom Rail (2)		Appelez-nous	-
17	9780265		Screw, (8) 10 X 3/8		Appelez-nous	-
18	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 7.07
19	9750149		Hinge, Door L Or R		Appelez-nous	-
19	9780270		Screw (2) 8 X 3/8		Appelez-nous	-
19	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
20	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
20	421771		Support Rail, Pan		Appelez-nous	-
21	9781025		Shield, Drawer		Appelez-nous	-
21	9780265		Screw, 10 X 3/8		Appelez-nous	-
22	9751641		Plate, Reflectance		Appelez-nous	-
22	9780265		Screw, 10 X 3/8		Appelez-nous	-
24	3148440		Sensor, Oven		Appelez-nous	-
24	9781509		Screw		Appelez-nous	-
25	9780265		Screw, 10 X 3/8		Appelez-nous	-
25	9751592		Vent Tube		Appelez-nous	-
26	WP9781049		Lens, Light   (Replaces: 9781049)			Immediately	$ 71.93
27	WP3184533		Gasket, Len`s   (Replaces: 3184533)			Immediately	$ 7.73
28	9750498		Rack, Standard (2)		Appelez-nous	-
29	9750897		Door Switch		Appelez-nous	-
30	4396923		Grill, Broiler   (Replaces: 4421424)			Immediately	$ 52.04
31	4396923		Pan, Broiler   (Replaces: 4211944)			Immediately	$ 52.04
