SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Oven/base


05 - Supplimental Information


06 - Top Assembly


07 - Wiring Information

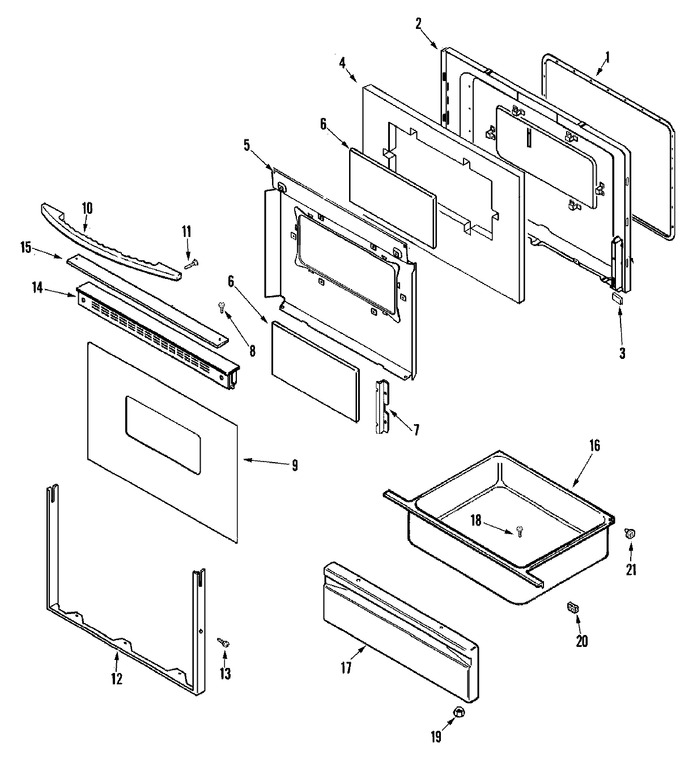

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
2	74003643		Nut, Snap (square-blk)	10			$ 8.02
2	74003244		Lining, Door	10	Appelez-nous	-
2	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
3	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
4	74001842		Insulation, Door	10	Appelez-nous	-
5	74001843		Baffle, Door	10	Appelez-nous	-
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
6	74003320		Glass, Inner	10			$ 86.35
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	74001844		Retainer, Glass	10	Appelez-nous	-
8	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
9	74006395		Glass, Outer Door (wht)	10	Appelez-nous	-
10	74006381		Handle, Door (wht)	10			$ 82.26
11	WP74006515		Screw W/washer (handle Mtg)   (Replaces: 74006635)	10			$ 7.29
11	74001521		Washer (1``)	10			$ 5.27
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	7706P310-60		Frame, Door (wht)	10	Appelez-nous	-
13	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
14	74003864		Trim, Top Door (wht)	10	Appelez-nous	-
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
15	7728P094-60		Insert, Door Trim (wht)	10			$ 82.40
16	71003042		Drawer, Storage	10	Appelez-nous	-
17	74003399		Panel, Drawer (wht)	10	Appelez-nous	-
18	WP7101P072-60		Screw   (Replaces: 7101P072-60)	10			$ 6.77
19	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
20	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
21	74005231		Shaft, Storage Drawer Roller	10			$ 9.23
21	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
21	74003566		Roller, Drawer	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
