01 - Body

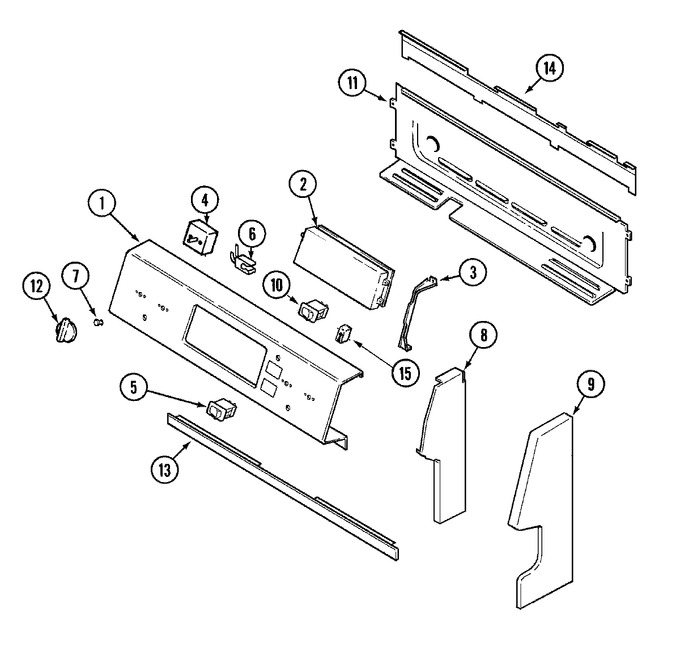

02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74007172 | Panel, Control (blk) | 10 |
|
- | ||||
| 2 | 74006188 | Clock W/overlay (blk) | 10 |
|
- | ||||
| 2 | WP7101P498-60 | Screw (6abx.25-zn) (Replaces: 74003357) | 10 |
|
$ 6.74 | ||||
| 3 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 3 | 74003627 | Bracket, Clock | 10 |
|
- | ||||
| 4 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 4 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 4 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 5 | 74003363 | Switch, Rocker (blk) | 10 |
|
- | ||||
| 6 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 7 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 8 | 74005392 | Bracket, Control Panel (rt) | 10 |
|
- | ||||
| 8 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 74005393 | Bracket, Control Panel (lt) | 10 |
|
- | ||||
| 9 | 74002432 | Screw (1 3/16``-blk) | 10 |
|
- | ||||
| 9 | 74003606 | End Cap, Control Pnl (lt-blk) | 10 |
|
- | ||||
| 9 | 74003605 | End Cap, Control Pnl (rt-blk) | 10 |
|
- | ||||
| 9 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 10 | 74003363 | Switch, Rocker (blk) | 10 |
|
- | ||||
| 11 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 74003372 | Housing, Control Panel | 10 |
|
- | ||||
| 12 | 74003612 | Knob (blk) | 10 |
|
$ 16.42 | ||||
| 13 | 74003374 | Shield, Sight | 10 |
|
- | ||||
| 13 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 74006376 | Extension, Control Panel | 10 |
|
- | ||||
| 14 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 71003194 | Light, Indicator (125v) | 10 |
|
- | ||||
| 16 | 74007176 | Harness, Top Warming Zone | 10 |
|
- | ||||
| 16 | 74007175 | Harness, Bkgd To Top | 10 |
|
- | ||||
| 16 | 74007177 | Harness, Bkgd To Warm Zone | 10 |
|
- | ||||
| 16 | 12001323 | Wire/terminal Kit | 10 |
|
- | ||||
| 16 | 74006792 | Harness, Door Lock | 10 |
|
- | ||||
| 16 | 74003468 | Harness, Sensor/lock | 10 |
|
- | ||||
| 17 | 74005907 | Manual, Use & Care | 10 |
|
- | ||||
| 18 | 16010161 | Manual, Srvc Elec/gas Range | 10 |
|
- | ||||
| 19 | 74005475 | Guide, Cooking (trilingual) | 10 |
|
- |
