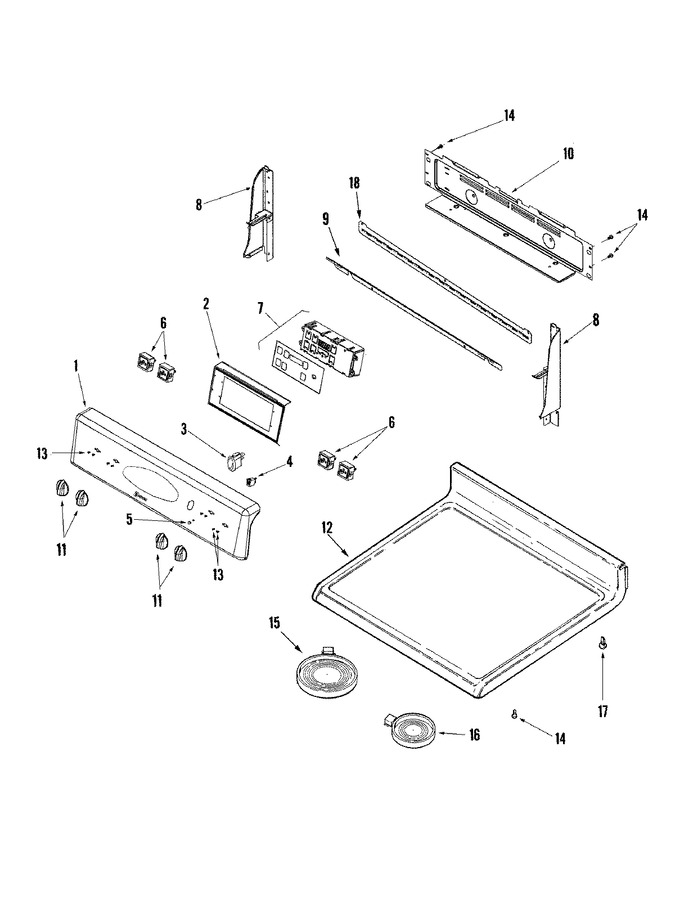

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009072 | Panel, Backguard (bsq) | 10 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | W10124350 | Not Required Part Or See Note Not Required-brckt On Panel | 10 |
|
- | ||||
| 2 | 74009052 | Bracket, Clock | 10 |
|
- | ||||
| 3 | 74008939 | Switch, Rocker (bsq) | 10 |
|
- | ||||
| 4 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 5 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 6 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 6 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 7 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 7 | 5701M760-60 | Clock W/overlay (bsq) (Replaces: 74009706) | 10 |
|
$ 379.39 | ||||
| 8 | WP74009541 | Screw (1/2``-bsq) (Replaces: 74004976) | 10 |
|
$ 6.26 | ||||
| 8 | 74009671 | Support, Backguard (bsq-rt) | 10 |
|
- | ||||
| 8 | 74009668 | Support, Backguard (bsq-lt) | 10 |
|
- | ||||
| 9 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 9 | 74009701 | Shield, Rear Sight | 10 |
|
- | ||||
| 10 | 74009335 | Cover, Backguard Wire | 10 |
|
- | ||||
| 10 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 11 | 74009188 | Knob (wht) | 10 |
|
$ 39.24 | ||||
| 12 | 74010437 | Top, Main (bsq) | 10 |
|
- | ||||
| 13 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 14 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | W10823715 | Element (2500w) (Replaces: 74009743) | 10 |
|
$ 315.14 | ||||
| 16 | W10823711 | Element (1200w) (Replaces: 74008568) | 10 |
|
Immediately | $ 183.95 | |||
| 17 | W11189172 | Glide, Main Top (Replaces: 74004558) | 10 |
|
Immediately | $ 15.09 | |||
| 18 | 74009708 | Shield, Wire | 10 |
|
- | ||||
| 18 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 |
