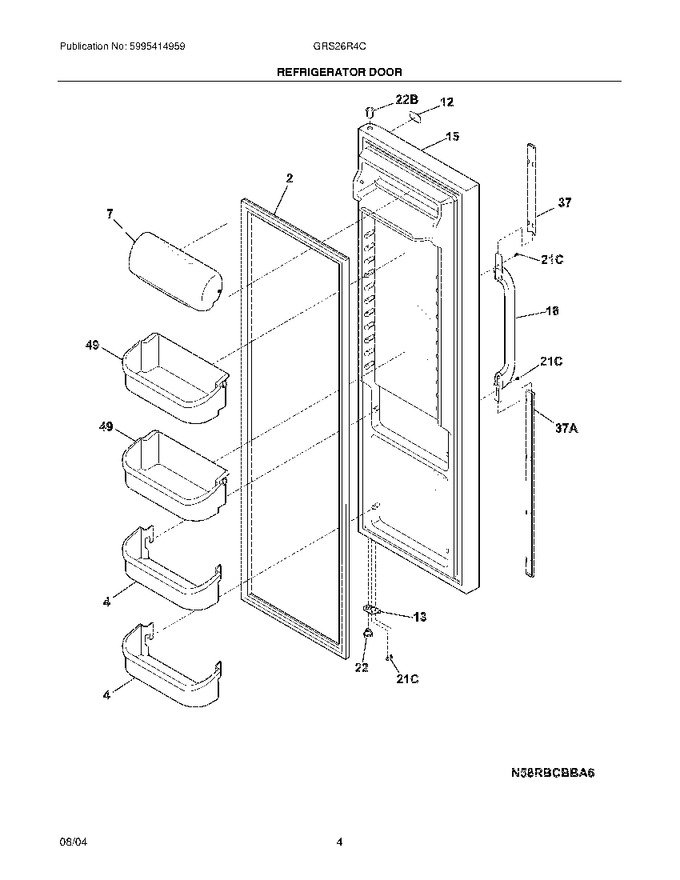

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240323001		Bin-door,pseudo ,bottom			Immediately	$ 42.81
7	240326207		Door-dairy		Appelez-nous	-
12	240422301		Label-nameplate,white				$ 4.87
13	5303918455		Door Stop,white,ref   (Replaces: 240537101)				$ 142.04
15	240451935		Door-refr,white ,complete Assy		Appelez-nous	-
18	218668401		Handle-door, White				$ 74.97
22	240328201		Bearing-hinge,closer			Immediately	$ 17.72
37	215867083		Trim-handle, White, Upper, With Snap Lock				$ 73.07
49	240356401		Bin-door,gallon   (Replaces: 240356406)			Immediately	$ 85.64
21C	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
22B	240328401		Bearing-hinge,upper				$ 12.97
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37A	215867082		Trim-handle, White, Lower, With Snap Locks				$ 78.21
F2	241786013		Gasket-refr Door,white ,magnetic   (Replaces: 240390601)				$ 95.90
