SELECT A DIAGRAM

01 - Cooktop


02 - Cooktop Burner


03 - Control Panel


04 - Door And Drawer


05 - Oven Chassis


06 - Broiler And Oven Burner


07 - Oven


08 - Rear Chassis, Lit/optional

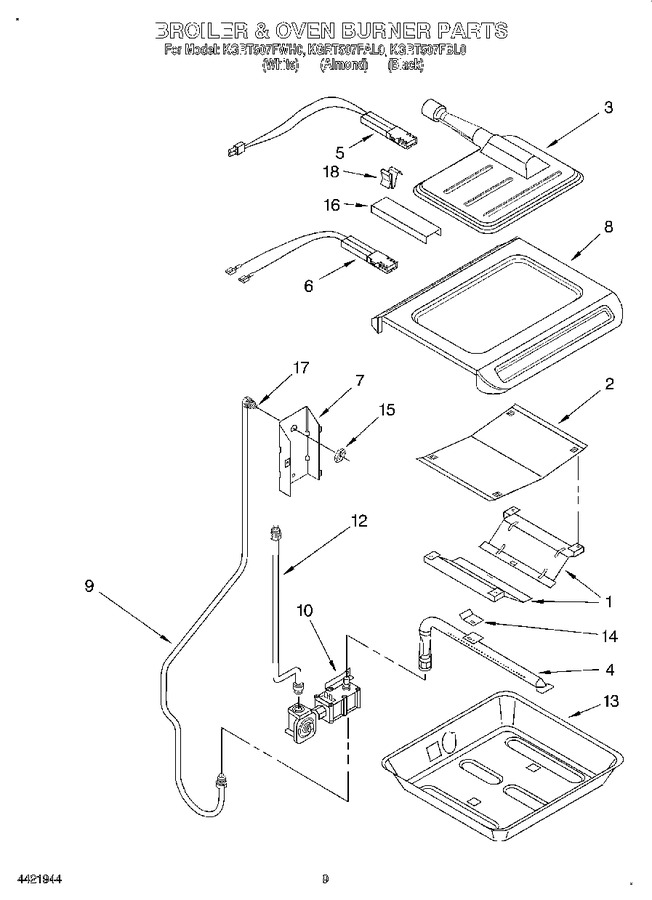

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9752737		Shield, Oven (2)				$ 22.04
1	9751643		Screw,		Appelez-nous	-
2	9752738		Flame Shield, Bake		Appelez-nous	-
2	9751643		Screw, 10-3/8 (2)		Appelez-nous	-
3	9751424		Burner, Broiler		Appelez-nous	-
3	9751644		Screw, 10-24 X 1/2		Appelez-nous	-
4	9751367		Burner, Bake		Appelez-nous	-
5	9751643		Screw, 10-24x3/8		Appelez-nous	-
5	WP9782065		Ignitor, Broiler Burner   (Replaces: 9751784)			Immediately	$ 187.39
6	9751123		Ignitor, Oven Burner				$ 105.12
6	9751643		Screw, 10-24x3/8		Appelez-nous	-
7	9751203		Nut, 5/8 X 18		Appelez-nous	-
7	9751168		Bracket, Broil Shooter		Appelez-nous	-
7	9780265		Screw, 10 X 3/8		Appelez-nous	-
8	9752736GM		Pan, Oven Bottom		Appelez-nous	-
9	9751173		Tubing, Broil		Appelez-nous	-
10	WP9755424		Valve, Regulator Assembly   (Replaces: 9752698)				$ 358.11
10	776593		Screw, 1/4-20x1/2		Appelez-nous	-
12	9781015		Tubing, Valve To Regulator		Appelez-nous	-
13	9752734		Pan Support, Bake		Appelez-nous	-
14	9751643		Screw, 10-24x3/8		Appelez-nous	-
14	9751600		Bracket, Bake		Appelez-nous	-
15	9751203		Nut No.18 5/8		Appelez-nous	-
16	9780265		Screw		Appelez-nous	-
16	9752041		Bracket, Gas Broiler		Appelez-nous	-
17	9752716		Orifice No.54		Appelez-nous	-
18	9781508		Bracket, Broil Ignitor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
