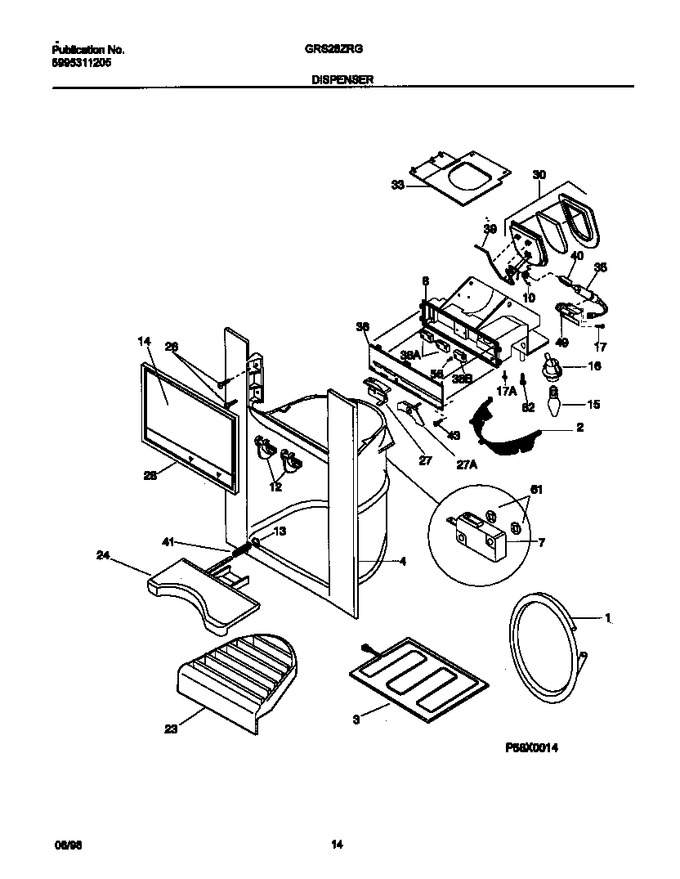

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308010366		Tube-water Inlet,93`` ,plastic ,cut-to-length				$ 17.44
2	218505302		Deflector-ice Disp, Almond		Appelez-nous	-
3	215484300		Heater-door Housing				$ 40.85
4	215922302		Housing-dispenser, Almond		Appelez-nous	-
7	218284800		Switch-actuator,micro		Appelez-nous	-
8	218835701		Module-dispenser				$ 75.86
10	218209800		Spring,dispenser Door		Appelez-nous	-
12	218845902		Knob-selector,almond		Appelez-nous	-
13	215748101		Ring-snap,actuator				$ 50.09
14	218416180		Label-module Cover,almond		Appelez-nous	-
15	218284900		Light Bulb / Lamp, 4w, 115v		Appelez-nous	-
16	240548901		Socket-light/lamp   (Replaces: 215284900)				$ 63.70
17	215794400		Screw,6 X 1/4		Appelez-nous	-
23	215447011		Drip Tray, Almond				$ 22.45
24	215918002		Actuator, Almond		Appelez-nous	-
26	215503203		Screw,cr Pan Hd ,10-16 X 0.500 ,spec/hi-lo   (Replaces: 215503200)			Immediately	$ 7.09
27	218432600		Cam-slide				$ 53.97
27	218814901		Rocker-switch		Appelez-nous	-
28	218713102		Cover-module,almond		Appelez-nous	-
30	215753600		Door Assy-ice Chute, W/gasket, Insul		Appelez-nous	-
33	218849801		Heater-disp Throat		Appelez-nous	-
35	218740003		Heat Motor, 115v				$ 131.99
36	218835601		Cover-slctr Switch,ice Dispenser				$ 27.09
38	241689106		Switch-micro,single Pole ,single Throw   (Replaces: 218835401)			Immediately	$ 8.60
38	218479900		Switch-micro,single Pole ,double Throw				$ 57.65
39	218284600		Wire-ice Door		Appelez-nous	-
40	218284500		Yoke-heat Motor				$ 35.01
41	215917800		Spring-actuator				$ 10.03
43	215760300		Screw,4 X 3/8				$ 9.35
49	215794000		Bracket-heat Motor				$ 34.81
56	218434300		Screw-micro Switch, Pan Head, 4-24 X 9/16		Appelez-nous	-
61	215766000		Ring-retainer,micro Switch				$ 34.40
82	215296300		Screw,plask H/l,6 X 3/8		Appelez-nous	-
*21005	215294101		Tube-water Inlet,formed,plastic,dispenser				$ 91.25
*21006	218658301		Tube-water Inlet,filter ,to Filter Valve,w/elbow				$ 68.80
*21007	218770401		Tube-water Inlet,inlet Valve ,to Filter		Appelez-nous	-
*21008	215781700		Clip-tube		Appelez-nous	-
*21009	218863108		Wiring Harness,disp		Appelez-nous	-
*67155	215294101		Tube-water Inlet,formed,plastic,dispenser				$ 91.25
*67156	218658301		Tube-water Inlet,filter ,to Filter Valve,w/elbow				$ 68.80
*67157	218770401		Tube-water Inlet,inlet Valve ,to Filter		Appelez-nous	-
*67158	215781700		Clip-tube		Appelez-nous	-
*67159	218863108		Wiring Harness,disp		Appelez-nous	-
17A	215840700		Screw,truss Head,6-20 X 3/8		Appelez-nous	-
17B	215923400		Washer-flat		Appelez-nous	-
