01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Informaiton
SELECT A DIAGRAM
New Model Search:

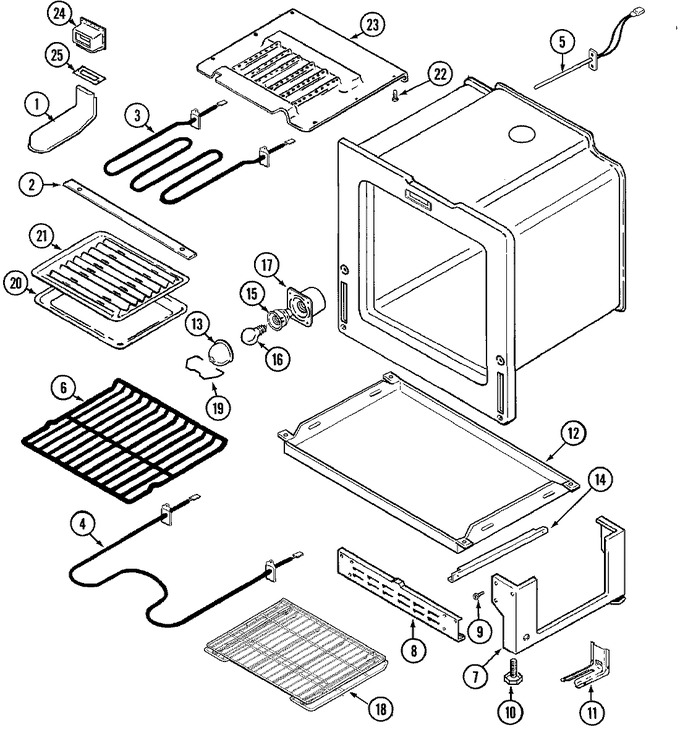

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 74003394 | Vent Box Assembly | 10 |
|
- | ||||
| 2 | 74003563 | Support, Broil Element | 10 |
|
- | ||||
| 3 | W11772394 | Screw (Replaces: 7101P345-60) | 10 |
|
Immediately | $ 10.94 | |||
| 3 | WP7406P218-60 | Element, Broil (6 Pass) (Replaces: 74003040) | 10 |
|
Immediately | $ 152.28 | |||
| 4 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | WP74010750 | Element, Bake (Replaces: 74003039) | 10 |
|
Immediately | $ 47.69 | |||
| 5 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 12001656 | Sensor, Long (Replaces: 74004471) | 10 |
|
Immediately | $ 39.55 | |||
| 6 | WPW10282492 | Rack, Oven (Replaces: 74001757) | 10 |
|
Immediately | $ 65.15 | |||
| 7 | 74003393 | Pedestal, Side | 10 |
|
- | ||||
| 8 | 4020F001-80 | Pedestal, Front/rear | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | W11665456 | Leg, Leveling (Replaces: 74002373) | 10 |
|
Immediately | $ 25.30 | |||
| 11 | WP7101P485-60 | Screw (Replaces: 7101P352-60) | 10 |
|
$ 26.33 | ||||
| 11 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 74002311) | 10 |
|
Immediately | $ 4.69 | |||
| 12 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 74005250 | Retainer, Insulation (bottom) | 10 |
|
- | ||||
| 13 | 74003389 | Cover, Bulb | 10 |
|
- | ||||
| 14 | 74003565 | Runner, Drawer | 10 |
|
- | ||||
| 14 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 74003387 | Receptacle, Bulb | 10 |
|
$ 5.84 | ||||
| 15 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 16 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 10 |
|
Immediately | $ 16.80 | |||
| 17 | 74003388 | Housing, Bulb | 10 |
|
- | ||||
| 18 | 74005218 | Rack, Telescoping Assy | 10 |
|
- | ||||
| 19 | 74003391 | Retainer, Bulb Cover | 10 |
|
- | ||||
| 20 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 21 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 22 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 23 | 3601F237-47 | Baffle, Broil | 10 |
|
- | ||||
| 24 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 24 | 74004534 | Extension, Vent Assembly | 10 |
|
- | ||||
| 25 | 74003285 | Gasket, Vent | 10 |
|
- |
