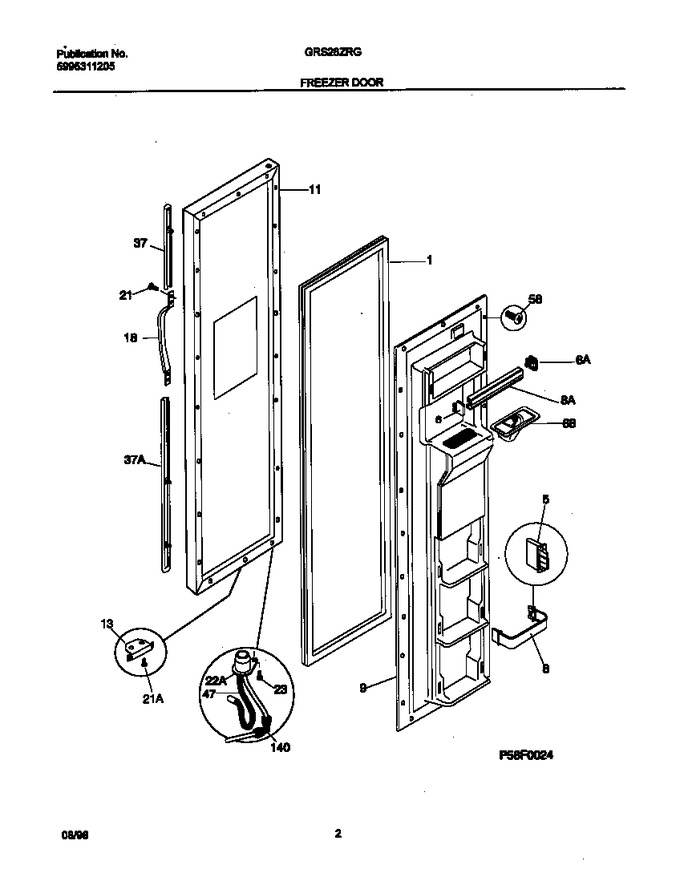

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734313		Gasket-frzr Door, White, Magnetic				$ 244.78
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
6	3206165		Support-door Rack, Rh   (Replaces: 5303324321)			Immediately	$ 8.19
6	3206166		Support-door Rack, Lh   (Replaces: 5303324303)			Immediately	$ 9.93
8	215806329		Rack-door		Appelez-nous	-
8	218687426		Rack-door		Appelez-nous	-
9	218510401		Panel-inner Door, Frzr		Appelez-nous	-
11	5303917873		Panel-frzr Door, White, W/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	218668401		Handle-door, White				$ 74.97
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
37	215867082		Trim-handle, White, Lower, With Snap Locks				$ 78.21
37	215867083		Trim-handle, White, Upper, With Snap Lock				$ 73.07
47	218849901		Wiring Harness,frzr Door		Appelez-nous	-
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
68	218495200		Chute-ice		Appelez-nous	-
140	218518700		Elbow-water Tube				$ 61.22
*20960	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
*20961	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
*20962	5308000200		Nut, 7/16 X 20, Nylon		Appelez-nous	-
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
