01 - Cooktop, Literature


02 - Cooktop Burner

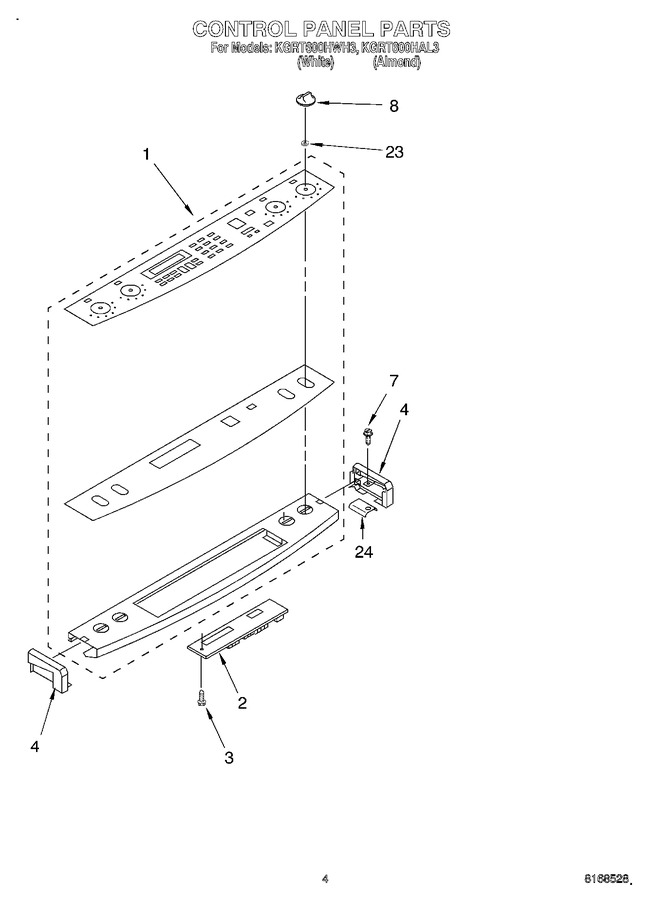

03 - Control Panel


04 - Door And Drawer


05 - Oven Chassis


06 - Broiler And Oven Burner


07 - Oven


08 - Rear Chassis, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9781972CT		Console, Glass (almond)		Appelez-nous	-
1	9781972CW		Console, Glass (white)		Appelez-nous	-
2	9781981CP		Timer, Electronic   (Replaces: 9781981)		Appelez-nous	-
3	9780271		Screw, 8-18 X 1/4``		Appelez-nous	-
4	9751280FW		End Cap (white, Right)		Appelez-nous	-
4	9751279FW		End Cap (white (left))		Appelez-nous	-
4	9751279FT		End Cap (almond (left))		Appelez-nous	-
4	9751280FT		End Cap (almond (right))		Appelez-nous	-
7	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
8	9751199FT		Knobs, Control (almond)		Appelez-nous	-
8	9751199FW		Knobs, Control (white)				$ 19.89
23	WP3188425		Seal, Switch   (Replaces: 3191387)				$ 82.61
24	9781488		Spacer, Bottom Trim		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
