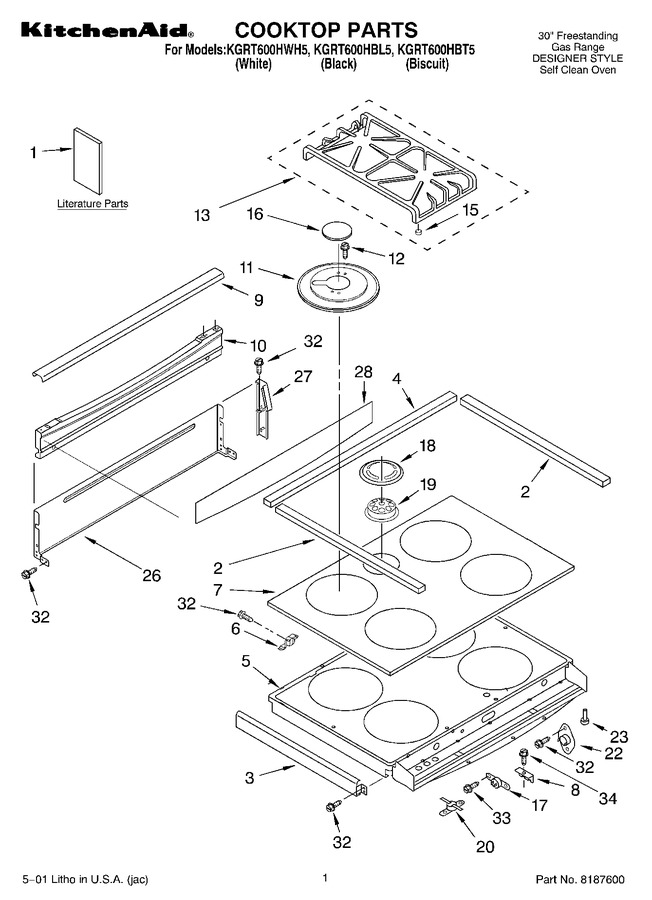

SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Cooktop Burner


03 - Control Panel


04 - Door And Drawer


05 - Oven Chassis


06 - Broiler And Oven Burner


07 - Oven


08 - Rear Chassis, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9753562		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT9753620		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT9752686		Literature Parts (smart & Easy Guide)		Appelez-nous	-
1	LIT9753621		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT9753622		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT9752775		Literature Parts (template, Anti-tip)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT9753848		Literature Parts (lp Installation Instructions)		Appelez-nous	-
2	WP9780939		Gasket, Cooktop   (Replaces: 9754102)			Immediately	$ 60.83
3	9751276PB		Trim, Cooktop (black, Left)		Appelez-nous	-
3	9751275PC		Trim, Cooktop (biscuit, Right)		Appelez-nous	-
3	9751276PW		(trim, Cooktop (left Hand)) (white)		Appelez-nous	-
3	9751275PB		Trim, Cooktop (black (right))		Appelez-nous	-
3	9751275PW		Trim, Cooktop (white (right))		Appelez-nous	-
3	9751276PC		Trim, Cooktop (biscuit, Left)		Appelez-nous	-
4	9781982		Gasket, Cooktop		Appelez-nous	-
5	9754197		Support, Burner		Appelez-nous	-
6	9752003		Washer, Pivot		Appelez-nous	-
6	9751629		Bracket, Pivot		Appelez-nous	-
7	9753606CW		Cooktop, Glass (white)		Appelez-nous	-
7	9753606CT		Cooktop, Glass (biscuit)		Appelez-nous	-
7	9753606CB		Cooktop, Glass (black)		Appelez-nous	-
8	9753691		Bracket, Support		Appelez-nous	-
9	9751632		Cover, Light (black)		Appelez-nous	-
9	9751327		Cover, Light (white)		Appelez-nous	-
9	9753320		Cover, Light (biscuit)		Appelez-nous	-
10	9781896GB		Backsplash (black)		Appelez-nous	-
10	9781896GW		Backsplash (white)		Appelez-nous	-
10	9781896GC		Backsplash (biscuit)		Appelez-nous	-
11	9753600GB		Bezel, Burner (14k Lf)		Appelez-nous	-
11	9753602GB		Bezel, Burner (12k Rr)		Appelez-nous	-
11	9753601GB		Bezel, Burner (6k Rf-lr)		Appelez-nous	-
12	WP3368921		Screw, 7-18 X 3/4   (Replaces: 3400701)			Immediately	$ 6.42
13	9753616GB		Grate, 2 Burner		Appelez-nous	-
15	814323		Pad, Grate (4)   (Replaces: 9752638)			Immediately	$ 10.28
16	WP3191904		Cap, Burner (12k Rr)   (Replaces: 3191904)				$ 157.85
16	WP3191898		Cap, Burner (6k Rf-lr)   (Replaces: 3191898)				$ 60.86
16	9753939GB		Cap, Burner (14k Lf)				$ 49.08
17	341196		Thermo-disc				$ 33.17
18	9751271GB		Cap, Vent		Appelez-nous	-
19	9751366		Cap, Vent		Appelez-nous	-
20	WP9759944		Fuse, Bi-metal   (Replaces: 9751984)			Immediately	$ 121.57
22	9752006		Thermostat, Fixed				$ 130.03
23	238614		Bumper, Rubber (4) (white)   (Replaces: 9750969)				$ 72.68
23	238614		Bumper, Rubber (4) (black)   (Replaces: 9780771)				$ 72.68
26	9751664		Cover, Backsplash		Appelez-nous	-
27	9781884FC		Endcap, Backsplash (biscuit, Left)		Appelez-nous	-
27	9781885FW		Endcap, Backsplash (white, Right)		Appelez-nous	-
27	9781885FB		Endcap, Backsplash (right Hand) (black)		Appelez-nous	-
27	9781885FC		Endcap, Backsplash (biscuit, Right)		Appelez-nous	-
27	9781884FW		Endcap, Backsplash (white, Left)		Appelez-nous	-
27	9781884FB		Endcap, Backsplash (black, Left)		Appelez-nous	-
28	9753910CB		Glass, Backsplash (black)		Appelez-nous	-
28	9753910CC		Glass, Backsplash (biscuit)		Appelez-nous	-
28	9753910CW		Glass, Backsplash (white)				$ 142.05
32	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
33	3149333		Screw, 10-16 X 1/2				$ 5.33
34	9751871		Screw, 10-16 X 1		Appelez-nous	-
34	9754136		Pad, Cooktop				$ 20.15

    View Diagram in Separate Window       Print Part List
