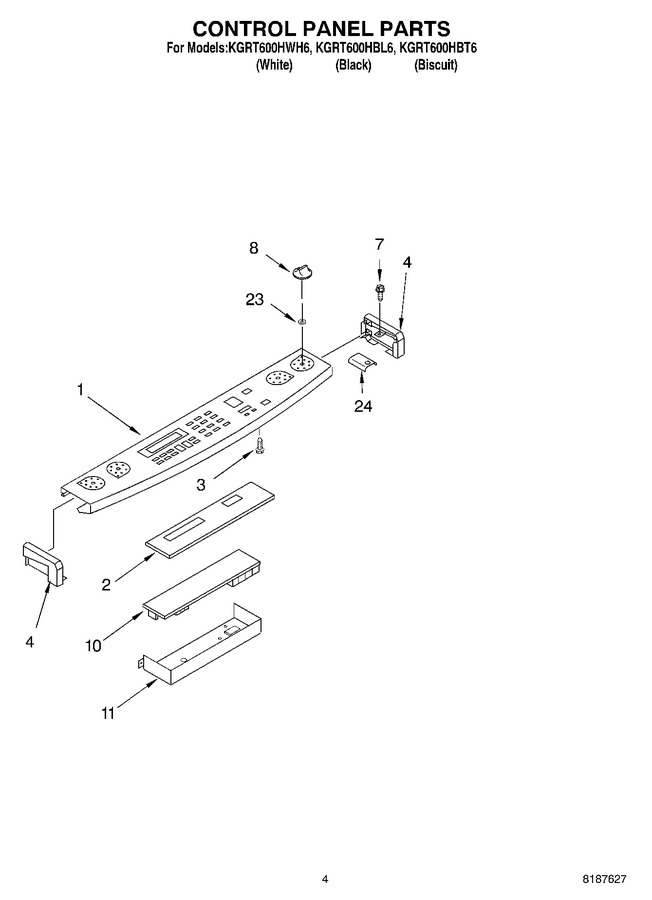

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9754350CB		Console, Glass (black)		Appelez-nous	-
1	9754350CC		Console, Glass (biscuit Model)		Appelez-nous	-
1	9754350CW		Console, Glass (white Model)		Appelez-nous	-
2	9754374		Microcptr		Appelez-nous	-
3	9780271		Screw, 8-18 X 1/4``		Appelez-nous	-
4	9751279FB		(end Cap Left Hand) (black)		Appelez-nous	-
4	9751279FC		End Cap (biscuit, Left)		Appelez-nous	-
4	9751279FW		End Cap (left Hand) (white)		Appelez-nous	-
4	9751280FC		End Cap (biscuit, Right)		Appelez-nous	-
4	9751280FB		End Cap (black, Right)		Appelez-nous	-
4	9751280FW		End Cap (white, Right)		Appelez-nous	-
7	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
8	9751199FW		Knobs, Control (white)				$ 19.89
8	W10405147		Knobs, Control (black)   (Replaces: 9751199FF)				$ 87.20
8	9751199FC		Knobs, Control (biscuit)				$ 5.71
10	9754381		Microcptr		Appelez-nous	-
11	9755021		Shield, Control Panel		Appelez-nous	-
23	WP3188425		Seal, Switch   (Replaces: 3191387)				$ 82.61
24	9781488		Spacer, Bottom Trim		Appelez-nous	-
