Diagram # Part Number Description Series Availability Ships Price Add to Cart
15 40A15 Bulb, Oven   (Replaces: 8935) In-Stock Immediately $ 1.98

16 W11594027 Light, Socket   (Replaces: 9781050) In-Stock Immediately $ 78.31

18 4396923 Grill, Broiler   (Replaces: 420104GM) In-Stock Immediately $ 52.04

19 4396923 Pan, Broiler   (Replaces: 420101GM) In-Stock Immediately $ 52.04

21 9750498 Rack, Standard (3) Appelez-nous -
22 9782081 Sensor Special Order $ 119.40

23 WP9781049 Lens, Light   (Replaces: 9781049) In-Stock Immediately $ 71.93

24 WP3184533 Gasket, Len`s   (Replaces: 3184533) In-Stock Immediately $ 7.73

25 9780265 Screw, 10-16 X 3/8 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

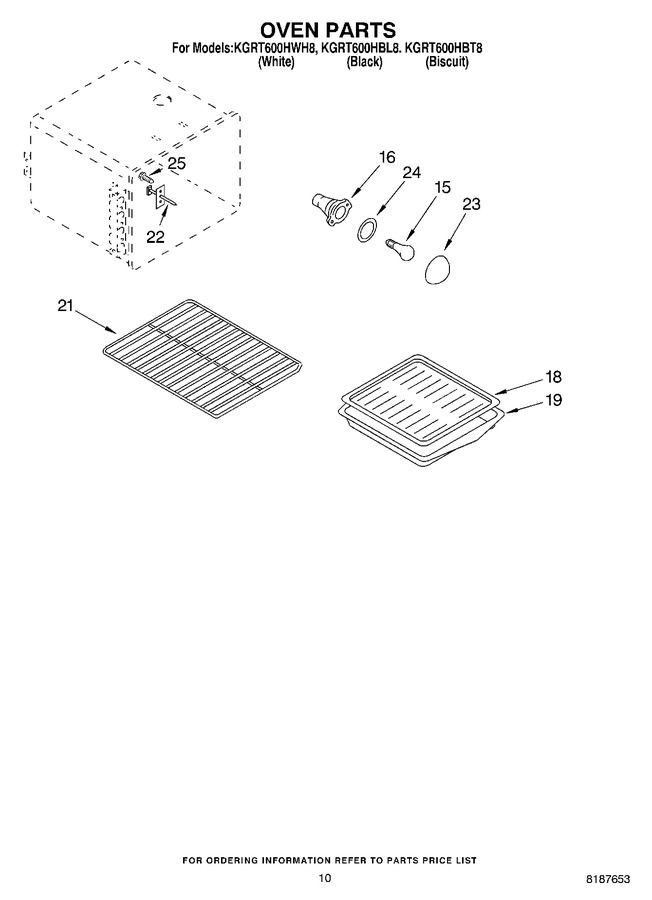

Diagram for KGRT600HBT8
