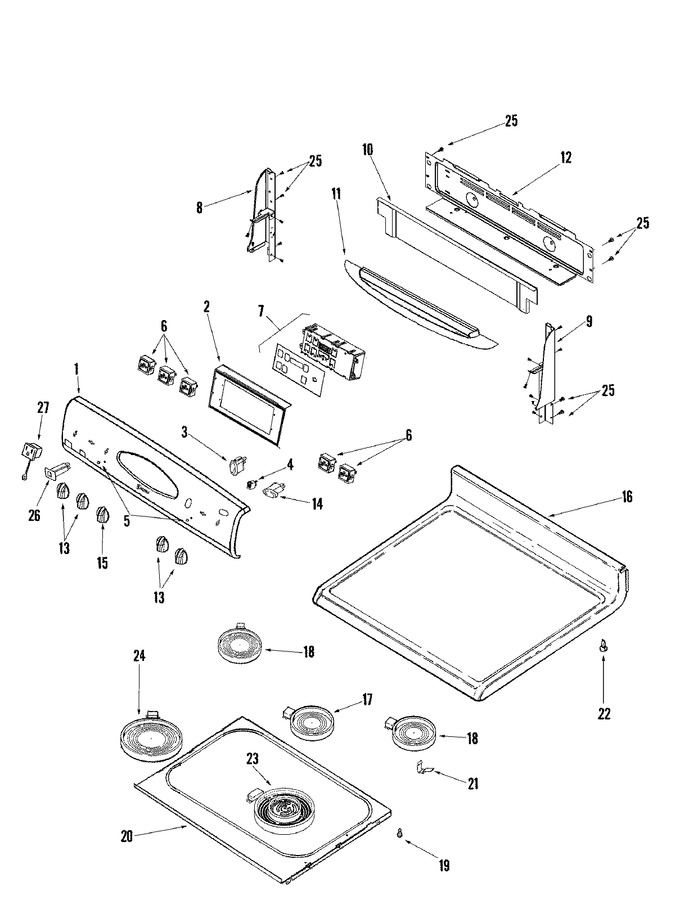

03 - Control Panel/top Assembly


04 - Door/drawer


05 - Supplemental Information


06 - Wiring Information


07 - Wiring Information (frc)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74011262		Panel, Backguard (wht)	10	Appelez-nous	-
2	74009052		Bracket, Clock	10	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
3	WP74010226		Switch, Rocker (wht)   (Replaces: 74008938)	10			$ 86.45
4	WP74004153		Light, Indicator   (Replaces: 74004153)	10		Immediately	$ 8.02
5	WP7730P011-60		Lens, Indicator Light   (Replaces: 7730P011-60)	10			$ 5.16
6	WP74003122		Switch, Infinite (dual)   (Replaces: 74003122)	10		Immediately	$ 73.53
6	W10177711		Switch, Infinite (dual)	19			$ 76.37
6	W10129627		Switch, Infinite (warming)	19			$ 111.64
6	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 6.26
6	74006589		Switch, Infinite (warming)	10	Appelez-nous	-
6	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	10		Immediately	$ 35.10
6	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	10		Immediately	$ 57.78
7	WP5701M717-60		Clock/overlay (wht)   (Replaces: 74009211)	10			$ 474.66
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	74009077		End Cap (rt-wht)	10	Appelez-nous	-
9	74009079		End Cap (lt-wht)	10	Appelez-nous	-
10	74009444		Shield, Vent	10	Appelez-nous	-
11	74009203		Shield, Heat Visor (wht)	10	Appelez-nous	-
12	74010983		Cover, Rear Wire	10	Appelez-nous	-
12	74008836		Insulation, Foil (bkgd)	10	Appelez-nous	-
13	WP74008947		Knob (wht/chr)   (Replaces: 74008947)	10			$ 18.70
14	WP74010226		Switch, Rocker W/shield (wht)   (Replaces: 74010226)	10			$ 86.45
15	74008950		Knob (wht/chr)	10			$ 67.52
16	74011150		Top, Main Asy. (wht)	10	Appelez-nous	-
17	74008898		Element, Warming	10			$ 73.51
17	74011676		Element, Warming	18			$ 65.50
18	W10823711		Element (1200w)   (Replaces: 74008568)	10		Immediately	$ 183.95
19	W11233072		Screw   (Replaces: 74009538)	10		Immediately	$ 12.62
20	74008900		Bottom, Burner Box	10	Appelez-nous	-
21	74007134		Spring, Element Support	10			$ 10.51
22	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
22	74008761		Spacer, Snap-in	10			$ 7.55
23	WP7101P072-60		Screw   (Replaces: 7101P072-60)	10			$ 6.77
23	W10823713		Element (2700w)   (Replaces: 74008919)	10		Immediately	$ 330.41
24	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
25	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
