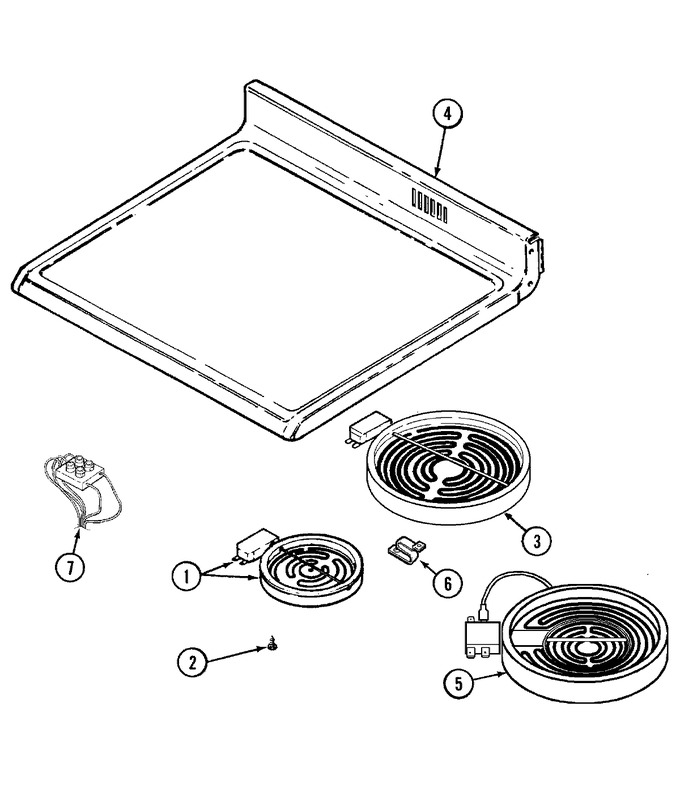

05 - Top Assembly
06 - Wiring Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74004494 | Limiter | 16 |
|
- | ||||
| 1 | W10823704 | Limiter (6``) (Replaces: 74002651) | 10 |
|
Immediately | $ 309.01 | |||
| 1 | W10823704 | Element W/limiter (6``) (Replaces: 74001011) | 16 |
|
Immediately | $ 309.01 | |||
| 1 | W10823704 | Element W/limiter (6``) (Replaces: 74002653) | 10 |
|
Immediately | $ 309.01 | |||
| 2 | WP7101P498-60 | Screw (6abx.25-zn) (Replaces: 74003357) | 10 |
|
$ 6.74 | ||||
| 3 | W10823707 | Element W/limiter (8``) (Replaces: 74002649) | 10 |
|
Immediately | $ 316.13 | |||
| 3 | W10823707 | Element W/limiter (8``) (Replaces: 74001012) | 16 |
|
Immediately | $ 316.13 | |||
| 3 | 74004494 | Limiter | 16 |
|
- | ||||
| 3 | 74002652 | Limiter (8``) | 10 |
|
- | ||||
| 4 | W11189172 | Glide, Main Top (Replaces: 74004558) | 10 |
|
Immediately | $ 15.09 | |||
| 4 | 74003688 | Top, Main (wht Glass/wht Trm) | 10 |
|
- | ||||
| 5 | W10823703 | Element, Ceran. Dual (Replaces: 74002666) | 10 |
|
Immediately | $ 204.99 | |||
| 5 | 74002667 | Limiter | 10 |
|
- | ||||
| 5 | 74004880 | Limiter (dual) | 16 |
|
- | ||||
| 5 | W10823709 | Element, Dual (w/limiter) (Replaces: 74004556) | 16 |
|
Immediately | $ 172.88 | |||
| 6 | 74003072 | Support, Ceramic Element | 10 |
|
- | ||||
| 7 | 74003589 | Light, Indicator (4-pos) | 10 |
|
- |
