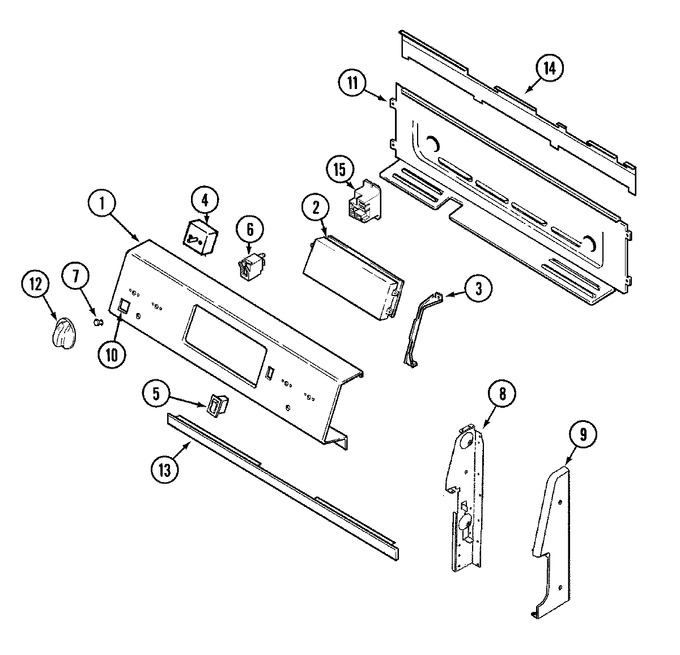

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005487 | Panel, Control (bsq) | 10 |
|
- | ||||
| 2 | 74005174 | Clock (bsq) | 10 |
|
- | ||||
| 2 | W11233072 | Screw (Replaces: 7101P147-60) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | 98008169 | Screw (8abx3/8) Bsq (Replaces: 74004985) | 10 |
|
- | ||||
| 3 | 74003627 | Bracket, Clock | 10 |
|
- | ||||
| 4 | 71003201 | Screw W/washer | 10 |
|
- | ||||
| 4 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 4 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 4 | 74002144 | Switch, Dual Element | 10 |
|
- | ||||
| 4 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 5 | 74008765 | Switch, Rocker (bsq) (Replaces: 74004983) | 10 |
|
$ 79.50 | ||||
| 6 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 7 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 8 | 74005393 | Bracket, Control Panel (lt) | 10 |
|
- | ||||
| 8 | 74005392 | Bracket, Control Panel (rt) | 10 |
|
- | ||||
| 9 | 74004982 | Screw (6abx1/2 3/16) | 10 |
|
- | ||||
| 9 | 74004979 | End Cap, Cntrl Panel (rt-bsq) | 10 |
|
- | ||||
| 9 | 74004980 | End Cap, Cntrl Panel (lt-bsq) | 10 |
|
- | ||||
| 9 | WP74009541 | Screw (1/2``-bsq) (Replaces: 74004976) | 10 |
|
$ 6.26 | ||||
| 10 | 74005144 | Receptacle, Outlet (bsq) | 10 |
|
- | ||||
| 11 | 74004550 | Housing, Control Panel | 10 |
|
- | ||||
| 11 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 74005143 | Knob, Switch (bsq) | 10 |
|
- | ||||
| 13 | 74003374 | Shield, Sight | 10 |
|
- | ||||
| 13 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 74006376 | Extension, Control Panel | 12 |
|
- | ||||
| 14 | 74004551 | Extension, Control Panel | 10 |
|
- | ||||
| 15 | WP74003482 | Relay, Auxillary (Replaces: 74003482) | 10 |
|
$ 153.21 | ||||
| 16 | 71003070 | Breaker, Circuit (blk) | 10 |
|
- | ||||
| 17 | 74003480 | Harness, Remote Relay | 10 |
|
- | ||||
| 17 | 74003557 | Harness, Sensor/lock | 10 |
|
- | ||||
| 17 | 74004552 | Harness, Control Pnl/top | 10 |
|
- | ||||
| 17 | 12001323 | Wire/terminal Kit | 10 |
|
- | ||||
| 17 | 74005488 | Harness, Control Panel | 10 |
|
- | ||||
| 17 | 74004538 | Harness, Supply Lock Motor | 10 |
|
- | ||||
| 18 | 74004795 | Manual, Use & Care (frch) | 10 |
|
- | ||||
| 18 | 74005475 | Guide, Cooking (trilingual) | 10 |
|
- | ||||
| 18 | 74003685 | Manual, Use & Care | 10 |
|
- | ||||
| 19 | 16010161 | Manual, Srvc Elec/gas Range | 10 |
|
- |
