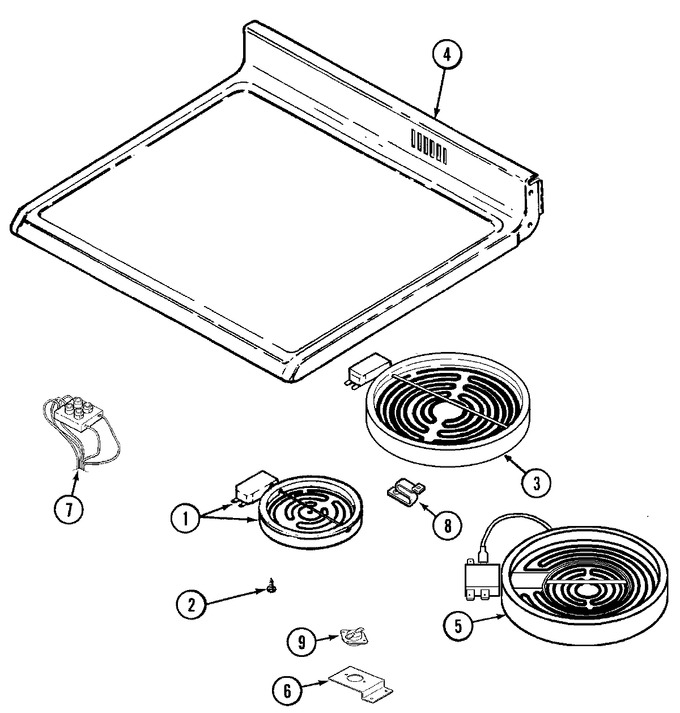

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74004494		Limiter	15	Appelez-nous	-
1	W10823704		Element W/limiter (6``)   (Replaces: 74002653)	10		Immediately	$ 309.01
1	W10823704		Element W/limiter (6``)   (Replaces: 74005476)	18		Immediately	$ 309.01
1	W10823704		Element W/limiter (6``)   (Replaces: 74001011)	15		Immediately	$ 309.01
1	W10823704		Limiter (6``)   (Replaces: 74002651)	10		Immediately	$ 309.01
2	WP7101P498-60		Screw (6abx.25-zn)   (Replaces: 74003357)	10			$ 6.74
3	W10823707		Element W/limiter (8``)   (Replaces: 74001012)	15		Immediately	$ 316.13
3	W10823707		Element W/limiter (8``)   (Replaces: 74005477)	18		Immediately	$ 316.13
3	74002652		Limiter (8``)	10	Appelez-nous	-
3	W10823707		Element W/limiter (8``)   (Replaces: 74002649)	10		Immediately	$ 316.13
3	74004494		Limiter	15	Appelez-nous	-
4	W11189172		Glide, Main Top   (Replaces: 74004558)	14		Immediately	$ 15.09
4	WA906B		Scraper, Razor   (Replaces: 8312P001-60)	10		Immediately	$ 4.86
4	20003078		Cooktop Cleaning Creme   (Replaces: 20000001)	10	Appelez-nous	-
4	74003790		Top, Main (wht Glass/wht Trm)	10	Appelez-nous	-
5	74002667		Limiter	10	Appelez-nous	-
5	W10823703		Element, Ceran. Dual   (Replaces: 74002666)	10		Immediately	$ 204.99
5	W10823709		Element, Dual (w/limiter)   (Replaces: 74004556)	15		Immediately	$ 172.88
5	74004880		Limiter (dual)	15	Appelez-nous	-
6	71003077		Bracket, Switch	10	Appelez-nous	-
7	71003078		Light, Indicator	10	Appelez-nous	-
8	74003072		Support, Ceramic Element	10	Appelez-nous	-
9	WP7101P498-60		Screw (6abx.25-zn)   (Replaces: 74003357)	10			$ 6.74
9	71003076		Switch, Limit	10	Appelez-nous	-
