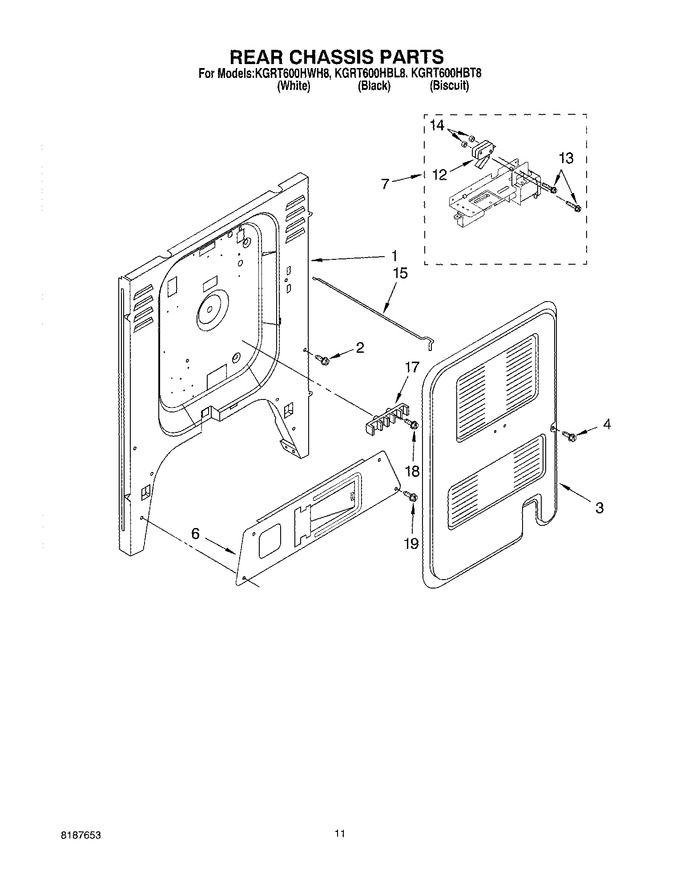

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9751051		Back, Chassis		Appelez-nous	-
2	340184		Screw, 10-16 X 1.5				$ 12.10
3	9751353		Panel, Rear Cover		Appelez-nous	-
4	423247		Screw, 10-16 X 3/8		Appelez-nous	-
6	9751500		Bracket, Regulator Valve		Appelez-nous	-
7	9755001		Oven Lock Assy.		Appelez-nous	-
12	9754291		Switch, Interlock		Appelez-nous	-
13	9750887		Screw, 4-40 X 1		Appelez-nous	-
14	9750888		Nut (2)		Appelez-nous	-
15	9750523		Rod, Lock		Appelez-nous	-
17	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
18	98884		Screw, 10-16 X 1		Appelez-nous	-
19	9781055		Power Cord		Appelez-nous	-
19	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
19	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
19	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
19	9754366		Wire, Jumper (s/i No Bake)		Appelez-nous	-
19	9781555		Clip, Wire		Appelez-nous	-
19	9750984		Hanger, Cable		Appelez-nous	-
19	9751868		Grommet, Harness (2)		Appelez-nous	-
19	WA906B		Scraper   (Replaces: 3183488)			Immediately	$ 4.86
19	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
19	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
19	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
19	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
19	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
19	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
19	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
19	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
19	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
19	242831		Wire (14 Ga. 200 C Red)				$ 342.23
19	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
19	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
19	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
19	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
19	4392899		Biscuit			Immediately	$ 23.81
19	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
19	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
19	350942		Primer (white)   (Replaces: 206922)				$ 80.69
19	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
19	978883		Almond (uncut)		Appelez-nous	-
19	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
19	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
19	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
19	9754004		Insulation, Wrap		Appelez-nous	-
19	9754011		Insulation, Rear		Appelez-nous	-
19	9754005		Insulation, Bottom		Appelez-nous	-
19	9754301		Insulation, Flue		Appelez-nous	-
19	9753543		Glass Cleaner		Appelez-nous	-
19	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
19	9753604		Gas Conversion Kit (lp)		Appelez-nous	-
19	9752717		Gas Conversion Kit ((natural))		Appelez-nous	-
19	261582		Grease		Appelez-nous	-
19	9751745		Anti-tip Kit				$ 19.35
19	9755017		Harness, Wire (main Harness)		Appelez-nous	-
19	9754289		Harness, Wire (neutral Gas)		Appelez-nous	-
19	9782443		Harness, Wire (pwr Brd To Dsply)		Appelez-nous	-
19	9755256		Harness, Wire		Appelez-nous	-
19	9755025		Harness, Wire (fan/ Bms) (spark Control)		Appelez-nous	-
19	9755193		Harness, Wire (oven Door)		Appelez-nous	-
19	9752769		Harness, Wire (spark Module)		Appelez-nous	-
19	9782111		Wrap, Tie		Appelez-nous	-
19	WPW10339879		Tie, Wire   (Replaces: 20082084)				$ 7.11
19	9782344		Wire, Jumper		Appelez-nous	-
19	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
19	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
