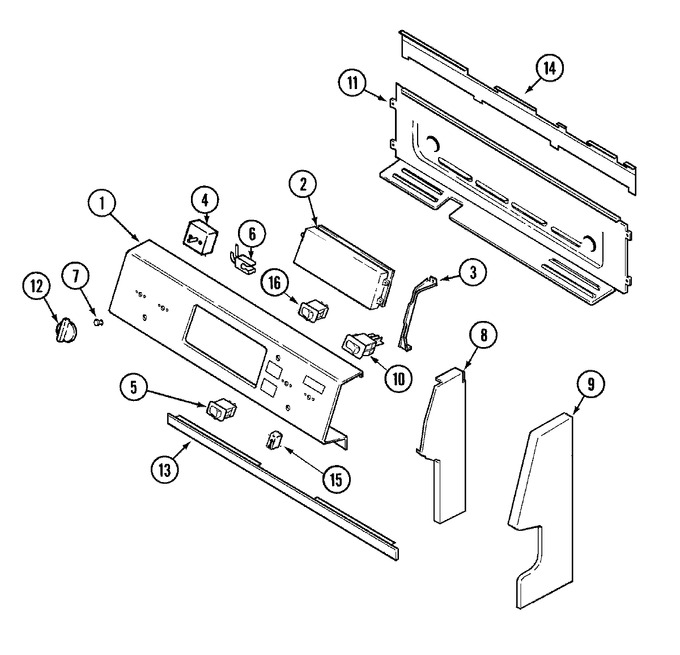

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74006654 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | WP7101P498-60 | Screw (6abx.25-zn) (Replaces: 74003357) | 10 |
|
$ 6.74 | ||||
| 2 | 74006196 | Clock W/overlay (wht) | 10 |
|
- | ||||
| 3 | 74003627 | Bracket, Clock | 10 |
|
- | ||||
| 3 | 7101P348-60 | Screw (wht) | 10 |
|
- | ||||
| 4 | WP74003122 | Switch, Infinite (dual) (Replaces: 74003122) | 10 |
|
Immediately | $ 73.53 | |||
| 4 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 4 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 4 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 4 | 74006589 | Switch, Infinite (warming) | 10 |
|
- | ||||
| 5 | 74008717 | Switch, Rocker (wht) (Replaces: 74003364) | 10 |
|
$ 72.68 | ||||
| 6 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 7 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 8 | 74005392 | Bracket, Control Panel (rt) | 10 |
|
- | ||||
| 8 | 74005393 | Bracket, Control Panel (lt) | 10 |
|
- | ||||
| 8 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74003608 | End Cap, Control Pnl (lt-wht) | 10 |
|
$ 41.41 | ||||
| 9 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 10 |
|
$ 11.89 | ||||
| 9 | 74003607 | End Cap, Control Pnl (rt-wht) | 10 |
|
$ 45.23 | ||||
| 9 | 74002451 | Screw (1 3/16``-wht) | 10 |
|
- | ||||
| 10 | 74006468 | Switch, Rocker Dual (wht) | 10 |
|
$ 36.20 | ||||
| 11 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 74003372 | Housing, Control Panel | 10 |
|
- | ||||
| 12 | WP74003611 | Knob (wht) (Replaces: 74003611) | 10 |
|
$ 17.45 | ||||
| 13 | 74003374 | Shield, Sight | 10 |
|
- | ||||
| 13 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 74006376 | Extension, Control Panel | 10 |
|
- | ||||
| 15 | 71003194 | Light, Indicator (125v) | 10 |
|
- | ||||
| 16 | 74008717 | Switch, Rocker (wht) (Replaces: 74003364) | 10 |
|
$ 72.68 |
