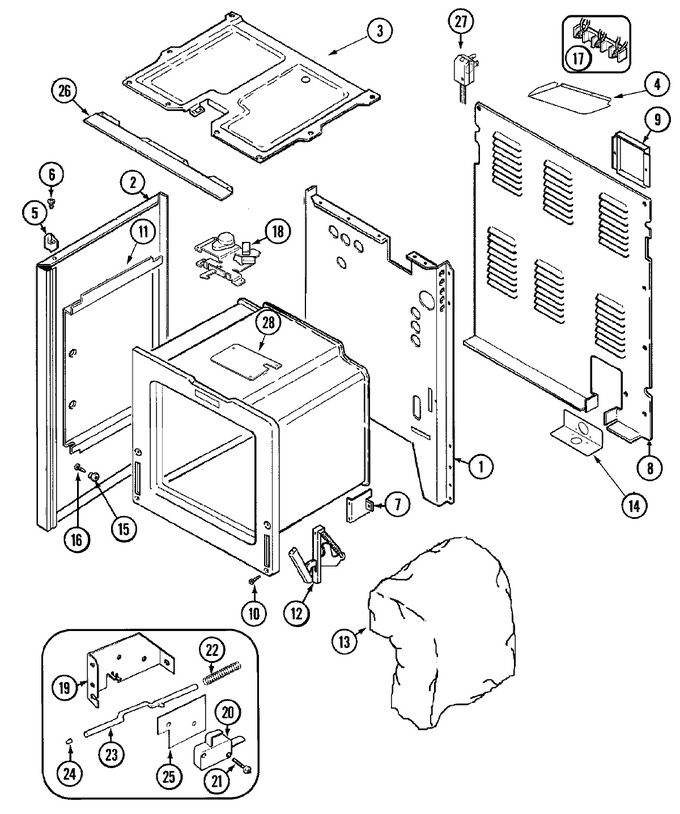

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74006322		Back, Main	10	Appelez-nous	-
1	W11577436		Grommet   (Replaces: 8008P010-60)	10	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
2	74004965		Panel, Side (bsq)	10	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
3	74007367		Box, Burner (rt)	15	Appelez-nous	-
3	74007366		Box, Burner (lt)	15	Appelez-nous	-
3	74006384		Box, Burner	10	Appelez-nous	-
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
4	74006581		Cover, Terminal	10	Appelez-nous	-
5	8010P087-60		Spacer, Main Top (lt)	10	Appelez-nous	-
5	8010P088-60		Spacer, Main Top (rt)	10	Appelez-nous	-
6	W11233072		Screw (no.8ab)   (Replaces: 71001183)	10		Immediately	$ 12.62
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	3807F400-51		Support,oven Rear	10	Appelez-nous	-
8	74003241		Cover, Main Back Wire	10	Appelez-nous	-
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
9	4005F427-51		Cover, Access	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
11	74003422		Retainer, Insulation (side)	10	Appelez-nous	-
12	WP74011141		Hinge, Door   (Replaces: 74003968)	10		Immediately	$ 128.06
13	74003382		Insulation, Back/bottom	10	Appelez-nous	-
13	74005771		Insulation, Oven Wrap	10	Appelez-nous	-
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
14	W10190166		Bracket, Power Supply   (Replaces: 74004180)	10			$ 8.32
15	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	10			$ 7.07
16	W11693756		Screw (8abx19/32-zn)   (Replaces: 74003004)	10		Immediately	$ 12.65
16	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	10		Immediately	$ 6.98
17	W11684512		Screw (10abx1.0-zn)   (Replaces: 7101P060-60)	10			$ 12.69
17	WP7103P027-60		Nut, Terminal Block   (Replaces: 7103P027-60)	10		Immediately	$ 6.47
17	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)	10		Immediately	$ 31.65
18	74007721		Latch, Door	15	Appelez-nous	-
18	74005478		Latch, Door	10			$ 149.33
19	WPY706189		Screw (8abx3/8-blk)   (Replaces: 7101P347-60)	10		Immediately	$ 6.47
19	74001632		Bracket, Switch Actuator	10	Appelez-nous	-
20	74001802		Switch	10	Appelez-nous	-
21	912012		Screw	10	Appelez-nous	-
22	74001629		Spring, Door Switch	10			$ 15.03
23	74003562		Rod, Door Light Switch	10	Appelez-nous	-
24	74001631		Bumper, Rod	10			$ 5.22
25	74001872		Insulator, Switch	10	Appelez-nous	-
26	74003384		Bracket, Main Top	10	Appelez-nous	-
26	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
27	7402P050-60		Cord, Power	10	Appelez-nous	-
