02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:

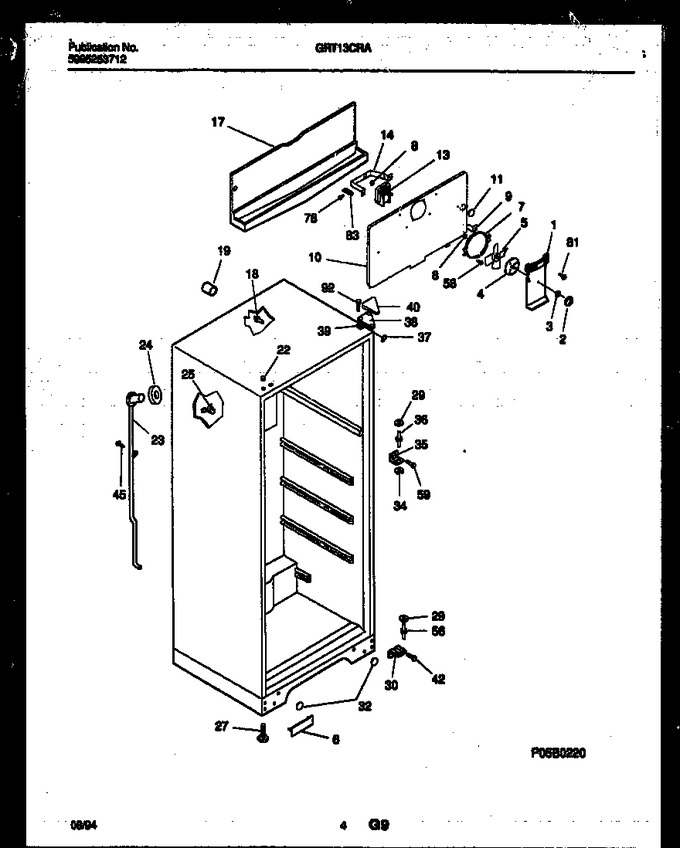

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303301545 | Cover-fan |
|
- | |||||
| 2 | 5303296360 | Knob-damper Control |
|
- | |||||
| 3 | 5303001028 | Nut,push-on |
|
- | |||||
| 4 | 3206110 | Damper-fan Cover |
|
$ 53.08 | |||||
| 5 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 6 | 215846500 | Cover-hole, Lower Hinge |
|
- | |||||
| 7 | 5308000124 | Ring-fan Orifice |
|
$ 53.58 | |||||
| 8 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 9 | 5303205118 | Bracket-motor Mtg, Front |
|
- | |||||
| 10 | 5303270917 | Cover-evap Coil |
|
- | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 13 | 5300158289 | Motor-evap Fan (Replaces: 215360800) |
|
Immediately | $ 149.94 | ||||
| 14 | 5303205119 | Bracket-motor Mtg, Rear |
|
- | |||||
| 17 | 3206146 | Trough-drain |
|
- | |||||
| 18 | 215245000 | Support-evap Cover |
|
$ 25.20 | |||||
| 19 | 5303001198 | Tube-rubber |
|
- | |||||
| 22 | 215774911 | Plug-button, Almond, Upr Hinge Holes |
|
- | |||||
| 23 | 5303272327 | Tube-drain, W/seal Ring |
|
- | |||||
| 24 | 5303207353 | Seal Ring, Drain Tube |
|
$ 6.81 | |||||
| 25 | 215774100 | Spout-drain Tube, W/mounting Pins |
|
- | |||||
| 27 | 3206141 | Screw-leveling, (2) |
|
$ 11.50 | |||||
| 29 | 5308000007 | Washer, .34 X .62 X .05, Nylon |
|
- | |||||
| 30 | 3206136 | Bracket-lower Hinge |
|
- | |||||
| 32 | 215217702 | Plug-button, Cabinet Base, (2) |
|
- | |||||
| 34 | 5308000186 | Washer, .34 X .62 X .10, Nylon |
|
Immediately | $ 6.02 | ||||
| 35 | 5303001369 | Bracket-ctr Hinge |
|
- | |||||
| 36 | 5308000184 | Pin-center Hinge |
|
$ 8.87 | |||||
| 37 | 5303202340 | Trim-cabinet Corner, Almond |
|
- | |||||
| 38 | 3206100 | Bracket-upper Hinge |
|
- | |||||
| 39 | 5303001037 | Shim - Upper Hinge |
|
$ 12.39 | |||||
| 40 | 3206105 | Cover-upper Hinge, Almond |
|
$ 60.90 | |||||
| 42 | 215880100 | Screw-hinge Mtg, Hex Washer Head, 1/4-20 X 5/8, (2) |
|
- | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 56 | 5303001321 | Pin-lower Hinge |
|
$ 17.25 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 78 | 5303274237 | Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2 |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 83 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| 92 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| *80159 | 5303210622 | Skid Pad, Rear Cab Base |
|
- | |||||
| 30A | 215882300 | Tapping Plate, Lower Hinge, (2) (non-illustrated) |
|
- |
