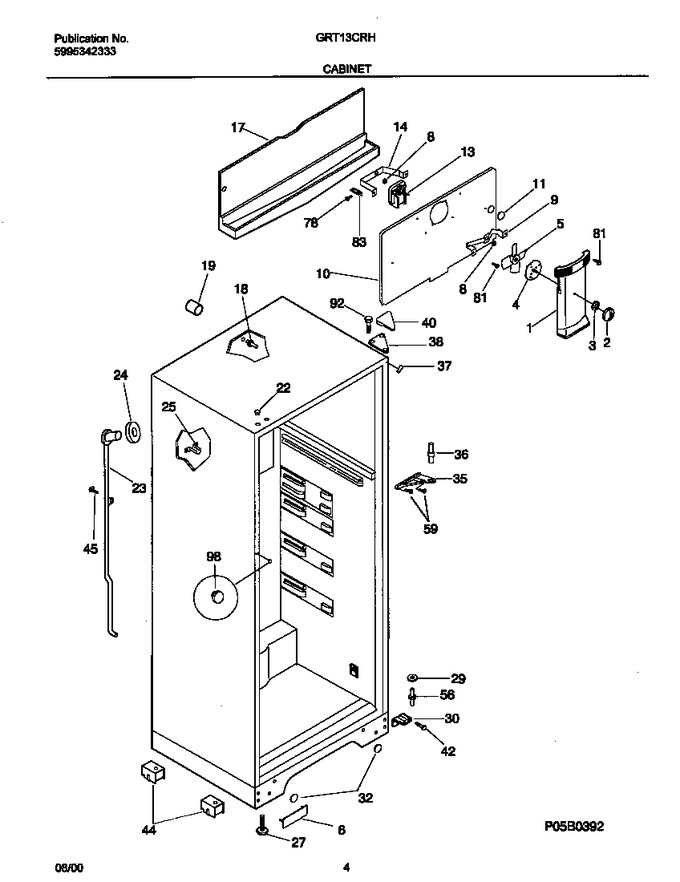

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218672501		Cover-fan		Appelez-nous	-
2	5303307351		Knob, Damper Control				$ 32.71
3	5303001028		Nut,push-on		Appelez-nous	-
4	218722200		Damper-fan Cover, Black				$ 59.80
5	5308000010		Fan Blade, Black   (Replaces: 218649000)			Immediately	$ 49.03
6	218448301		Cover, White, Lwr Hinge Hole				$ 15.91
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
10	218988901		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
13	218878901		Motor-evap Fan		Appelez-nous	-
14	5303322992		Bracket-motor Mtg, Rear				$ 46.57
17	218725602		Trough-drain		Appelez-nous	-
18	215245000		Support - Evap Cover, (2)				$ 25.20
19	5303001198		Tube-rubber		Appelez-nous	-
22	215774901		Plug-button,white ,upr Hinge Holes			Immediately	$ 18.20
23	5303272327		Tube-drain, W/seal Ring		Appelez-nous	-
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	215774100		Spout-drain Tube, W/mounting Pins		Appelez-nous	-
27	3206141		Screw-leveling, (2)				$ 11.50
29	5308000007		Washer, .34 X .62 X .05, Nylon		Appelez-nous	-
30	5303917772		Bracket-lower Hinge		Appelez-nous	-
32	215217701		Plug-button,white ,cabinet Base ,(2)				$ 6.56
35	218220101		Bracket-ctr Hinge, Light Gray		Appelez-nous	-
36	218251300		Pin-center Hinge				$ 59.54
37	5303321081		Trim-cabinet Corner, White				$ 8.82
38	3206100		Bracket-upper Hinge		Appelez-nous	-
40	3206101		Cover-upper Hinge, White				$ 49.25
42	215880100		Screw-hinge Mtg, Hex Washer Head, 1/4-20 X 0.685, (2)		Appelez-nous	-
44	5303283014		Roller Assy, Metal Housing		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
56	218220300		Pin-lower Hinge		Appelez-nous	-
59	240442708		Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin   (Replaces: 218188000)				$ 8.34
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
98	215099701		Plug-button,white				$ 5.99
*09366	5308000186		Washer, .34 X .62 X .10, Nylon			Immediately	$ 6.02
*09367	215882300		Tapping Plate,lower Hinge ,(2)		Appelez-nous	-
*09369	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
