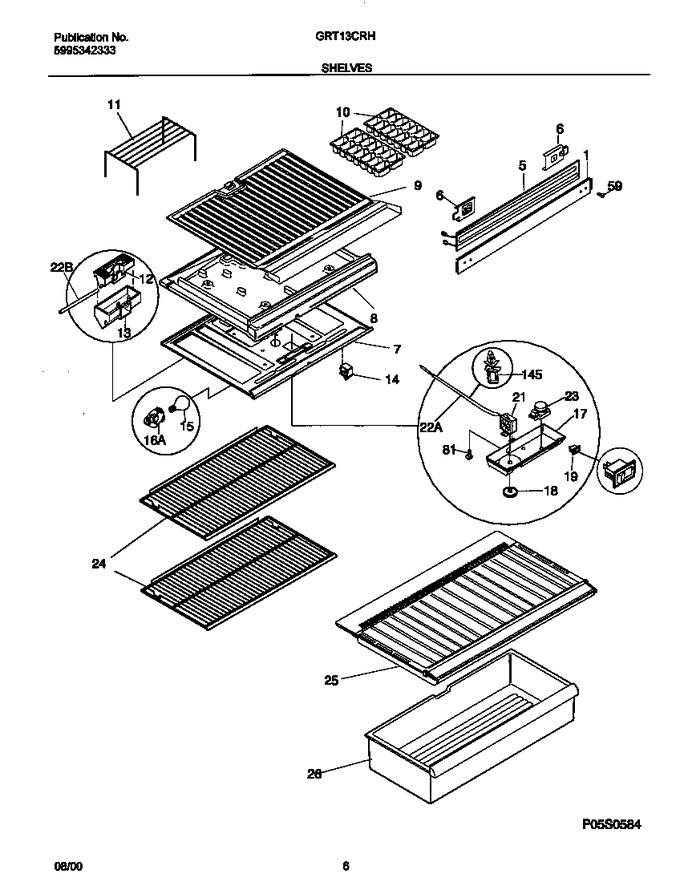

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218874401 | Mullion,white |
|
- | |||||
| 5 | 218781001 | Heater-mullion |
|
$ 50.56 | |||||
| 6 | 218845602 | Tapping Plate,mullion Mtg |
|
$ 14.86 | |||||
| 7 | 218740600 | Top Panel-refr |
|
- | |||||
| 8 | 218872901 | Divider,styrofoam ,w/foil Tape |
|
- | |||||
| 9 | 218820600 | Bottom Panel-frzr |
|
- | |||||
| 10 | 215667501 | Tray-ice,plastic (optiional Accessory) |
|
Immediately | $ 6.07 | ||||
| 11 | 5303282284 | Shelf-freezer, ``table Type`` (Replaces: 5303283280) |
|
Immediately | $ 88.05 | ||||
| 12 | 218730000 | Deflector-air |
|
$ 57.60 | |||||
| 13 | 218631001 | Cover-air Deflector |
|
$ 55.19 | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 218906802 | Socket-light/lamp (Replaces: 218906801) |
|
$ 17.72 | |||||
| 17 | 5304414816 | Control Box |
|
- | |||||
| 18 | 5303311079 | Knob-temp Control |
|
- | |||||
| 19 | 5303286905 | Switch-energy Saver, Rocker Type |
|
$ 27.08 | |||||
| 21 | 5304404821 | Control-temperature (Replaces: 5303321453) |
|
Immediately | $ 164.57 | ||||
| 22 | 218731104 | Tube, Pvc, White, @ Air Deflector, Insulator |
|
$ 35.64 | |||||
| 22 | 5303916855 | Tube,sensor Sleeve ,plastic ,clear |
|
$ 60.96 | |||||
| 23 | 215846602 | Timer-defrost,60 Hz ,120 V ,10 Hour/21 Min (Replaces: 215846605) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303283125 | Shelf-sliding, Wire, Refr Section |
|
- | |||||
| 25 | 5303270897 | Cover-crisper Pan |
|
$ 275.73 | |||||
| 26 | 218738101 | Pan-crisper, Full-width |
|
- | |||||
| 59 | 240442708 | Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin (Replaces: 218188000) |
|
$ 8.34 | |||||
| 81 | 5303001380 | Screw |
|
- | |||||
| 145 | 218660800 | Clip, Plastic, Temp Sensor Mtg, Snap-in |
|
- | |||||
| *09370 | 218878400 | Wiring Harness,control/divider |
|
- | |||||
| *09371 | 5303001449 | Seal-air Deflector,foam Plastic ,(2) |
|
$ 2.12 | |||||
| *09372 | 5308016567 | Nut-anchor |
|
- | |||||
| *09373 | 5303001260 | Screw |
|
$ 6.73 | |||||
| *09374 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 |
