SELECT A DIAGRAM

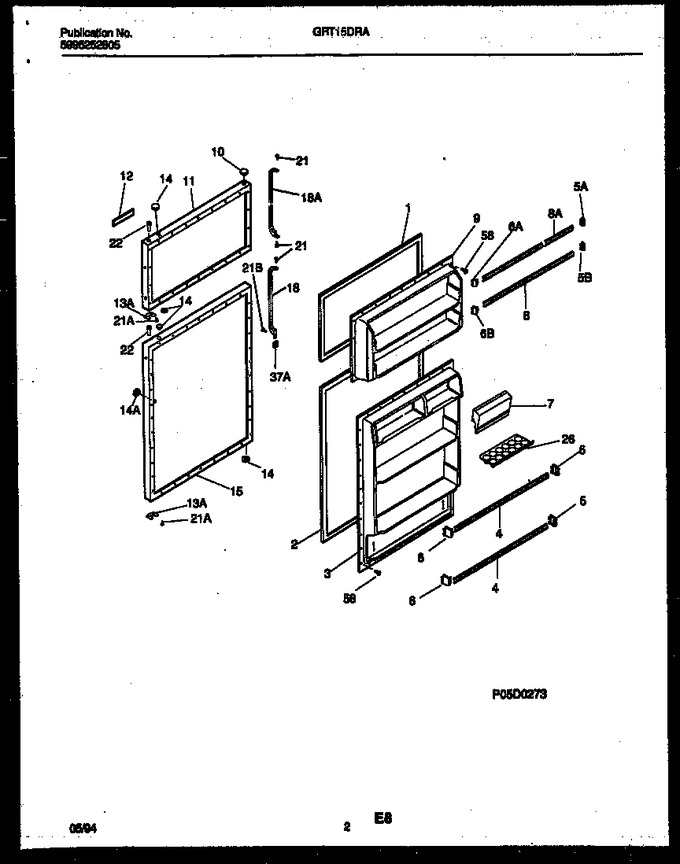

02 - Door Parts


03 - Cabinet Parts


05 - Shelves And Supports


06 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608901		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	218730603		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288857)				$ 62.07
3	5303281227		Panel-inner Door, Refr		Appelez-nous	-
4	5303288927		Rack-door, 23.00`` X 1.62``		Appelez-nous	-
5	3206150		Support-door Rack, Extends 1/81``, Rh				$ 12.58
6	3206151		Support-door Rack, Extends 1.81``, Lh		Appelez-nous	-
7	5303304631		Door-dairy		Appelez-nous	-
8	215366057		Rack-door, 22.62`` X 1.62``		Appelez-nous	-
9	5303276517		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917306		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	215936611		Nameplate Assy, Almond, W/mtg Tape		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917378		Panel-refr Door, Almond, W/insulation		Appelez-nous	-
18	215800906		Handle-door, 17.37``, Almond		Appelez-nous	-
21	5303272568		Screw-handle Mtg, Cr Oval Head, 10-24(d) X 5/8, Almond,		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
*78249	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	5308000255		Door Stop				$ 42.20
14A	215352211		Plug-button,almond ,refr Door Front ,		Appelez-nous	-
18A	215800904		Handle-door, 17.02``, Almond		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
37A	215480204		Trim-handle, End Cap, Almond, Refr Door		Appelez-nous	-
5A	3206165		Support-door Rack, Extends 1.06``, Rh			Immediately	$ 8.19
5B	3206161		Support-door Rack, Extends 1.06``, Rh		Appelez-nous	-
6A	3206166		Support-door Rack, Extends 1.06``, Lh			Immediately	$ 9.93
6B	3206162		Support-door Rack, Extends 1.06``, Lh		Appelez-nous	-
8A	5303304556		Rack-door, 22.59`` X 1.12``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
