01 - Cabinet


02 - Cavity


03 - Control Panel/top Assembly


04 - Door/drawer (stl)


05 - Supplemental Information


06 - Wiring Information


07 - Wiring Information (series 12)

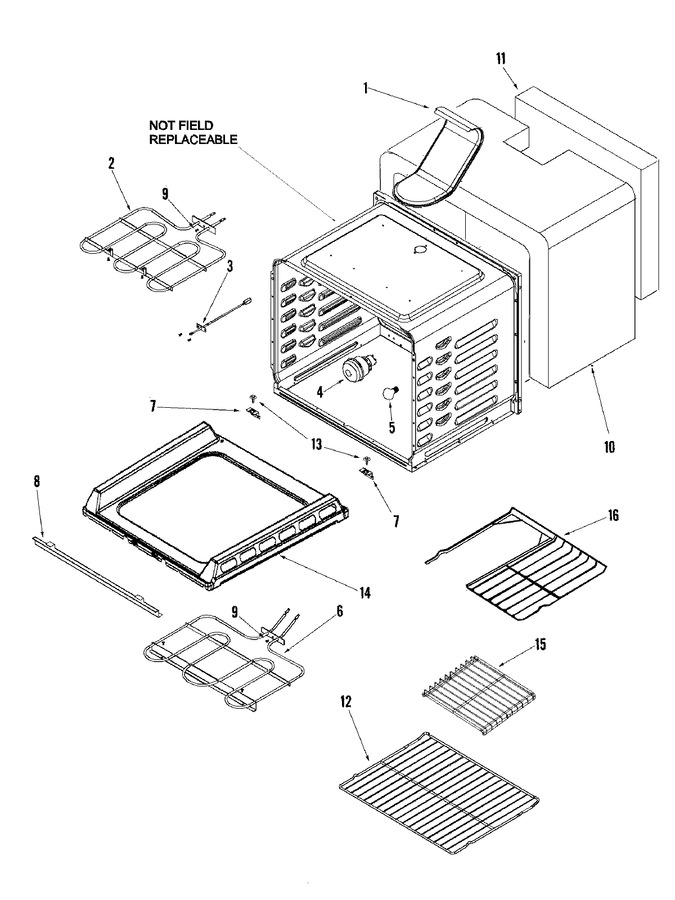

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP74008692		Element, Broil   (Replaces: 74008692)	10		Immediately	$ 103.64
3	12001656		Sensor, Oven (long)   (Replaces: 74004943)	10		Immediately	$ 39.55
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	WP74011278		Oven Light Assy.   (Replaces: 71002427)	10			$ 101.56
4	WP9781049		Lens, Bulb   (Replaces: 71001867)	10		Immediately	$ 71.93
5	8009		Bulb-oven   (Replaces: 7407P103-60)	10		Immediately	$ 16.80
6	WPW10276482		Element, Bake (3600w)   (Replaces: 74011117)	10		Immediately	$ 146.10
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	74008694		Support, Oven Bottom (rear)	10	Appelez-nous	-
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	74008695		Support, Oven Bottom (front)	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74008700		Insulation, Wrapper	10			$ 54.48
11	74008698		Insulation, Back	10	Appelez-nous	-
12	WP74008763		Rack, Oven   (Replaces: 74008763)	10			$ 192.14
13	WP74003976		Screw, Shoulder   (Replaces: 74003976)	10			$ 6.47
14	WPW10211368		Bottom, Oven   (Replaces: 74008741)	10		Immediately	$ 287.07
15	74009587		Insert, Half Rack 30``	10			$ 45.11
26	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
28	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
