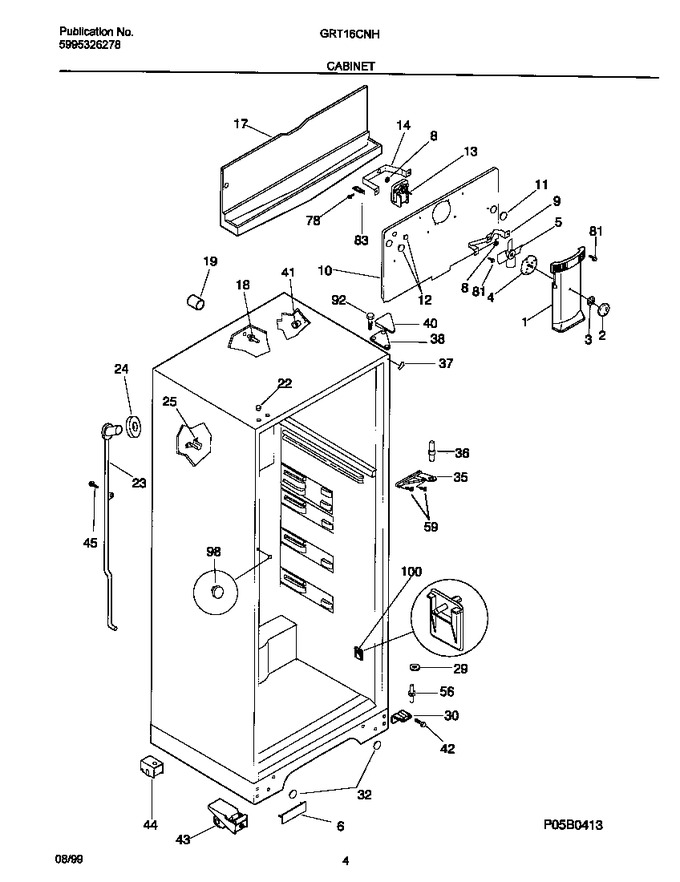

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218672501		Cover-fan		Appelez-nous	-
2	5303307351		Knob, Damper Control				$ 32.71
3	5303001028		Nut,push-on		Appelez-nous	-
4	218722200		Damper-fan Cover, Black				$ 59.80
5	5308000010		Fan Blade, Black   (Replaces: 218649000)			Immediately	$ 49.03
6	218448302		Cover, Almond, Lwr Hinge Hole		Appelez-nous	-
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
10	218832002		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
13	218878901		Motor-evap Fan		Appelez-nous	-
17	218725601		Trough-drain		Appelez-nous	-
18	218865000		Support-evap Cover,(2) ,w/retainer Clip		Appelez-nous	-
19	5303001198		Tube-rubber		Appelez-nous	-
22	215774911		Plug-button, Almond, Upr Hinge Holes		Appelez-nous	-
23	5303269702		Tube-drain, W/seal Ring				$ 104.63
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	215774100		Spout-drain Tube, W/mounting Pins		Appelez-nous	-
29	5308011326		Washer, .34 X .62 X .02, Nylon				$ 9.87
30	5304409595		Bracket-lower Hinge				$ 229.11
32	215217703		Plug-button,almond, Cabinet Base, (2)		Appelez-nous	-
35	218220102		Bracket-ctr Hinge, Almond		Appelez-nous	-
36	218251300		Pin-center Hinge				$ 59.54
37	5303321082		Trim-cabinet Corner, Almond		Appelez-nous	-
38	3206100		Bracket-upper Hinge		Appelez-nous	-
40	3206105		Cover-upper Hinge, Almond				$ 60.90
42	215880100		Screw-hinge Mtg, Hex Washer Head, 1/4-20 X 0.685, (2)		Appelez-nous	-
43	218724000		Roller Assy, Front, Complete				$ 227.18
44	5303283014		Roller Assy, Metal Housing		Appelez-nous	-
56	218220300		Pin-lower Hinge		Appelez-nous	-
59	240442708		Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin   (Replaces: 218188000)				$ 8.34
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
98	215099711		Plug-button,almond		Appelez-nous	-
100	5303288973		Support-pan Cover				$ 24.41
*92281	218931001		Clamp-motor Wiring,nylon ,w/adhesive Tape		Appelez-nous	-
*92282	215882300		Tapping Plate,lower Hinge ,(2)		Appelez-nous	-
*92283	218368500		Shim, Lower Hinge				$ 12.58
*92284	5303209814		Nut,``u`` Type ,8-15(a) ,fan Mtr Mtg		Appelez-nous	-
*92285	5304500407		Grommet, Shelf Mtg, Lh   (Replaces: 5308009759)			Immediately	$ 6.38
*92286	3051070		Screw,hex Washer Head ,10-24 X 0.438 ,special		Appelez-nous	-
*92287	5308000186		Washer, .34 X .62 X .10, Nylon			Immediately	$ 6.02
*92288	5308009761		Bolt-roller, Adj				$ 18.61
*92289	5308009790		ú Spring-roller Adj				$ 4.30
*92290	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
*92291	5308016571		Plug-button,cab Liner Holes				$ 4.79
*92292	5303305325		Paint, Touch, Up, Almond		Appelez-nous	-
12A	215079000		Plug-harness Hole, Round				$ 8.61
12B	215079100		Plug-wtr Inlet Tube, Round				$ 6.25
14A	5303205119		Bracket-motor Mtg, Rear		Appelez-nous	-
14B	5309918806		Switch-light/lamp			Immediately	$ 21.97
41A	5304509705		Grommet, Shelf/rod Mtg, Rh   (Replaces: 5303001609)				$ 10.01
41B	5308000039		Screw		Appelez-nous	-
