SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - Shelves


05 - System

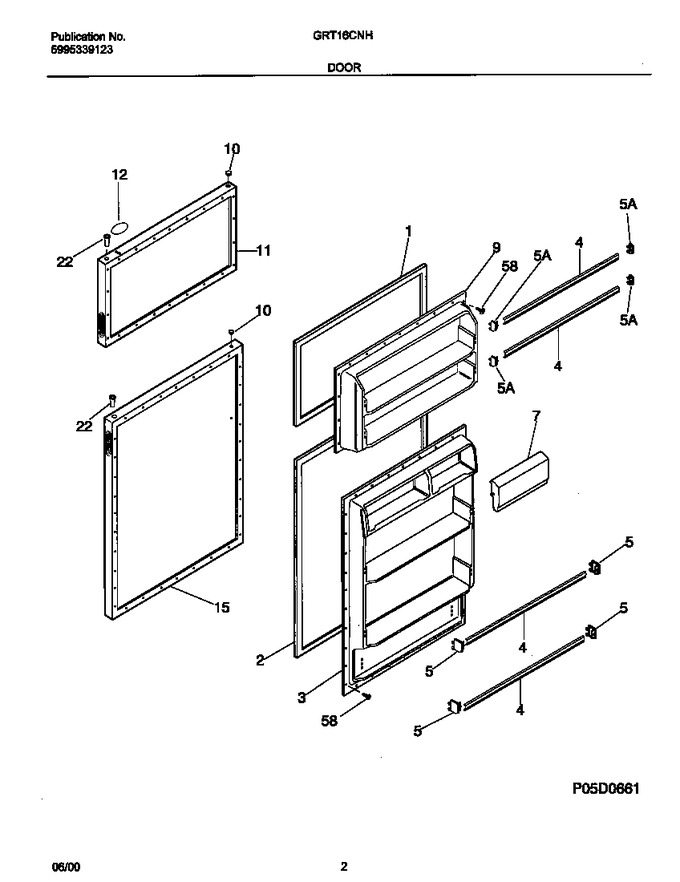

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308007123		Gasket-frzr Door, White, Magnetic				$ 188.54
2	218730603		Gasket-refr Door, White, Magnetic   (Replaces: 5318680311)				$ 62.07
3	218359001		Panel-inner Door, Refr		Appelez-nous	-
4	215366002		Rack-door,22.20`` X 1.62``   (Replaces: 218027017)			Immediately	$ 65.83
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
7	218287801		Door-dairy, 10.71`` Wide, White, No Graphics				$ 41.48
9	218358801		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	218615701		Panel-frzr Door, White, With Handles &, Foam Insulation		Appelez-nous	-
12	218531605		Nameplate Assy, White		Appelez-nous	-
15	218615801		Panel-refr Door, White, With Handles, Insul, & Brace		Appelez-nous	-
22	218519300		Bearing-hinge				$ 14.60
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
*34200	218467401		Frame-nameplate, White		Appelez-nous	-
*34202	218468023		Label-nameplate,white		Appelez-nous	-
*34204	218468100		Magnet-nameplate		Appelez-nous	-
*34205	5315340712		Tape,adhesive ,12`` Long ,foam ,double-faced		Appelez-nous	-
*34206	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
