SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet

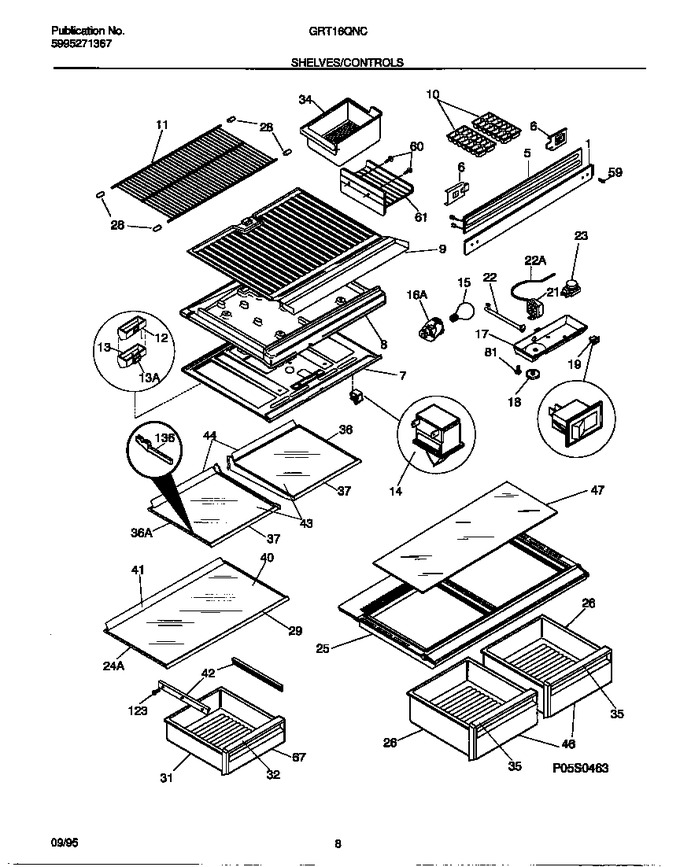

04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218252501		Mullion, White		Appelez-nous	-
5	218271401		Heater-mullion				$ 135.66
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
9	3206187		Bottom Panel - Frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
13	5303200590		Extension, Air Deflector, With Insulation		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
22	3018891		Housing-temp Sensor, Plastic		Appelez-nous	-
22	5303916855		Insulator, Plastic Tubing, Temp Sensor				$ 60.96
24	218276002		Frame-shelf, Sliding, Full Width, W/hanger Tabs				$ 107.83
25	218314102		Cover-crisper Pan, With Beam				$ 221.99
26	3206180		Pan - Crisper				$ 155.70
28	3201150		End Cap-shelf,protector				$ 4.57
29	215919452		Trim-glass Shelf, 22.06``, Front		Appelez-nous	-
31	3206209		Pan-meat				$ 183.70
32	5303310714		Trim-meat Pan		Appelez-nous	-
34	5303212918		Container-ice				$ 104.66
35	5303310713		Trim-crisper Pan		Appelez-nous	-
36	218310302		Frame-shelf, Half-cantilever, Lh, Rail On Rs		Appelez-nous	-
36	218310301		Frame-shelf, Half-cantilever, Rh, Rail On Ls		Appelez-nous	-
37	215919453		Trim-glass Shelf, 10.56``, Front		Appelez-nous	-
40	218390518		Glass-shelf, 22.00`` X 13.94``		Appelez-nous	-
41	215919839		Trim-glass Shelf, 21.88`` Rear				$ 59.38
43	218390519		Glass-shelf, 10.56`` X 13.63``		Appelez-nous	-
44	215919842		Trim-glass Shelf, 10.50``, Rear		Appelez-nous	-
46	5303310720		Front-crisper Pan		Appelez-nous	-
47	215723587		Insert-pan Cover, Glass		Appelez-nous	-
59	240442708		Screw-hinge/mullion, Cr Pan Head, 10-32 X 5/8, Thread Fo   (Replaces: 218188000)				$ 8.34
60	5304455852		Screw, Hex Washer Head, 8-15a X 1.00   (Replaces: 5303207328)				$ 12.76
61	215781501		Shelf-ice Tray, Wire Accessory - Not Original Equipment				$ 136.19
67	5303310722		Front-meat Pan		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger,8-10 X 7/16   (Replaces: 215005100)				$ 14.89
136	218553900		Stop Clip-shelf		Appelez-nous	-
11A	5303283107		Shelf-freezer, Fixed/flat, Full Width, Wire				$ 155.82
11B	218159700		Spacer, Frzr Shelf (not Illustrated)		Appelez-nous	-
12A	5308014667		Deflector-air, W/seal		Appelez-nous	-
12B	5303001449		Seal, Air Deflector (not Illustrated)				$ 2.12
17A	5303307349		Box, Control		Appelez-nous	-
17B	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
21A	5303305486		Control-temperature				$ 122.43
21B	5303001260		Screw				$ 6.73
23A	215846602		Timer   (Replaces: 5300187484)			Immediately	$ 28.20
23B	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
42A	5303305309		Hanger-meat Pan, Lh		Appelez-nous	-
42B	5303305310		Hanger-meat Pan, Rh		Appelez-nous	-
7A	3206185		Top Panel - Refr		Appelez-nous	-
7B	5303001380		Screw		Appelez-nous	-
8A	3206186		Divider, Styrofoam		Appelez-nous	-
8B	3018900		Harness, Wiring, Control/divider (not Illustrated)		Appelez-nous	-
8C	3205266		Protector-edge, Wiring Harness (not Illustrated)				$ 80.09

    View Diagram in Separate Window       Print Part List
