SELECT A DIAGRAM

01 - Cooktop, Literature

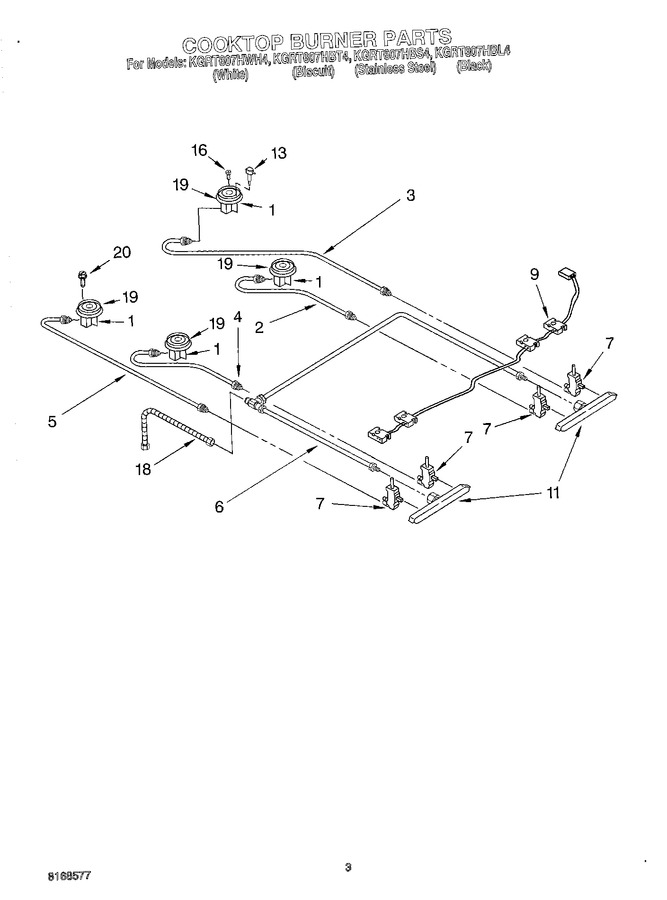

02 - Cooktop Burner


03 - Control Panel


04 - Door And Drawer


05 - Oven Chassis


06 - Broiler And Oven Burner


07 - Oven


08 - Rear Chassis, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9754189		Burner Base W/orifices (12k Rr)		Appelez-nous	-
1	9754192		Burner Base W/orifices (14k Lf)		Appelez-nous	-
1	9754183		Burner Base W/orifices (6k Rf-lr)		Appelez-nous	-
2	9753610		Tubing, Burner (rf)		Appelez-nous	-
3	9753611		Tubing, Burner (rr)		Appelez-nous	-
4	9753608		Tubing, Burner (lf)		Appelez-nous	-
5	9753609		Tubing, Burner (lr)		Appelez-nous	-
6	9754148		Tubing, Manifold		Appelez-nous	-
7	9753045		Valve, Burner (6k Rf-lr Red Stem)				$ 120.98
7	3185829		Valve, Burner (bolt, Gas Valve (4))		Appelez-nous	-
7	9753614		Valve, Burner (14k Lf Plain Stem)				$ 122.08
7	9753044		Valve, Burner (12k Rr Black Stem)		Appelez-nous	-
9	9752994		Spark Switch & Harness Assembly				$ 91.19
11	9754116L		Manifold (left Hand)		Appelez-nous	-
11	9754116R		Manifold (right Hand)		Appelez-nous	-
13	WP9754215		Electrode   (Replaces: 9754215)			Immediately	$ 47.11
16	WP9753930		Orifice, Burner (14k Lf)   (Replaces: 9753930)				$ 80.19
16	WP9753929		Orifice, Burner (12k Rr)   (Replaces: 9753929)				$ 72.63
16	9753928		Orifice, Burner (6k Rf-lr)				$ 38.86
18	9751854		Tubing, Flex		Appelez-nous	-
19	9754181		Head, Burner (14k - Lf)		Appelez-nous	-
19	WP4455981		Head, Burner (12k - Rr)   (Replaces: 8273214)			Immediately	$ 78.77
19	8273216		Head, Burner (6k - Rf-lr)		Appelez-nous	-
19	9754136		Head, Burner (pad, Burner Ring)				$ 20.15
20	WPW10067840		Screw, 8-18 X 5/8   (Replaces: 8281147)				$ 6.98
