SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

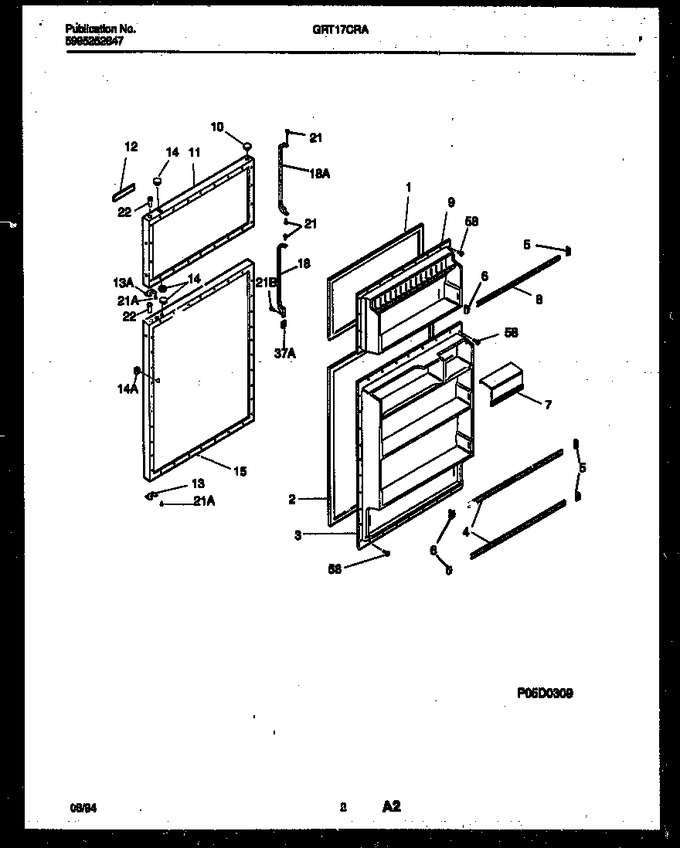

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303288856		Gasket-frzr Door, Almond, Magnetic				$ 72.92
2	218730603		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288857)				$ 62.07
3	5318536101		Panel-inner Door, Refr		Appelez-nous	-
4	215139832		Rack-door		Appelez-nous	-
5	5303007295		Support-door Rack, Rh				$ 32.55
6	5303007297		Support-door Rack, Lh				$ 64.58
7	5303301299		Door-dairy		Appelez-nous	-
8	5303274049		Rack-door		Appelez-nous	-
9	5318536201		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917416		Panel-frzr Door, Almond, W/ Insulation		Appelez-nous	-
12	215731811		Nameplate Assy, Almond, W/mtg Tape		Appelez-nous	-
13	5303212491		Door Stop, Refr		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917414		Panel-refr Door, Almond, W/insulation		Appelez-nous	-
18	215800906		Handle-door, 17.37``, Almond		Appelez-nous	-
21	5303272568		Screw-handle Mtg, Cr Oval Head, 10-24(d) X 5/8, Almond,		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*80243	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	5308000255		Door Stop				$ 42.20
14A	215352211		Plug-button,almond ,refr Door Front ,		Appelez-nous	-
18A	215800904		Handle-door, 17.02``, Almond		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
37A	215480204		Trim-handle, End Cap, Almond, Refr Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
