Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

1 9752980 Shield, Flame Special Order $ 38.26

2 4451583 Assy, Fan Special Order $ 140.53

3 WP3195996 Grill, Broiler   (Replaces: 4457277) Special Order $ 82.63

4 WP3196076 Pan, Broiler   (Replaces: 4457276) Special Order $ 279.38

5 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

5 9757779 Fitting, Broiler Special Order $ 130.68

6 WPW10179152 Rack, Oven   (Replaces: 4448717) In-Stock Immediately $ 107.65

7 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

7 4453625 Element, Broil Appelez-nous -
8 WPW10145744 Pan Support, Bake   (Replaces: 4453957) Special Order $ 183.56

9 W11684507 Screw   (Replaces: 3196385) Special Order $ 12.23

9 8191123 Electrode, Bake   (Replaces: 4454048) Special Order $ 238.90

10 8191123 Burner, Bake Log   (Replaces: 4454047) Special Order $ 238.90

10 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

11 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

11 9752737 Shield, Oven Special Order $ 22.04

12 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

12 4453984 Shield, Bake Flame Appelez-nous -
13 W11684512 Screw   (Replaces: 3400080) Special Order $ 12.69

13 WP9763716 Valve, Assy   (Replaces: 4453999) In-Stock Immediately $ 481.13

14 9756831 Tube, Broil Special Order $ 155.53

15 9757700 Burner, Broil Appelez-nous -
16 W11684507 Screw   (Replaces: 3196385) Special Order $ 12.23

16 WP8054129 Ignitor, Broil   (Replaces: 8054129) In-Stock Immediately $ 123.43

17 4454009 Cover, Ignitor Special Order $ 5.31

17 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

18 WPW10272546 Pan, Oven Bottom   (Replaces: 4453920) In-Stock Immediately $ 190.73

19 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

19 9760777 Element, Convect   (Replaces: 4453650) Special Order $ 245.83

20 9756689 Cover, Fan Appelez-nous -
20 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

21 WP9755542 Probe, Meat   (Replaces: 9755542) In-Stock Immediately $ 82.91

22 3181534 Rack, Roasting Appelez-nous -
23 8186589 Jack, Meat Probe   (Replaces: 9755543) In-Stock Immediately $ 97.22

24 WP9755547 Lockwasher   (Replaces: 9755547) Special Order $ 5.49

25 WP9755546 Nut   (Replaces: 9755546) Special Order $ 6.26


    View Diagram in Separate Window     Print Icon   Print Part List

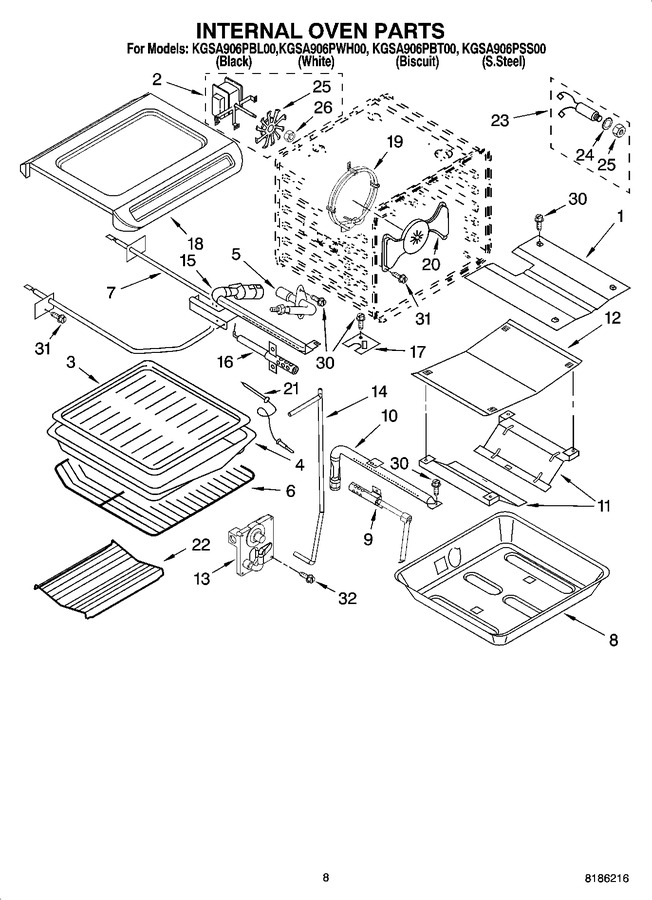

Diagram for KGSA906PBL00
