SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

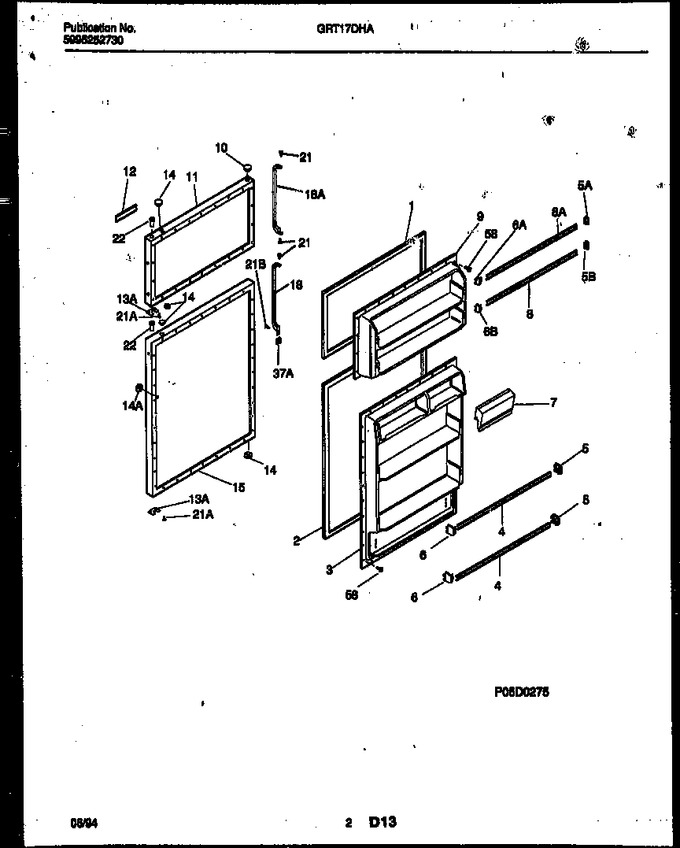

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608911		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730603		Gasket-refr Door, White, Magnetic   (Replaces: 215732412)				$ 62.07
3	5303281227		Panel-inner Door, Refr		Appelez-nous	-
4	5303288927		Rack-door, 23.00`` X 1.62``		Appelez-nous	-
5	3206150		Support-door Rack, Extends 1/81``, Rh				$ 12.58
6	3206151		Support-door Rack, Extends 1.81``, Lh		Appelez-nous	-
7	5303304555		Door-dairy		Appelez-nous	-
8	215366057		Rack-door, 22.62`` X 1.62``		Appelez-nous	-
9	5303276517		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917305		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215966601		Nameplate Assy, White, W/ Mtg Tape		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917377		Panel-refr Door, White, W/insulation		Appelez-nous	-
18	215800903		Handle-door, 17.37``, White		Appelez-nous	-
21	5303272566		Screw-handle Mtg, Cr Oval Head, 10-24(d) X 5/8, White,		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*78177	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	5308000255		Door Stop				$ 42.20
14A	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
18A	215800901		Handle-door, 17.02``, White		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
37A	215480205		Trim-handle, End Cap, White, Refr Door		Appelez-nous	-
5A	3206165		Support-door Rack, Extends 1.06``, Rh			Immediately	$ 8.19
5B	3206161		Support-door Rack, Extends 1.06``, Rh		Appelez-nous	-
6A	3206166		Support-door Rack, Extends 1.06``, Lh			Immediately	$ 9.93
6B	3206162		Support-door Rack, Extends 1.06``, Lh		Appelez-nous	-
8A	5303304556		Rack-door, 22.59`` X 1.12``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
