SELECT A DIAGRAM

01 - Top Mount Refrigerator


02 - Door


03 - Cabinet W/fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608911		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730603		Gasket-refr Door, White, Magnetic   (Replaces: 215732412)				$ 62.07
3	215026201		Panel-inner Door, Refr		Appelez-nous	-
4	218027002		Rack-door, 22.69`` X 1.62``		Appelez-nous	-
5	3206161		Support-door Rack, Extends 1.06``, Rh		Appelez-nous	-
6	3206162		Support-door Rack, Extends 1.06``, Lh		Appelez-nous	-
7	5303304655		Door-dairy		Appelez-nous	-
8	215806308		Rack-door, 22.34`` X 1.12``		Appelez-nous	-
9	5303290026		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917415		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215731801		Nameplate Assy, White W/mtg Tape		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	240494001		Plug-button, White/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917413		Panel-refr Door, White, W/insulation		Appelez-nous	-
18	215800919		Handle-door, 17.37``, White		Appelez-nous	-
21	5303272566		Screw-handle Mtg, Oval Head, 10-24(d) X 5/8, White, Cro		Appelez-nous	-
22	3206153		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
*74000	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	218249001		Door Stop, White, Frzr				$ 82.06
14A	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
18A	215800919		Handle-door, 17.02``, White		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
21C	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
37A	215480205		Trim-hadnle, End Cap, White, Refr Door		Appelez-nous	-
5A	3206156		Support-door Rack, Extends .56``, Rh		Appelez-nous	-
6A	3206157		Support-door Rack, Extends .56``, Lh		Appelez-nous	-

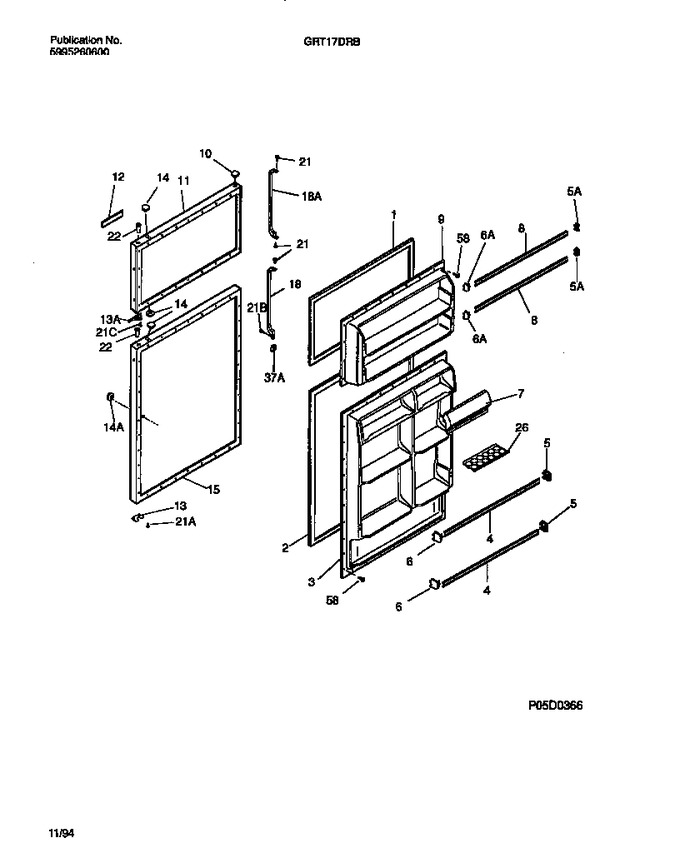

    View Diagram in Separate Window       Print Part List
