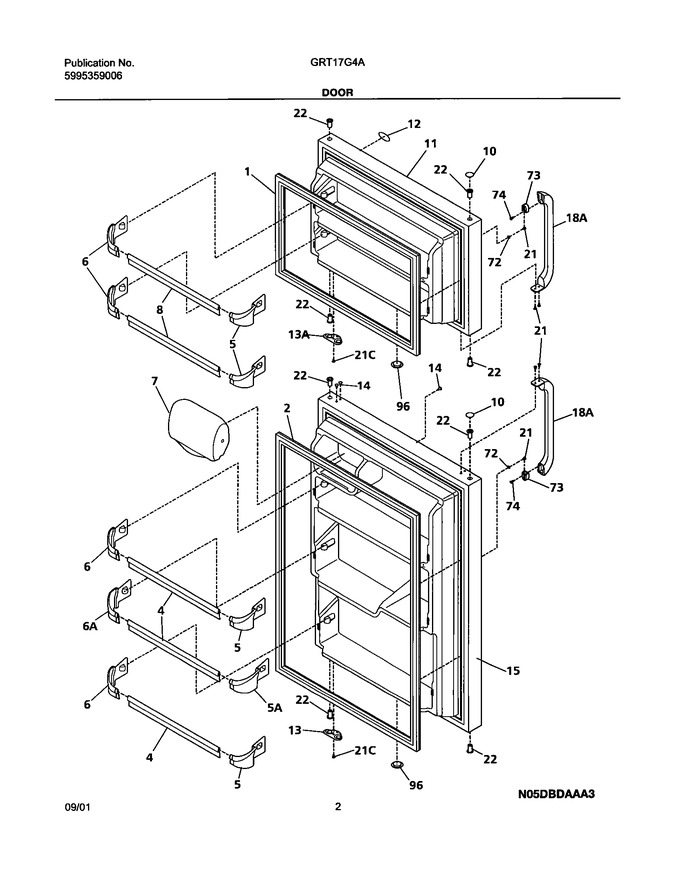

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240331410		Rack-door		Appelez-nous	-
5	240311502		Support-door Rack,2 Liter ,rh			Immediately	$ 11.34
6	240311501		Support-door Rack,2 Liter ,lh			Immediately	$ 11.34
7	240337712		Door-dairy,w/ Graphics ,clear   (Replaces: 240337707)			Immediately	$ 36.41
8	240331411		Rack-door		Appelez-nous	-
10	240381302		Plug-button,hinge Brg Hole ,bisque ,(2)				$ 19.06
11	240420102		Door,frzr ,bisque ,complete Assy		Appelez-nous	-
12	240422302		Label-nameplate,bisque		Appelez-nous	-
13	240312423		Door Stop,bisque ,ref   (Replaces: 240312407)				$ 12.13
14	240494002		Plug-button,bisque				$ 41.12
15	240420202		Door,refr ,bisque ,complete Assy				$ 359.84
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500   (Replaces: 240383401)			Immediately	$ 19.23
22	5304507146		Bearing-hinge,natural Color ,(8)   (Replaces: 240311201)			Immediately	$ 7.59
72	218397000		Button-handle Mtg, Dovetail				$ 16.74
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
96	240345503		Plug-foam Hole,white		Appelez-nous	-
13A	240312408		Door Stop,bisque ,frzr		Appelez-nous	-
18A	218397511		Handle-door,bisque ,w/block & Screw		Appelez-nous	-
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
5A	240331502		Support-door Rack,gallon ,rh			Immediately	$ 13.46
6A	240331501		Support-door Rack,gallon ,lh			Immediately	$ 13.46
F1	241872501		Gasket-frzr Door,white ,magnetic   (Replaces: 240514601)			Immediately	$ 134.19
F2	241872504		Gasket-refr Door,white ,magnetic   (Replaces: 240514604)			Immediately	$ 183.39

    View Diagram in Separate Window       Print Part List
