SELECT A DIAGRAM

01 - Cabinet


02 - Cavity


03 - Control Panel/top Assembly


04 - Door/drawer


05 - Supplemental Information


06 - Wiring Information


07 - Wiring Information

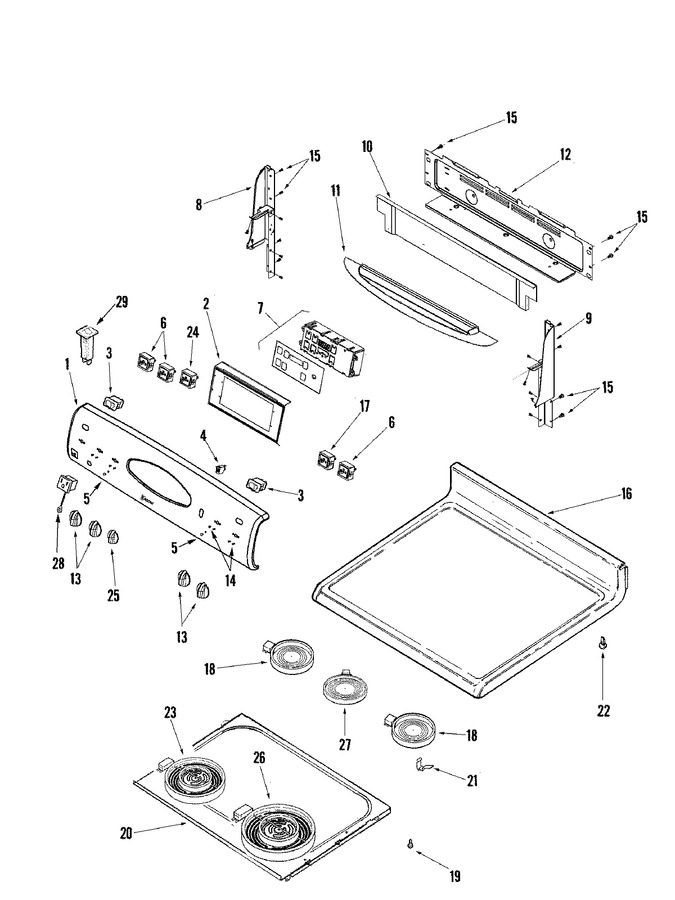

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74009352		Panel, Backguard (blk)	10	Appelez-nous	-
2	74009052		Bracket, Clock	10	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
2	W10124350		Not Required Part Or See Note Not Required-brckt On Panel	10	Appelez-nous	-
3	7403P985-60		Switch, Rocker (blk)   (Replaces: 74008937)	10			$ 82.20
4	WP74004153		Light, Indicator   (Replaces: 74004153)	10		Immediately	$ 8.02
5	WP7730P011-60		Lens, Indicator Light   (Replaces: 7730P011-60)	10			$ 5.16
6	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	10		Immediately	$ 57.78
6	WP74003122		Switch, Infinite (dual)   (Replaces: 74003122)	10		Immediately	$ 73.53
7	74008658		Clock/overlay (blk)	10			$ 330.78
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	74009022		End Cap (rt-blk)	10	Appelez-nous	-
9	74009023		End Cap (lt-blk)	10			$ 31.24
10	74009205		Shield, Vent (blk)	10	Appelez-nous	-
11	74009202		Shield, Heat Visor (blk)	10	Appelez-nous	-
12	74009335		Cover, Backguard Wire	10	Appelez-nous	-
12	74008836		Insulation, Foil (bkgd)	10	Appelez-nous	-
13	74008945		Knob (blk/chr)	10			$ 16.92
14	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 6.26
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	74008556		Top Assembly (blk)	10	Appelez-nous	-
17	WP74008940		Switch, Infinite (flex)   (Replaces: 74008940)	10		Immediately	$ 125.54
18	W10823711		Element (1200w)   (Replaces: 74008568)	10		Immediately	$ 183.95
19	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	10		Immediately	$ 12.62
20	74008900		Bottom, Burner Box	10	Appelez-nous	-
21	74007134		Spring, Element Support   (Replaces: Y04100418)	10			$ 10.51
22	74008761		Spacer, Snap-in	10			$ 7.55
23	W10823692		Element, Dual (2400w)   (Replaces: 74008897)	10		Immediately	$ 204.83
24	74006589		Switch, Infinite (warming)	10	Appelez-nous	-
25	74008948		Knob (blk/chr)	10			$ 68.88
26	W10823713		Element (2700w)   (Replaces: 74008919)	10		Immediately	$ 330.41
27	74008898		Element, Warming	10			$ 73.51
28	71003068		Receptacle, Outlet (blk)	10	Appelez-nous	-
29	71003070		Breaker, Circuit (blk)	10	Appelez-nous	-
29	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
