SELECT A DIAGRAM

01 - Cooktop Parts

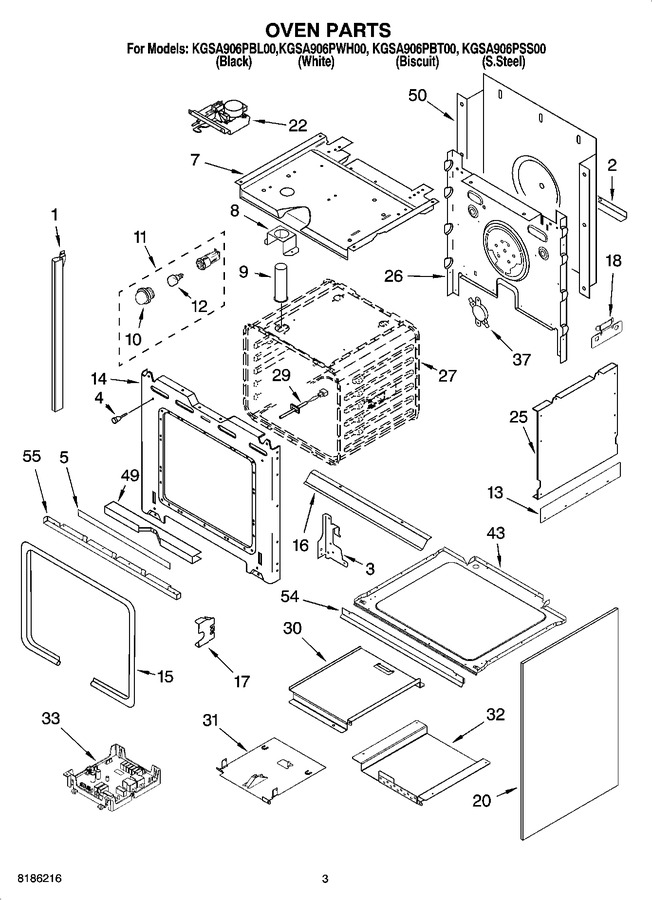

02 - Oven Parts


03 - Door And Drawer Parts


04 - Top Venting Parts


05 - Internal Oven Parts


06 - Cooktop Burner Parts


07 - Triple Crown Burner


08 - Control Panel Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3400832		Trim, Side (left Hand) (screw)   (Replaces: 3400832)			Immediately	$ 6.98
1	9756619WH		Trim, Side (right Hand) (white)		Appelez-nous	-
1	9756619BT		Trim, Side (right Hand) (biscuit)		Appelez-nous	-
1	9756619BL		Trim, Side (right Hand) (black)		Appelez-nous	-
1	9756619SS		Trim, Side (right Hand) (s.steel)		Appelez-nous	-
1	9756620WH		Trim, Side (left Hand) (white)		Appelez-nous	-
1	9756620BT		Trim, Side (left Hand) (biscuit)		Appelez-nous	-
1	9756620BL		Trim, Side (left Hand) (black)		Appelez-nous	-
1	9756620SS		Trim, Side (left Hand) (s.steel)		Appelez-nous	-
2	8053971		Brace, Main Back				$ 7.82
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 107.47
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 103.82
4	4448520		Bumper, Door				$ 19.07
5	9757717		Insulation, Bottom Vent		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	4455865		Top, Chassis		Appelez-nous	-
8	4453761		Bracket, Vent Sprt		Appelez-nous	-
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
9	4453759		Tube, Vent		Appelez-nous	-
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 48.26
13	WP4449743		Screw (4)   (Replaces: 4449743)				$ 6.47
13	9757732		Shield, Heat		Appelez-nous	-
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	WP4450118		Nut   (Replaces: 4450118)				$ 7.16
14	4455612		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 62.78
16	4453951		Deflector, Vent Bottom		Appelez-nous	-
17	4452152		Bracket, Mounting				$ 30.15
18	9757685		Guide, Side Panel				$ 36.23
20	9781907PB		Oven, Side Panel (black)		Appelez-nous	-
20	9781907PW		Oven, Side Panel (white)		Appelez-nous	-
20	9781907PC		Oven, Side Panel (biscuit)		Appelez-nous	-
22	WPW10195934		Latch, Motorized   (Replaces: 8302474)			Immediately	$ 259.79
22	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 129.16
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
26	9759762		Back, Chassis		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 86.25
29	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
30	9756454		Bracket, Goc				$ 68.50
31	9756453		Slide, Goc		Appelez-nous	-
32	3179776		Screw		Appelez-nous	-
32	9756452		Slide. Goc		Appelez-nous	-
33	3179776		Screw		Appelez-nous	-
33	9759562		Central, Appliance		Appelez-nous	-
37	WP8300802		Thermostat (tod) (temp.) Spst   (Replaces: 8300802)			Immediately	$ 113.99
43	4453981		Base, Chassis		Appelez-nous	-
43	9756637		Gasket		Appelez-nous	-
49	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 7.97
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 128.63
54	9756481BL		Vent, Bottom Upper (black)		Appelez-nous	-
54	9756481WH		Vent, Bottom Upper (white)		Appelez-nous	-
54	9756481BT		Vent, Bottom Upper (biscuit)		Appelez-nous	-
54	9756481SS		Vent, Bottom Upper (s. Steel)		Appelez-nous	-
55	9756485BL		Vent, Bottom Lower (black)		Appelez-nous	-
55	9756817		Insulation, Wrap				$ 76.03
55	9756485SS		Trim, Btm Vent (s.steel)		Appelez-nous	-
55	9756470		Insulation, Back				$ 68.08
55	9756485WH		Trim, Btm Vent (white)		Appelez-nous	-
55	9756485BT		Trim, Bottom Vent (biscuit)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
