Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4453931BT Control Panel (biscuit) Appelez-nous -
1 4453931BL Control Panel (black) Special Order $ 173.16

1 4453931SS Control Panel (s.steel) Special Order $ 182.84

1 4453931WH Control Panel (white) Special Order $ 173.16

2 9756559WH Membrane Switch (white) Special Order $ 142.11

2 WP9756559ES Membrane Switch (s.steel)   (Replaces: 9756559ES) In-Stock Immediately $ 308.58

2 9756559BL Membrane Switch (black) Special Order $ 216.11

2 WP9756559BT Membrane Switch (biscuit)   (Replaces: 9756559BT) Special Order $ 334.76

3 9761942 Control, Migration Appelez-nous -
4 9757119 Bracket, Console Appelez-nous -
5 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

6 9757409 Support, Gas Valve Special Order $ 81.65

7 9757787 Bracket, User Interface Appelez-nous -
8 9760457BL Endcap (black Lh) Appelez-nous -
8 9760457WH Endcap (white Lh) Appelez-nous -
8 9760457BT Endcap (biscuit Lh) Appelez-nous -
8 9760456CM Endcap (cashmere Metal Rh) Appelez-nous -
8 9760456BL Endcap (black Rh) Appelez-nous -
8 9760456WH Endcap (white Rh) Appelez-nous -
8 9760456BT Endcap (biscuit Rh) Appelez-nous -
8 9760457CM Endcap (cashmere Metal Lh) Appelez-nous -
9 8285604 Knob (cashmere Metal) Special Order $ 6.23

9 4453911BT Knob (biscuit) Appelez-nous -
9 4453911WH Knob (white) Special Order $ 5.52

9 4453911BL Knob (black) Appelez-nous -
10 WPW10331686 Module, Spark   (Replaces: 9758080) In-Stock Immediately $ 354.47

11 4453912BL Knob (black) Special Order $ 5.52

11 4453912WH Knob (white) Appelez-nous -
11 4453912BT Knob (biscuit) Appelez-nous -
11 4453912CM Knob (cashmere Metal) Special Order $ 23.51

12 9759827 Insert, Membrane Appelez-nous -
13 9780271 Screw Appelez-nous -
14 3196172 Screw In-Stock Immediately $ 11.55

15 WP4449745 Insert, Console (screw)   (Replaces: 4449745) Special Order $ 6.74

15 9759467 Insert, Console (l.hand) Appelez-nous -
15 9759466 Insert, Console (r.hand) Appelez-nous -
242828 Wire (12 Ga. 150 C Black) Appelez-nous -
242822 Wire (14 Ga. 150 C Brown) Appelez-nous -
9757785BT Filler, Counter Top (biscuit) Special Order $ 75.54

9757785BL Filler, Counter Top (black) Special Order $ 102.15

9757785WH Filler, Counter Top (white) Special Order $ 187.25

9757426 Kit, Orifice Special Order $ 36.11

W11447673 Anti-tip Assembly   (Replaces: 9782676) In-Stock Immediately $ 28.64

W10624584 Power Cord   (Replaces: 9758677) Special Order $ 162.49

9756637 Gasket, Chassis Base (65 X 236) Appelez-nous -
9756609 Gasket 19 X 388 Appelez-nous -
WP4448950 Screw, Install (4)   (Replaces: 4448950) Special Order $ 6.80

9759899 Bakeware, 5 Pc Appelez-nous -
242830 Wire (14 Ga. 200 C Brown) Appelez-nous -
814381 Hinge Pin Kit Special Order $ 7.73

WP3400015 Screw, Ground   (Replaces: 3400015) Special Order $ 6.47

4452222 Spacer, Harness Appelez-nous -
4450800 Screw, Ground Special Order $ 11.55

WP112432 Nut   (Replaces: 112432) Special Order $ 7.16

WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

4448664 Clamp Special Order $ 18.35

313660 Clip, Ground Wire Appelez-nous -
9756921 Harness, T.c.b. Special Order $ 236.23

9756554 Harness, Wire Special Order $ 71.03

242823 Wire (14 Ga. 150 C Green) Appelez-nous -
242820 Wire (14 Ga. 150 C Black) Appelez-nous -
72032 Paint, Touch-up 1/2 Oz. (black) In-Stock Immediately $ 18.69

72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 11.07

9756920 Harness, Wire Bake/broil Ignit. Special Order $ 59.10

9760526 Harness, Wire (main) Special Order $ 128.58

242827 Wire (14 Ga. 150 C Yellow) Appelez-nous -
242831 Wire (14 Ga. 200 C Red) Special Order $ 342.23

242825 Wire (14 Ga. 150 C Red) Appelez-nous -
242824 Wire (14 Ga. 150 C Orange) Appelez-nous -
WP261869 Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869) Special Order $ 23.85

261900 Paint, Spray (citrine White) Special Order $ 51.34

350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 34.39

285006 Spray Paint (black) 13 Oz.   (Replaces: 830864) In-Stock Immediately $ 51.34

591014 Adhesive Loctite (1/3 Oz.) Appelez-nous -
WP482338 Sealer, Silastic (3 Oz.)   (Replaces: 482338) In-Stock Immediately $ 57.16

242821 Wire (14 Ga. 150 C Blue) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

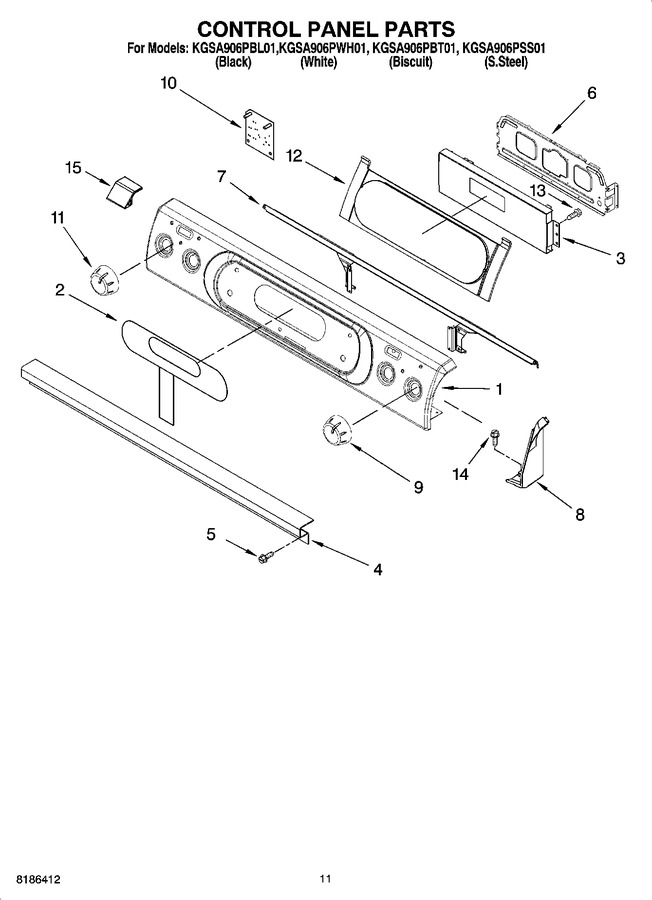

Diagram for KGSA906PSS01
