SELECT A DIAGRAM

01 - Cooktop Parts


02 - Oven Parts


03 - Door And Drawer Parts


04 - Top Venting Parts


05 - Internal Oven Parts


06 - Cooktop Burner Parts

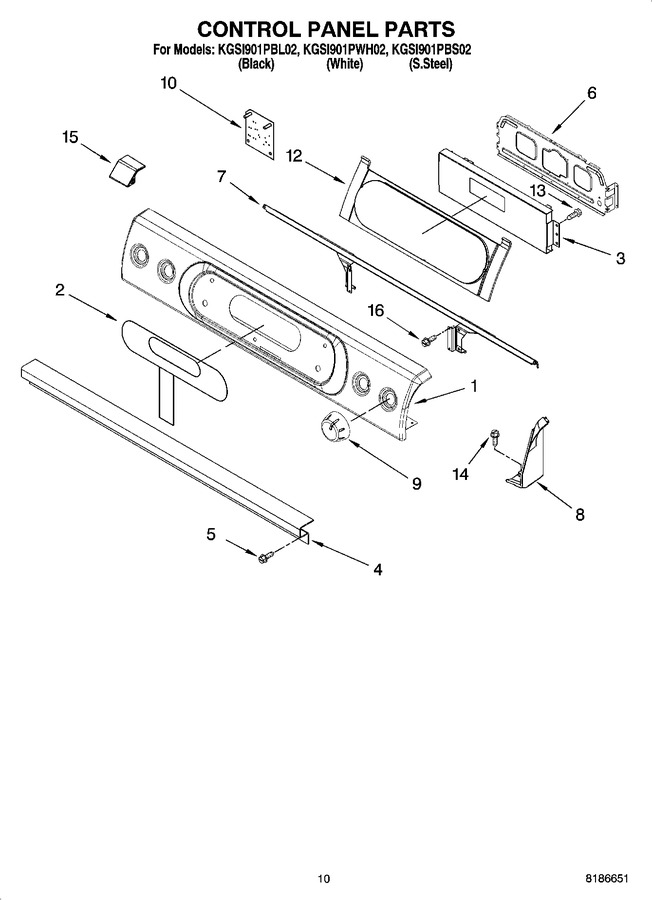

07 - Control Panel Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4453931WH		Control Panel (white)				$ 173.16
1	4453931SS		Control Panel (s.steel)				$ 182.84
1	4453931BL		Control Panel (black)				$ 173.16
2	9756555WH		Membrane Switch (white)		Appelez-nous	-
2	9756555BL		Membrane Switch (black)		Appelez-nous	-
3	9762810		Control, Migration				$ 454.20
4	9757119		Bracket, Console		Appelez-nous	-
5	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
6	9757409		Support, Gas Valve				$ 81.65
7	9757787		Bracket, User Interface		Appelez-nous	-
8	9760457CM		Endcap (cashmere Metal Lh)		Appelez-nous	-
8	9760457WH		Endcap (white Lh)		Appelez-nous	-
8	9760457BL		Endcap (black Lh)		Appelez-nous	-
8	9760456WH		Endcap (white Rh)		Appelez-nous	-
8	9760456BL		Endcap (black Rh)		Appelez-nous	-
8	9760456CM		Endcap (cashmere Metal Rh)		Appelez-nous	-
9	8285604		Knob (cashmere Metal)				$ 6.23
9	4453911WH		Knob (white)				$ 5.52
9	4453911BL		Knob (black)		Appelez-nous	-
10	WPW10331686		Module, Spark   (Replaces: 9758080)			Immediately	$ 354.47
12	9759827		Insert, Membrane		Appelez-nous	-
13	9780271		Screw		Appelez-nous	-
14	3196172		Screw			Immediately	$ 11.55
15	9759467		Insert, Console (l.hand)		Appelez-nous	-
15	9759466		Insert, Console (r.hand)		Appelez-nous	-
16	WP486579		Screw   (Replaces: 311865)				$ 6.61
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	9756920		Harness, Wire Bake/broil Ignit.				$ 59.10
	9756554		Harness, Wire				$ 71.03
	9756892		Harness, Cooktop				$ 49.60
	313660		Clip, Ground Wire		Appelez-nous	-
	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
	WP112432		Nut   (Replaces: 112432)				$ 7.16
	4450800		Screw, Ground				$ 11.55
	4452222		Spacer, Harness		Appelez-nous	-
	WP3400015		Screw, Ground   (Replaces: 3400015)				$ 6.47
	814381		Hinge Pin Kit				$ 7.73
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	WP4448950		Screw, Install (4)   (Replaces: 4448950)				$ 6.80
	9756609		Gasket 19 X 388		Appelez-nous	-
	9756637		Gasket, Chassis Base (65 X 236)		Appelez-nous	-
	W10624584		Power Cord   (Replaces: 9758677)				$ 162.49
	W11447673		Anti-tip Assembly   (Replaces: 9782676)			Immediately	$ 28.64
	9757785WH		Filler, Counter Top (white)				$ 187.25
	9757785BL		Filler, Counter Top (black)				$ 102.15
	W10851603		Kit   (Replaces: 9757427)				$ 104.37
	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 23.85
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	261900		Paint, Spray (citrine White)				$ 51.34
	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)			Immediately	$ 51.34
	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	9760528		Harness, Wire (main)		Appelez-nous	-
