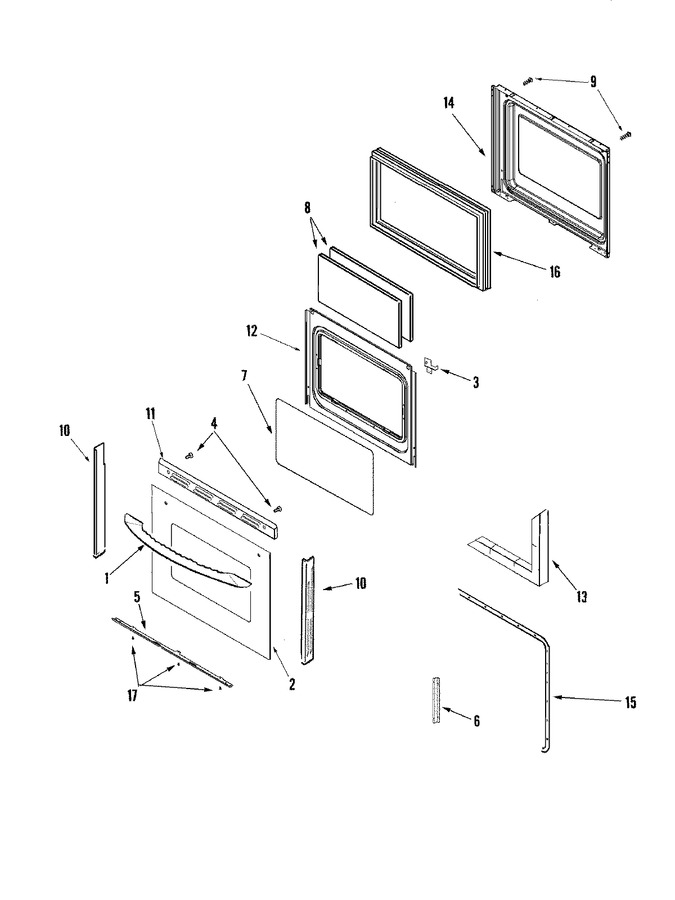

SELECT A DIAGRAM

01 - Body


02 - Control Panel/top Assembly


03 - Door (lower)


04 - Door (upper)


05 - Oven


06 - Supplemental Information


07 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP74011767		Handle, Door (blk)   (Replaces: 74011767)	17			$ 225.61
1	WP74011767		Handle, Door (blk)   (Replaces: 74008941)	10			$ 225.61
1	WP74011767		Handle, Door (blk)   (Replaces: 74010971)	13			$ 225.61
2	12002395		Kit, Door Glass (blk)	10			$ 164.64
3	3801F831-45		Bracket, Door Handle (rt)   (Replaces: 74009698)	10			$ 19.17
3	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
3	7101P208-60		Screw (10abx1/4p Tr Zn)	10			$ 11.92
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
3	WP74006515		Screw 10-32 W/ Washer   (Replaces: 74006777)	10			$ 7.29
3	3801F832-45		Bracket, Door Handle (lt)   (Replaces: 74009699)	10			$ 19.12
4	WP74006515		Screw W/washer (handle Mtg)   (Replaces: 74006635)	10			$ 7.29
4	WP74011675		Handle, Door (wht)   (Replaces: 74011675)	18			$ 226.94
4	WP74011675		Handle, Door (wht)   (Replaces: 74011675)	17			$ 226.94
5	74009686		Support, Glass (blk)	10	Appelez-nous	-
6	74003650		Retainer, Glass	10	Appelez-nous	-
6	W10124350		Not Required Part Or See Note	16	Appelez-nous	-
6	W10124350		Not Required Part Or See Note	17	Appelez-nous	-
7	74003649		Glass, Door	10	Appelez-nous	-
7	W10124350		Not Required Part Or See Note Not Required Part	16	Appelez-nous	-
7	W10124350		Not Required Part Or See Note Not Required Part	17	Appelez-nous	-
8	74003645		Glass, Inner	10		Immediately	$ 162.53
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74009693		Trim, Door (blk-lt)	10	Appelez-nous	-
10	WP98008545		Screw (blk)   (Replaces: 74009537)	10			$ 15.94
10	74009025		Tape, Dbl Sided (blk)	10			$ 8.60
10	74009692		Trim, Door (blk-rt)	10	Appelez-nous	-
11	74009689		Trim, Door Top (blk)	10	Appelez-nous	-
11	74003664		Tape, Foil 29`` X 2``	16	Appelez-nous	-
11	WP98008545		Screw (blk)   (Replaces: 74009537)	10			$ 15.94
12	3601F373-51		Baffle, Oven Door   (Replaces: 74011457)	16			$ 244.22
12	74009502		Baffle, Oven Door	10	Appelez-nous	-
12	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
13	74004569		Insulation, Door (8.5 X 21.5)	10	Appelez-nous	-
14	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
14	74011456		Lining, Door	16	Appelez-nous	-
14	74003642		Lining, Door	10	Appelez-nous	-
14	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	10			$ 9.89
15	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	74003644		Frame, Glass	10	Appelez-nous	-
16	74011458		Bracket, Inner Glass	16	Appelez-nous	-
16	W11233072		Screw, 8 X 1/2   (Replaces: 74002979)	16		Immediately	$ 12.62
