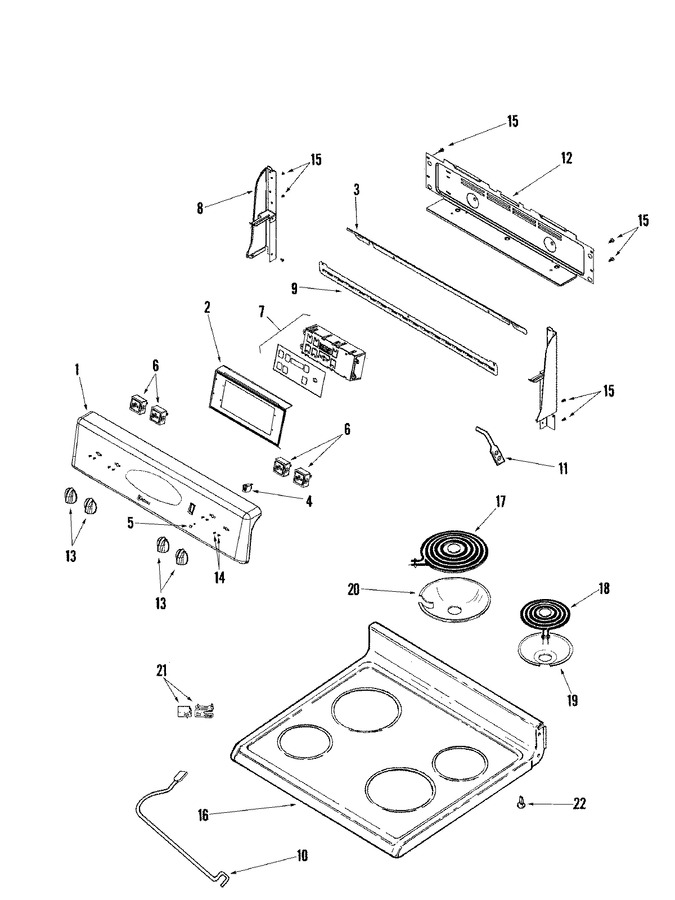

01 - Body
02 - Control Panel/top Assembly
03 - Door (lower)
04 - Door (upper)
05 - Oven
06 - Supplemental Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009973 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 2 | 74009052 | Bracket, Clock | 10 |
|
- | ||||
| 3 | 74009978 | Shield, Wire | 10 |
|
- | ||||
| 4 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 5 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 6 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 6 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 7 | 74009993 | Overlay, H3 Control (wht-elec) | 10 |
|
$ 40.08 | ||||
| 7 | W10769079 | Control, H3 (elec) (Replaces: 74009992) | 10 |
|
$ 436.73 | ||||
| 8 | 74009672 | Support, Backguard (wht-rt) | 10 |
|
- | ||||
| 8 | 74009669 | Support, Backguard (wht-lt) | 10 |
|
- | ||||
| 8 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 10 |
|
$ 11.89 | ||||
| 9 | 74009701 | Shield, Rear Sight | 10 |
|
- | ||||
| 10 | 74001256 | Bushing, Prop Support | 10 |
|
- | ||||
| 10 | 74004084 | Prop Rod | 10 |
|
- | ||||
| 11 | 74003371 | Hinge, Main Top (rod) | 10 |
|
- | ||||
| 11 | 74003975 | Screw (8abx3/8-blk) | 10 |
|
$ 12.02 | ||||
| 12 | 74010804 | Cover, Backguard Wire | 10 |
|
- | ||||
| 12 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 13 | WP74008947 | Knob (wht/chr) (Replaces: 74008947) | 10 |
|
$ 18.70 | ||||
| 14 | 7101P287-60 | Screw, Metal Grounding | 10 |
|
$ 12.03 | ||||
| 15 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 16 | 74009515 | Screw (hex Hd) | 10 |
|
- | ||||
| 16 | 74009990 | Top, Main (wht) | 10 |
|
- | ||||
| 17 | WPW10345410 | Element, Surface (8``) (Replaces: 74007156) | 10 |
|
Immediately | $ 165.96 | |||
| 18 | 74009977 | Shield, Wire & Element | 10 |
|
- | ||||
| 18 | WPW10259868 | Element, Surface (6``) (Replaces: 74007157) | 10 |
|
Immediately | $ 112.28 | |||
| 19 | W10291024 | Bowl, Drip (6`` Gry-solid) (Replaces: 74003440) | 10 |
|
Immediately | $ 49.90 | |||
| 20 | W10291024 | Bowl, Drip (8`` Gry-solid) (Replaces: 74003441) | 10 |
|
Immediately | $ 49.90 | |||
| 21 | 12001676 | Receptacle Assy. | 10 |
|
Immediately | $ 28.45 | |||
| 22 | 74008761 | Spacer, Snap-in | 10 |
|
$ 7.55 |
