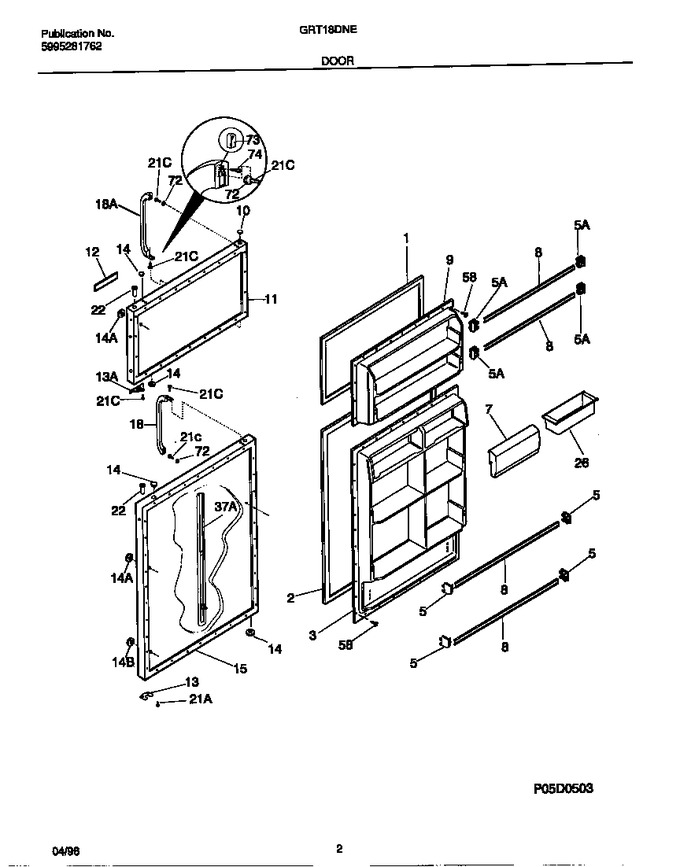

02 - Door
03 - Cabinet
04 - Shelves/controls
05 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608916 | Gasket-frzr Door, White, Magnetic |
|
$ 258.30 | |||||
| 2 | 5303207345 | Gasket-refr Door, White, Magnetic |
|
Immediately | $ 188.19 | ||||
| 3 | 218360001 | Panel-inner Door, Refr |
|
$ 453.98 | |||||
| 5 | 215267701 | Support-door Rack,``2-liter`` ,rh/lh |
|
Immediately | $ 7.79 | ||||
| 5 | 215473602 | Support-door Rack, Rh/lh (Replaces: 215473601) |
|
Immediately | $ 11.58 | ||||
| 7 | 218287809 | Door-dairy, 10.71`` Wide |
|
- | |||||
| 8 | 218027051 | Rack-door, 23.81`` X 1.62`` |
|
- | |||||
| 9 | 218360101 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917795 | Panel-frzr Door, White, With Insulation |
|
- | |||||
| 12 | 218531605 | Nameplate Assy, White |
|
- | |||||
| 13 | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 13 | 218249001 | Door Stop, White, Frzr Section |
|
$ 82.06 | |||||
| 14 | 240494001 | Plug-button, White, Refr Door Front (Replaces: 218110901) |
|
Immediately | $ 18.20 | ||||
| 14 | 218074001 | Plug-button, White, Refr Door Front |
|
$ 13.76 | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917797 | Panel-refr Door, White, W/insul & Brace |
|
- | |||||
| 18 | 218397504 | Handle-door, White, W/block & Screw |
|
$ 135.71 | |||||
| 18 | 218397501 | Handle-door,white ,w/block & Screw |
|
$ 112.04 | |||||
| 21 | 218252201 | Screw, No. 8 Truss Head, 10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 21 | 218251900 | Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed |
|
$ 10.55 | |||||
| 22 | 3206153 | Bearing-hinge |
|
- | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 37 | 218397701 | Trim-handle, 28.33``, White, With Mtg Locks |
|
- | |||||
| 58 | 216858001 | Screw, Truss Head, 8-15a X 0.500 (Replaces: 218699800) |
|
Immediately | $ 10.85 | ||||
| 72 | 218397000 | Button-handle Mtg, Dovetail |
|
$ 16.74 | |||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 45.36 | ||||
| 74 | 215503203 | Screw, Cr Pan Head, 10, 16 X 1/2, Special/hi, Lo (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| *44040 | 215940700 | Lock-handle Trim, Stick-on |
|
- | |||||
| *44041 | 215782300 | Lock-handle Trim,snap-in |
|
$ 34.49 | |||||
| *44042 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
