SELECT A DIAGRAM
01 - Cover
02 - Door
03 - Cabinet

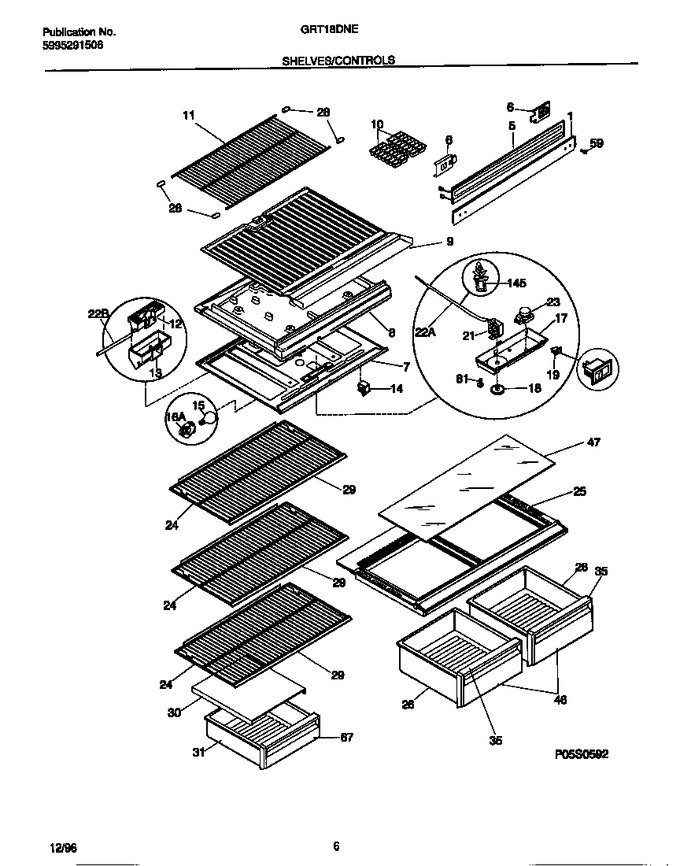

04 - Shelves/controls
05 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218430801 | Mullion, White |
|
- | |||||
| 5 | 218271403 | Heater-mullion |
|
$ 115.07 | |||||
| 6 | 218279800 | Tapping Plate, Mullion Mtg, (2) |
|
- | |||||
| 9 | 3206455 | Panel-bottom, Frzr Section |
|
- | |||||
| 12 | 218730000 | Deflector-air |
|
$ 57.60 | |||||
| 13 | 218631001 | Cover-air Deflector |
|
$ 55.19 | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 18 | 5303311079 | Knob-temp Control |
|
- | |||||
| 19 | 5303286905 | Switch-energy Saver, Rocker Type |
|
$ 27.08 | |||||
| 22 | 5303916855 | Tube, Plastic, Clear, Sensor Sleeve |
|
$ 60.96 | |||||
| 22 | 218731101 | Tube, Pvc, White, @ Air Deflector, Insulator |
|
- | |||||
| 24 | 5303307842 | Shelf, Sliding, Wire |
|
- | |||||
| 25 | 5303207340 | Cover-crisper Pan, With Beam, Less Insert |
|
$ 265.80 | |||||
| 26 | 3206438 | Pan-crisper |
|
Immediately | $ 227.80 | ||||
| 28 | 3201150 | End Cap-shelf,protector |
|
$ 4.57 | |||||
| 29 | 218489618 | Trim-shelf, 24.92``, Front |
|
- | |||||
| 30 | 5303285319 | Cover-meat Pan |
|
$ 100.13 | |||||
| 31 | 3206209 | Pan-meat |
|
$ 183.70 | |||||
| 35 | 5303310712 | Trim-crisper Pan |
|
$ 43.47 | |||||
| 46 | 5303310711 | Front-crisper Pan |
|
- | |||||
| 47 | 215723596 | Insert-pan Cover, Glass |
|
- | |||||
| 59 | 240442708 | Screw, Pan Head, 10-32 X 0.625, Hinge/mullion, Thread Fo (Replaces: 218188000) |
|
$ 8.34 | |||||
| 67 | 5303310722 | Front-meat Pan |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 145 | 218660800 | Clip, Plastic, Temp Sensor Mtg, Snap-in |
|
- | |||||
| 10A | 215667501 | Tray-ice, Plastic |
|
Immediately | $ 6.07 | ||||
| 10B | 5303001324 | Tray-ice, Plastic, (2) |
|
- | |||||
| 11A | 5303288242 | Shelf, Freezer, Fixed/flat, Full Width, Wire |
|
$ 403.31 | |||||
| 11B | 5303299664 | Spacer-shelf (not Illustrated) |
|
$ 24.10 | |||||
| 17A | 5303321455 | Control Box |
|
$ 46.16 | |||||
| 17B | 5308016567 | Nut, Anchor (not Illustrated) |
|
- | |||||
| 21A | 5304404821 | Control-temperature (Replaces: 5303321453) |
|
Immediately | $ 164.57 | ||||
| 21B | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 215846602 | Timer (Replaces: 215267800) |
|
Immediately | $ 28.20 | ||||
| 23B | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 7A | 218740500 | Panel-top, Refr Section |
|
- | |||||
| 7B | 5303001380 | Screw |
|
- | |||||
| 8A | 3206456 | Divider, Styrofoam |
|
- | |||||
| 8B | 3018900 | Harness, Wiring, Control/divider (not Illustrated) |
|
- |
