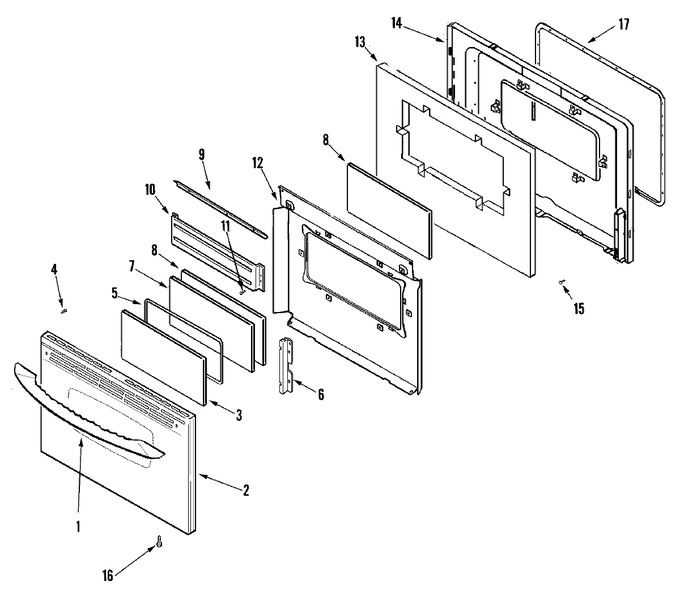

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74011777		Handle, Door (blk)	12			$ 210.30
1	74011777		Handle, Door (blk)   (Replaces: 74011108)	10			$ 210.30
2	74009703		Panel, Door (stl)	10	Appelez-nous	-
2	74009702		Insulation, Oven Door	10	Appelez-nous	-
2	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
3	74010021		Glass, Oven Door (stl)	10	Appelez-nous	-
3	74010298		Insulation, Oven Door (foil)	10	Appelez-nous	-
4	WP74006515		Screw W/washer (handle Mtg)   (Replaces: 74006635)	10			$ 7.29
4	WP74006515		Screw, Handle Mounting   (Replaces: 74011674)	12			$ 7.29
5	7201P017-60		Gasket, Window	10			$ 52.69
6	74003048		Retainer, Glass	10	Appelez-nous	-
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	74002002		Glass, Inner	10			$ 62.17
8	74003320		Glass, Inner	10			$ 86.35
9	74004902		Baffle, Auxiliary	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74005458		Baffle, Door (secondary)	10	Appelez-nous	-
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	74009528		Baffle, Oven Door	10	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
13	74001842		Insulation, Door	10	Appelez-nous	-
14	74004972		Lining, Oven Door	10	Appelez-nous	-
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
