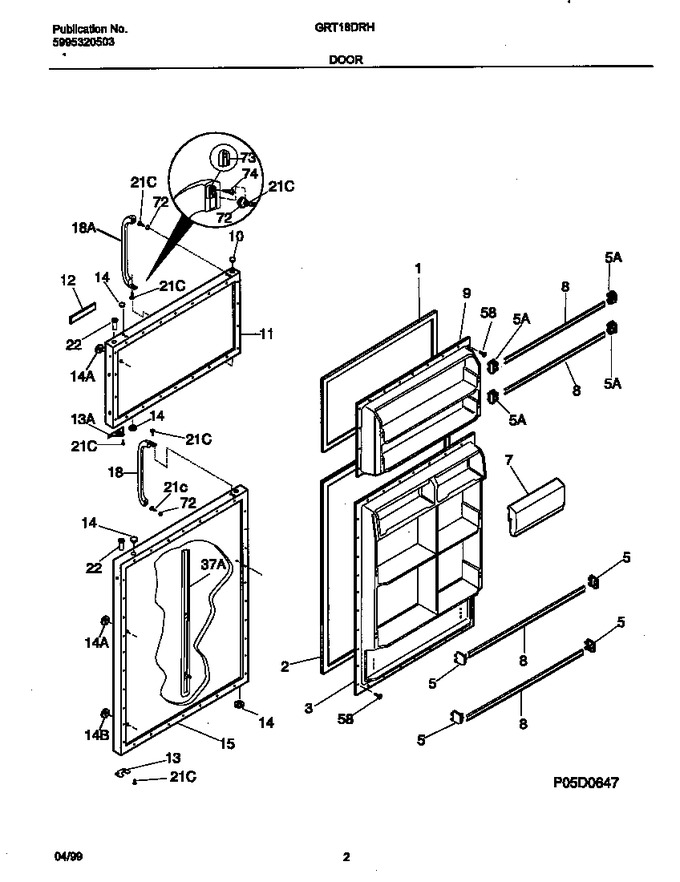

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608906 | Gasket-frzr Door, Almond, Magnetic |
|
- | |||||
| 2 | 5303207345 | Gasket-refr Door, Almond, Magnetic (Replaces: 218730606) |
|
Immediately | $ 188.19 | ||||
| 3 | 218360001 | Panel-inner Door, Refr |
|
$ 453.98 | |||||
| 5 | 215267701 | Support-door Rack,``2-liter`` ,rh/lh |
|
Immediately | $ 7.79 | ||||
| 5 | 215473602 | Support-door Rack,rh/lh |
|
Immediately | $ 11.58 | ||||
| 7 | 218287809 | Door-dairy, 10.71`` Wide |
|
- | |||||
| 8 | 218027051 | Rack-door, 23.81`` X 1.62`` |
|
- | |||||
| 9 | 218360101 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5303917796 | Panel-frzr Door, Almond, With Insulation |
|
- | |||||
| 12 | 218531606 | Nameplate Assy, Almond |
|
- | |||||
| 13 | 218800300 | Door Stop,plated |
|
- | |||||
| 13 | 218249002 | Door Stop, Almond, Frzr Section |
|
$ 47.88 | |||||
| 14 | 218110902 | Plug-button, Almond, Refr Door Front, Upper |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond |
|
- | |||||
| 14 | 218074002 | Plug-button, Almond, Refr Door Front, Lower |
|
- | |||||
| 15 | 5303917798 | Panel-refr Door, Almond, W/insul & Brace |
|
- | |||||
| 18 | 218397505 | Handle-door, Almond, W/block & Screw |
|
- | |||||
| 18 | 218397502 | Handle-door, Almond, W/block & Screw |
|
- | |||||
| 21 | 218252201 | Screw,8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 22 | 218519300 | Bearing-hinge |
|
$ 14.60 | |||||
| 37 | 218397702 | Trim-handle, 28.33``, Almond, With Mtg Locks |
|
- | |||||
| 58 | 216858001 | Screw, Truss Head, 8-15a X 0.500 (Replaces: 218699800) |
|
Immediately | $ 10.85 | ||||
| 72 | 218397000 | Button-handle Mtg, Dovetail |
|
$ 16.74 | |||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 45.36 | ||||
| 74 | 215503203 | Screw,cr Pan Hd ,10-16 X 0.500 ,spec/hi-lo (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| *12480 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 37A | 215782300 | Lock-handle Trim,snap-in |
|
$ 34.49 | |||||
| 37B | 215940700 | Lock-handle Trim, Stick-on |
|
- |
