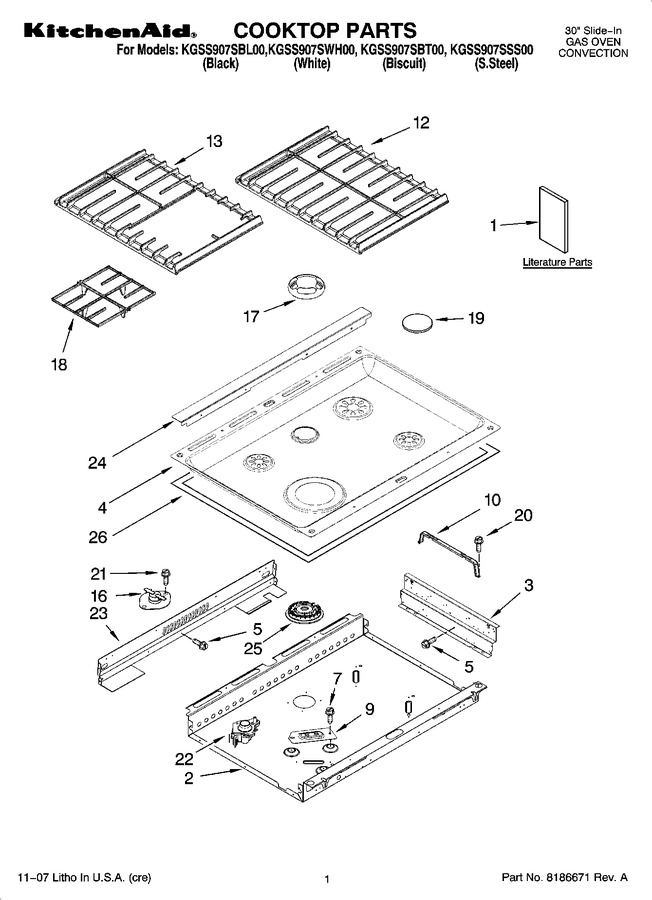

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9759133 | Safecooking Tips |
|
- | |||||
| 1 | W10075750 | Installation Instructions |
|
- | |||||
| 1 | 9763467 | Guide Easy Set |
|
- | |||||
| 1 | 9763457 | Use & Care Guide |
|
- | |||||
| 1 | 9762784 | Tech Sheet (english) |
|
- | |||||
| 1 | W10065210 | Tech Sheet (french) |
|
- | |||||
| 1 | 9757680 | Anti-tip Instruct. |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips |
|
- | |||||
| 2 | W10110471 | Burner Box |
|
- | |||||
| 3 | 9761784 | Bracket, Mounting |
|
- | |||||
| 4 | W10106260 | Cooktop (biscuit) |
|
- | |||||
| 4 | W10106270 | Cooktop (white) |
|
- | |||||
| 4 | W10106250 | Cooktop (black) |
|
- | |||||
| 5 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 7 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 7.15 | ||||
| 9 | 9763445 | Bracket, Burner |
|
- | |||||
| 10 | 9756821 | Support, Wiring |
|
- | |||||
| 12 | 9761555SD | Grate, Burner (satin Cumberland) |
|
$ 106.22 | |||||
| 12 | 9761555CB | Grate, Burner (coal Black) |
|
$ 191.98 | |||||
| 12 | 9761555SN | Grate, Burner (satin Moleskin) |
|
- | |||||
| 13 | 9761556CB | Grate, Brnr (tcb) (coal Black) |
|
$ 112.08 | |||||
| 13 | 9761556SD | Grate, Brnr (tcb) (satin Cumberland) |
|
$ 116.91 | |||||
| 13 | 9761556SN | Grate, Brnr (tcb) (satin Moleskin) |
|
- | |||||
| 16 | WP9759944 | Thermostat (60c) (Replaces: 9759944) |
|
Immediately | $ 121.57 | ||||
| 17 | 9760225BT | Vent, Center (biscuit) |
|
- | |||||
| 17 | 9760225WH | Vent, Center (white) |
|
$ 51.12 | |||||
| 17 | 9760225BL | Vent, Center (black) |
|
$ 39.30 | |||||
| 18 | 9761557SD | Grate, Insert (tcb) (satin Cumberland) |
|
$ 76.15 | |||||
| 18 | WP9761557CB | Grate, Insert (tcb) (coal Black) (Replaces: 9761557CB) |
|
Immediately | $ 153.36 | ||||
| 18 | 9761557SN | Grate, Insert (tcb) (satin Moleskin) |
|
- | |||||
| 19 | 9761563SD | Cap, Burner 12.5k (rr) (satin Cumberland) |
|
$ 111.47 | |||||
| 19 | 9761563SN | Cap, Burner 12.5k (rr) (satin Moleskin) |
|
$ 114.41 | |||||
| 19 | 9761563CB | Cap, Burner 12.5k (rr) (coal Black) |
|
Immediately | $ 92.83 | ||||
| 19 | WP9761562SD | Cap, Burner 6k (rf, Lr) (satin Cumberland) (Replaces: 9761562SD) |
|
$ 115.88 | |||||
| 19 | 9761562SN | Cap, Burner 6k (rf, Lr) (satin Moleskin) |
|
$ 102.15 | |||||
| 19 | WP8284669 | Cap, Burner 6k (rf, Lr) (coal Black) (Replaces: 8284669) |
|
Immediately | $ 64.79 | ||||
| 20 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 21 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 22 | WPW10128446 | Orifice Holder (small (2)) (Replaces: W10110375) |
|
Immediately | $ 97.44 | ||||
| 22 | W10110376 | Orifice Holder (large) |
|
- | |||||
| 23 | 9759627 | Cover, Cktp Rear |
|
$ 67.22 | |||||
| 24 | WP9763436 | Cover, Top Rear (Replaces: 9763436) |
|
$ 127.77 | |||||
| 25 | WPW10406243 | Head, Burner (small (2)) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 25 | WPW10406797 | Head, Burner (large) (Replaces: 8286182) |
|
$ 79.64 | |||||
| 26 | W10109920 | Gasket (tape) |
|
$ 43.42 |
