01 - Body
02 - Control Panel/top Assembly
03 - Door (lower)
04 - Door (upper)
05 - Oven
06 - Supplemental Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

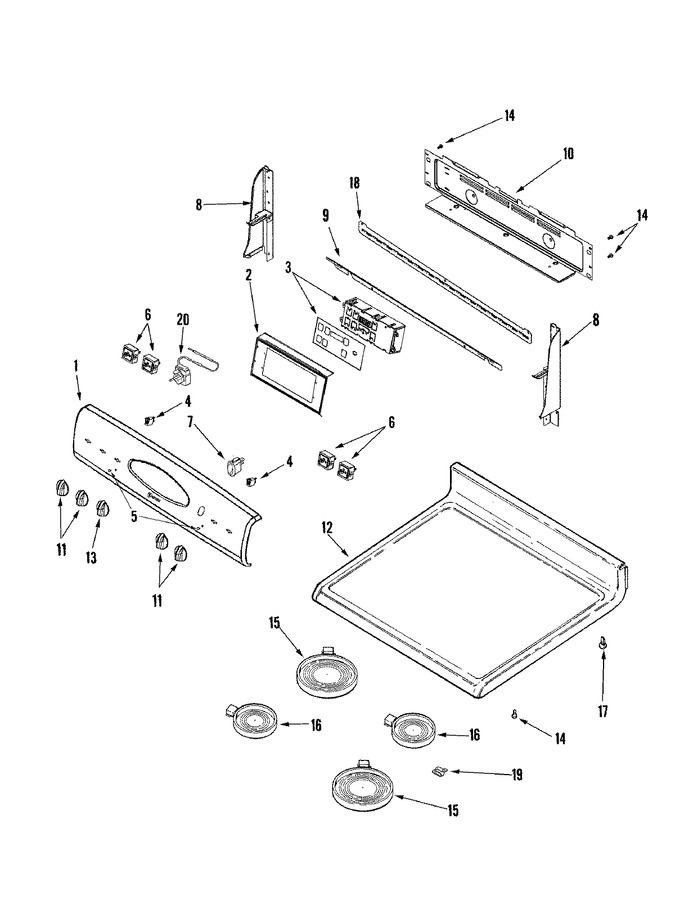

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74011361 | Panel, Backguard (wht) | 10 |
|
- | ||||
| 2 | W11233072 | Screw, (no.8x1/2``pph) (Replaces: 74009268) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 74009052 | Bracket, Clock | 10 |
|
- | ||||
| 3 | 74011393 | Clock W/overlay (wht) | 10 |
|
- | ||||
| 4 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 5 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 6 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 6 | 7101P280-60 | Screw W/washer (blk) | 10 |
|
- | ||||
| 6 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 7 | WP74010226 | Switch, Rocker (wht) (Replaces: 74008938) | 10 |
|
$ 86.45 | ||||
| 8 | WP98008544 | Screw (wht) (Replaces: 74009540) | 10 |
|
$ 11.89 | ||||
| 8 | 74010713 | Support, Backguard (lt-wht) | 10 |
|
- | ||||
| 8 | 74010212 | Support, Backguard (rt-wht) | 10 |
|
- | ||||
| 8 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 9 | 74009978 | Shield, Wire | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 74010935 | Cover, Rear Wire | 10 |
|
- | ||||
| 10 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | WP74008947 | Knob (wht/chr) (Replaces: 74008947) | 10 |
|
$ 18.70 | ||||
| 12 | 74011061 | Top, Main Asy. (wht) | 10 |
|
- | ||||
| 13 | 74008950 | Knob (wht/chr) | 10 |
|
$ 67.52 | ||||
| 14 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | W10823715 | Element (2500w) (Replaces: 74009743) | 10 |
|
$ 315.14 | ||||
| 16 | W10823711 | Element (1200w) (Replaces: 74008568) | 10 |
|
Immediately | $ 183.95 | |||
| 17 | W11189172 | Glide, Main Top (Replaces: 74004558) | 10 |
|
Immediately | $ 15.09 | |||
| 18 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 18 | 74009701 | Shield, Rear Sight | 10 |
|
- | ||||
| 19 | 74003072 | Support, Ceramic Element | 10 |
|
- | ||||
| 20 | 7404P139-60 | Thermostat (Replaces: 74011367) | 10 |
|
- |
